TG, TH and Heaters with BSC pcb's Zone Instructions
These instructions are relevant for any Braemar ducted heater using the BSC pcb's (TG, TH).
Also TE heaters that have fitted the SPI to BSC conversion kit and replaced the original zone kit with either:

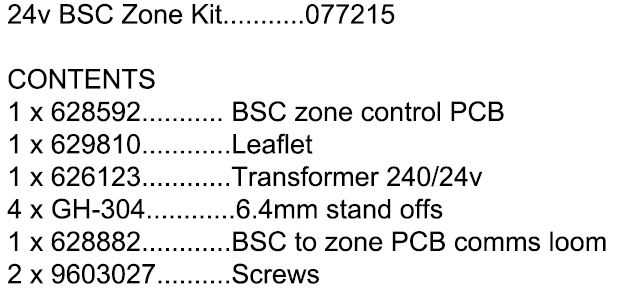

Kit# 077215 - 24v BSC Zone Kit or

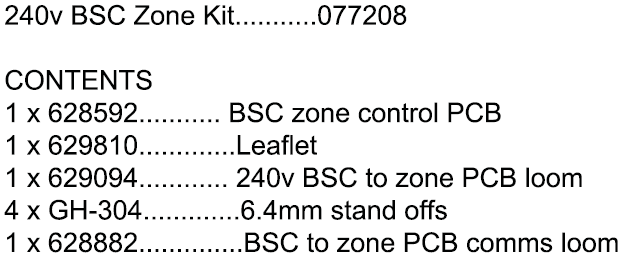

Kit# 077208 - 240v BSC Zone Kit
Attachments included:
TH Zoning & control training

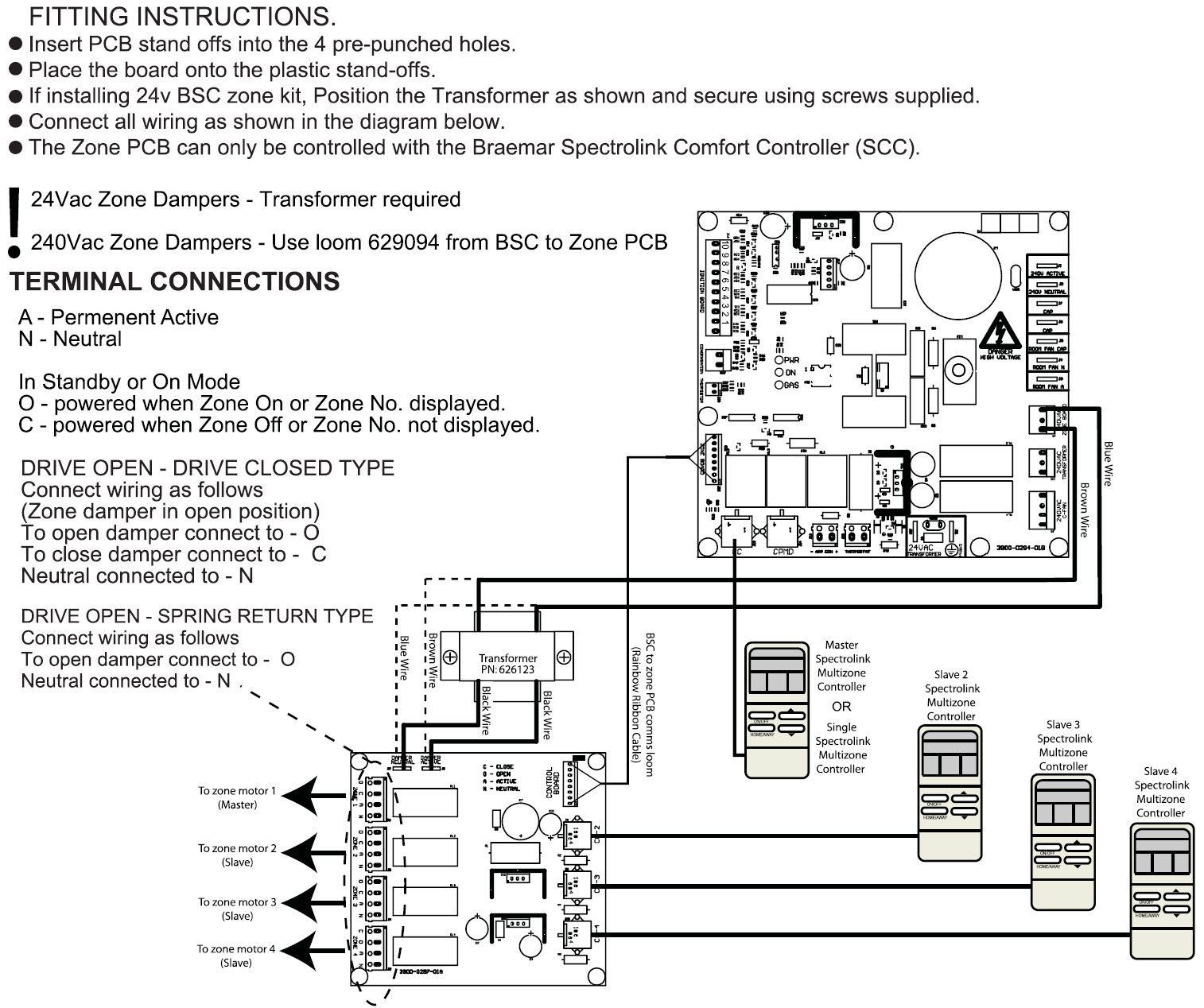

TG TH BSC PCB Zone Kit Instructions

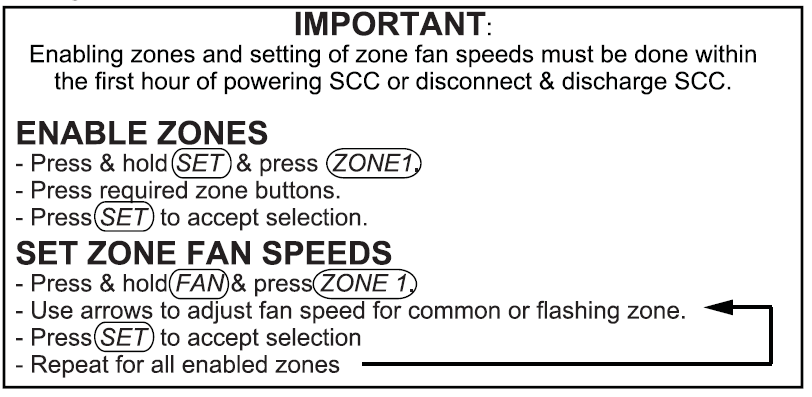

SCC Spectronlink System Setup Procedure
SCC Spectrolink Home Owners Zoning Supplement
SCC Spectrolink discharging capacitor during system setup
A0608 Spectrolink CC can control the following Braemar Products
Regards
Seeley International
Technical Support
