Attached documents:
MaglQtouch system options 864860-G
RF MaglQtouch installation manual 861794-E
- The wireless receiver can communicate with 2x Wireless Smart Controllers within the system. During normal operation whichever wall controller is used last will take control of the system. See page 13 of installation manual for pairing second controller instructions.
- Operates the same as current MagIQtouch wall controller.
- Uses the same wall bracket mounting as current wall controller version.

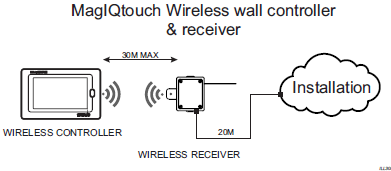

- Will operate up to 100m line of sight from RF receiver.
- Operates on 4x AA batteries with average use life expectancy of 1-1½ years.
- Specifically designed for replacement installations where access to existing cables is problematic.
- Uses the latest in Radio Frequency (RF) channel hopping technology to maintain optimum performance.
- Lower installation costs due to no need for wiring in cavities to wall controller.
