TQ DGH - Adding Wi-Fi to existing MagIQtouch installation


⚠️ Safety Notice – Gas Heating Products

This appliance must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.


Before commencing work, complete a task-specific risk assessment and ensure gas and electrical safety requirements, ventilation provisions, safe access, adequate service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.


Particular care must be taken when working around gas systems, electrical components, combustion products, hot surfaces, moving parts, roof spaces, ceiling spaces and confined spaces.


Do not proceed if safe access, required clearances, ventilation requirements, confined space risks or appropriate safety controls cannot be achieved and maintained.


Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.

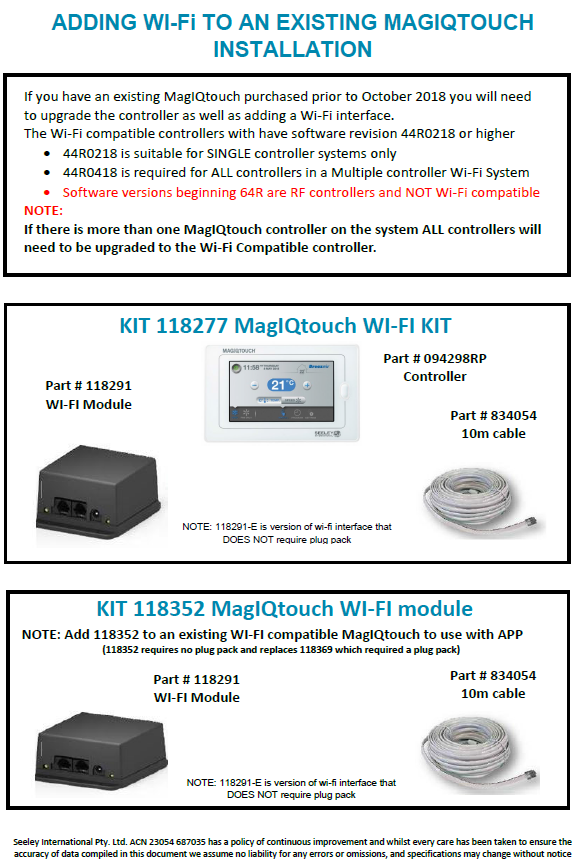

If you have an existing MagIQtouch purchased prior to October 2018 you will need to upgrade the controller as well as adding a Wi-Fi interface.

The Wi-Fi compatible controllers with have software revision 44R0218 or higher
• 44R0218 is suitable for SINGLE controller systems only
• 44R0418 is required for ALL controllers in a Multiple controller Wi-Fi System

NOTE:
If there is more than one MagIQtouch controller on the system ALL controllers will need to be upgraded to the Wi-Fi Compatible controller.
