Replacing existing Updraft Wall Furnace with a WF30 or WF40


 ⚠️Safety Notice – Wall Furnace Products



This appliance must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.

Before commencing work, complete a risk assessment and ensure gas and electrical safety, combustion air requirements, flue integrity, safe clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.

Particular care must be taken when working around gas systems, electrical components, combustion products, hot surfaces, flue systems and roof or ceiling spaces associated with the flue installation.

Do not proceed if safe access, flueing requirements, required clearances or appropriate safety controls cannot be maintained.

Safety takes priority over diagnosis, repairs and installation schedules. If the task cannot be completed safely, it must not proceed.


Attached documents:
WF30 WF40 Installation manual 614281 Pdf
WF30 WF40 Kits and Options and replacement wall furnaces Pdf

Braemar wall furnaces are ideal for replacing existing wall furnaces, including the following models:
Braemar D11/D12/D45/D55
Vulcan series 20/22/Quasar
IXL 10862
Convair finesse range

GENERAL
  • The Braemar WF30/40 series wall furnace is suitable for replacement of a wide range of
existing wall furnaces without modification to the wall opening, and with minimal or no
modification to the existing flue system (provided the flue system is satisfactory as
specified under "Flue System" on page 3 of the attached installation manual).
  • The Braemar WF30/40 series wall furnace is NOT suitable for replacement of fully-recessed
wall furnaces that are installed into a double-brick wall.
IMPORTANT
  • The WF30 wall furnace is intended for domestic applications and replacement of older
wall furnaces. Due to its higher thermal efficiency and improved air distribution, it is suitable
for replacement of older 40 MJ/hr models.
  • The WF40 wall furnace is suitable for heating very large areas and is not generally                                                                                                                                               recommended for “normal” domestic applications due to the higher air flow rates.

INSTALLATION
  • Remove the existing wall furnace.
  • Remove the existing mounting brackets.
  • Fit the Braemar mounting brackets supplied with the heater                                                                                                                                                                                              as per the dimensions given on  page 4 or 5 of the attached installation manual.
  • Complete the heater installation as per a new installation.
  • Note that if the existing flue system is to be used it must comply with the current
requirements of AS/NZS5601 "Gas installations".

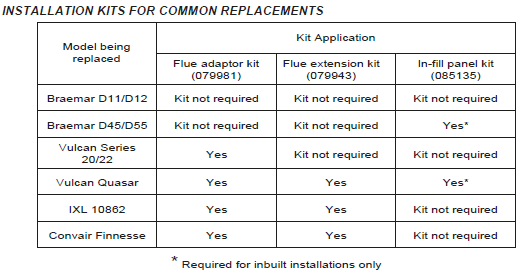

  • The following table details kits that are available to assist in replacing an existing wall
furnace and identifies kit requirements for MOST common replacements.
