SH18 SH25 WF25 balanced flue wall furnace connecting horizontal and vertical flue

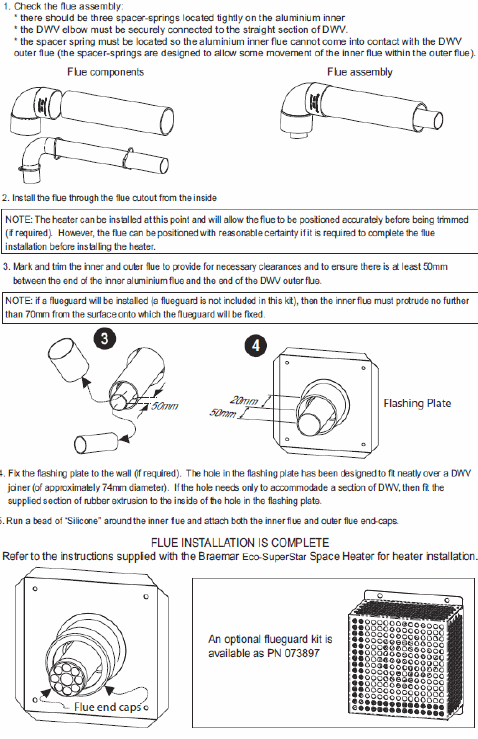

Horizontal Flue

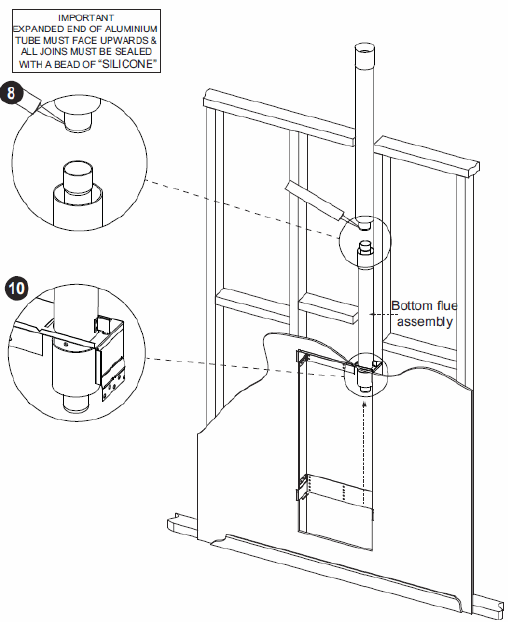

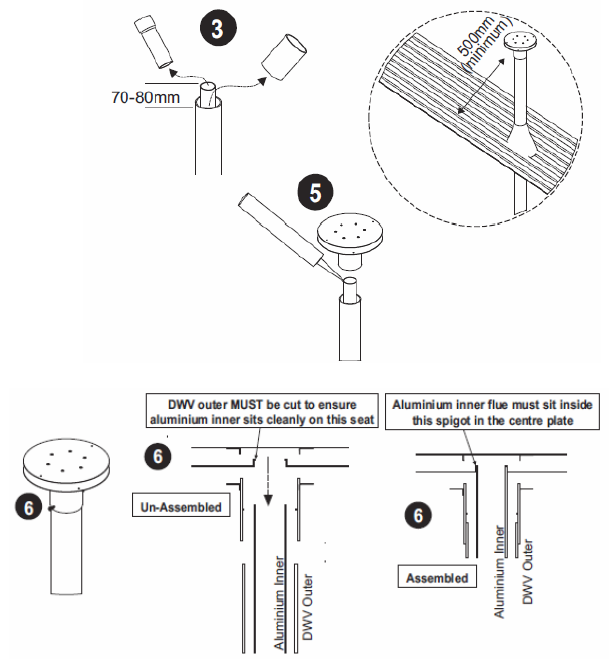

Vertical Flue
SH18 SH25 WF25 balanced flue wall furnace connecting horizontal and vertical flue Print
Modified on: Fri, 17 Apr, 2020 at 3:59 PM
