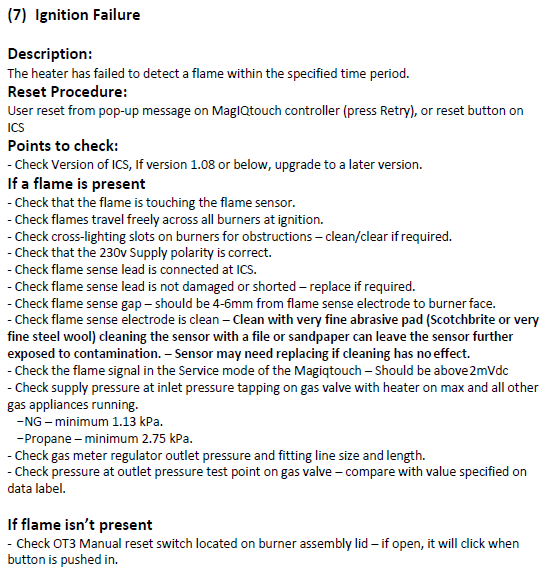

TQ DGH - FC7 Ignition Failure - heater has failed to detect a flame within the specified time period
Fault code history can be accessed:
SETTINGS/SERVICE/GAS HEATER 01/7378 CONT/FAULT LOG
YouTube Video - MagIQtouch Heater Fault Log
Click here to play video : - MagIQtouch service operating screen ducted gas heater

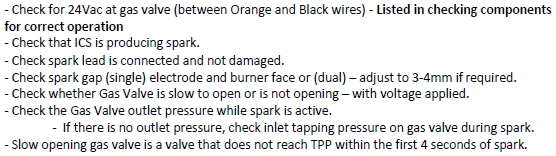

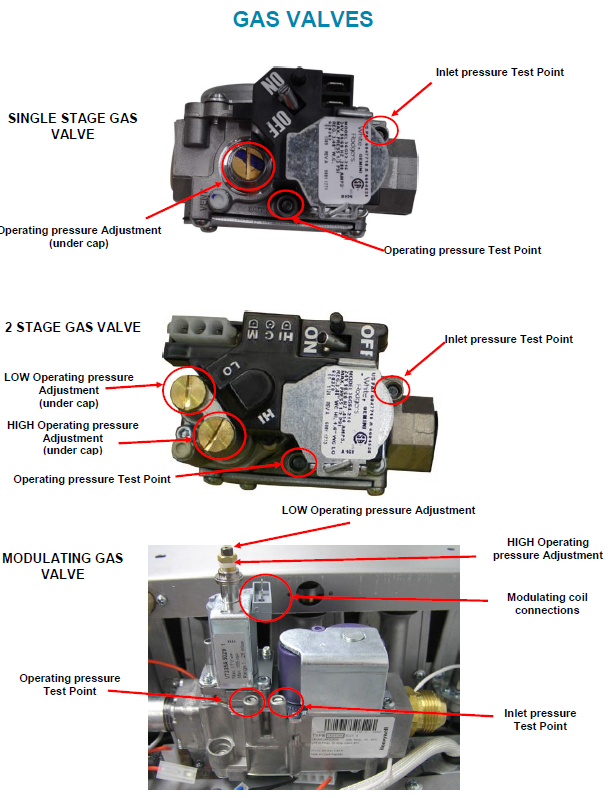

If all burners DO NOT light and the flame does not touch the flame sensor and gas pressures have been confirmed as correct
- Check flames travel freely across all burners at ignition

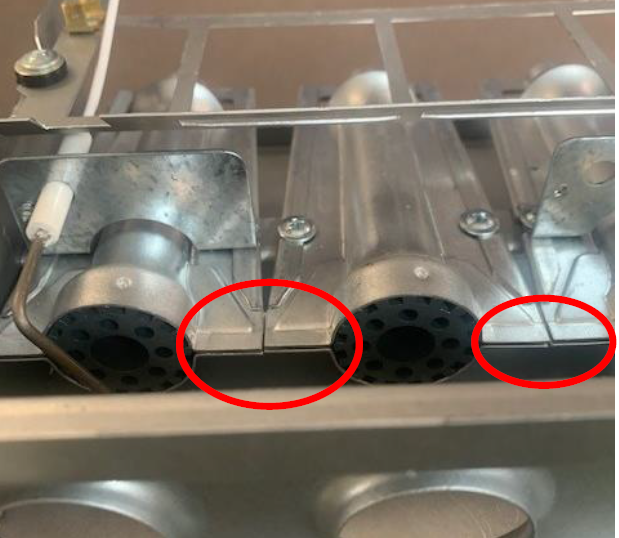

- Check burner slots are aligned
- Check cross-lighting slots on burners for obstructions - clean/clear is required

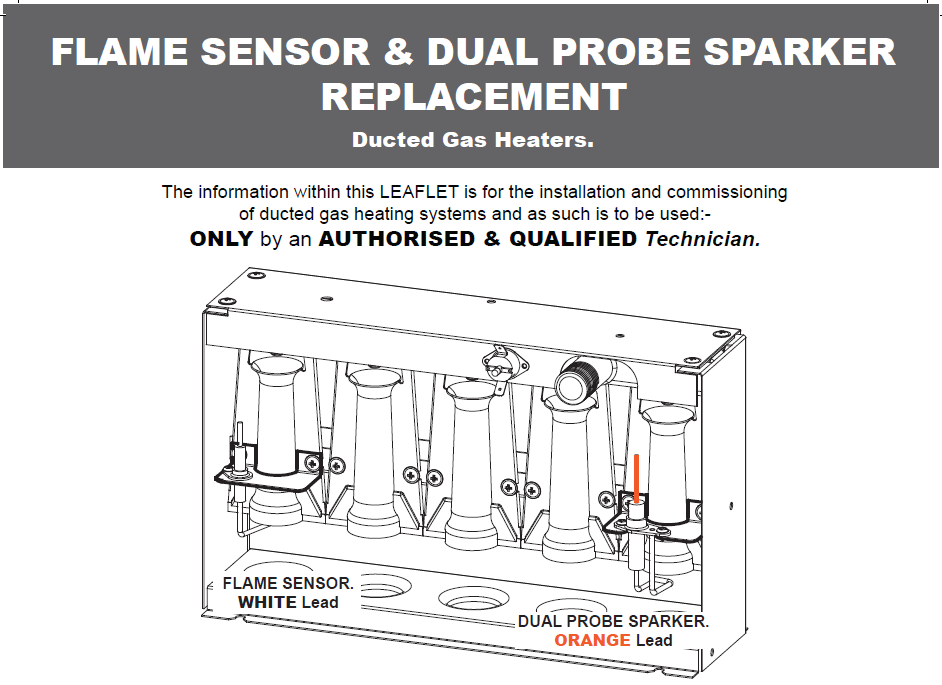

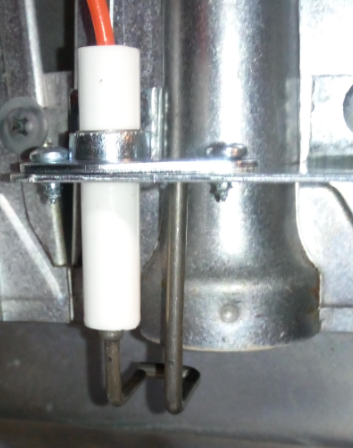

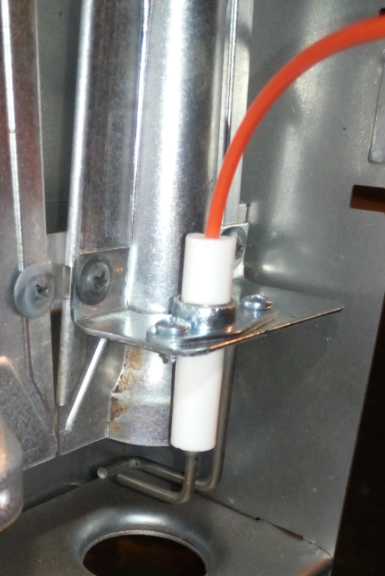

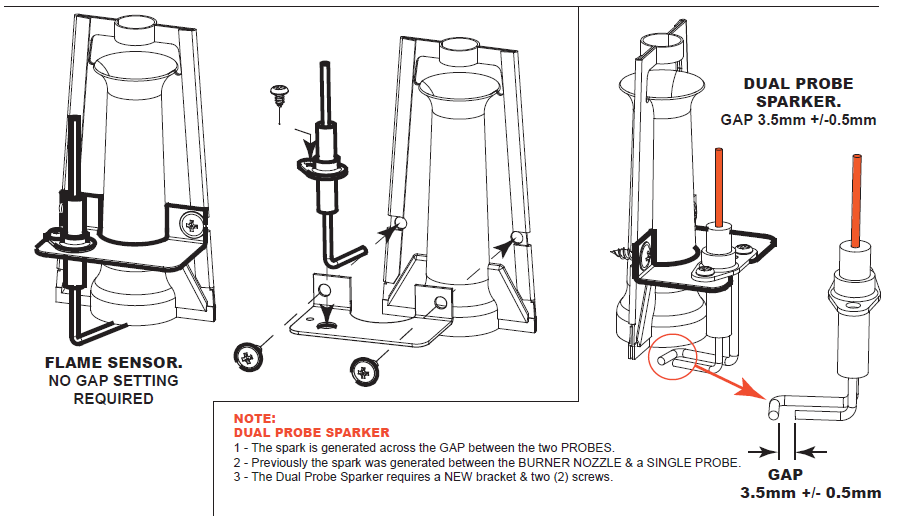

To assist in the field with issues of intermittent fault code 7 and 11, we have introduced 2 x new kits
that replaces both sparker and sensor probes

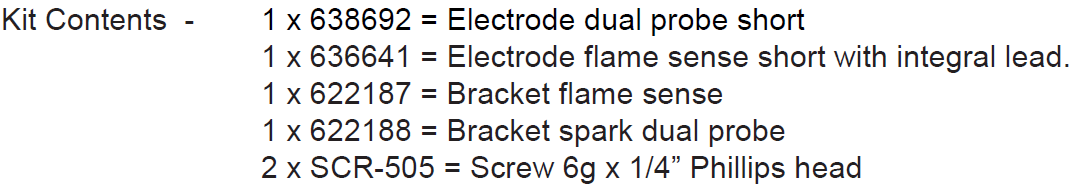

Kit Pt# 651799 - replaces sparker and sensor in condensing heaters (PVC flues and drains)

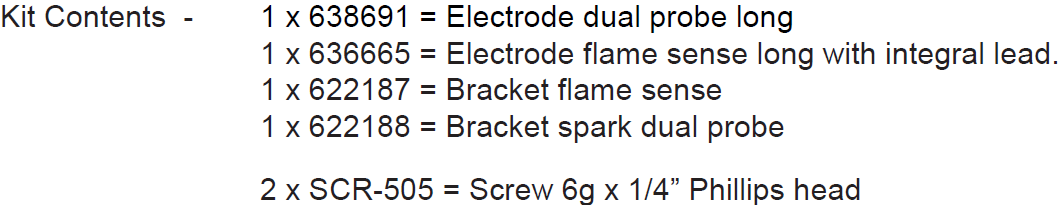

Kit Pt# 651800 - replaces sparker and sensor in non-condensing heaters (metal flues and no drains)
