TG TH - FC11 Displayed to user on the Spectrolink CC control : Seeley International Pty Ltd

TG TH - FC11 Displayed on Spectrolink to user - TG, TH DGH FC11 displayed to user on Spectrolink - No power at ignition or loss of power to gas valve during run Print

Modified on: Tue, 24 Oct, 2023 at 4:14 PM

TG TH - FC11 Displayed to user on the Spectrolink CC control

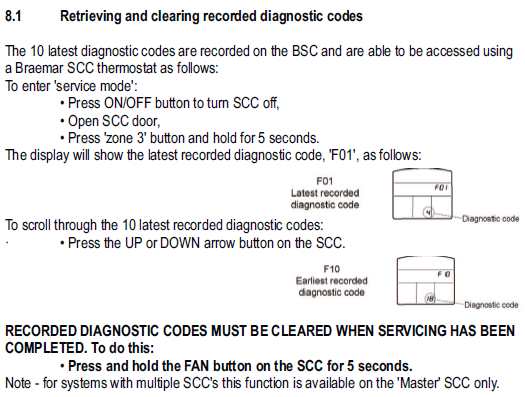

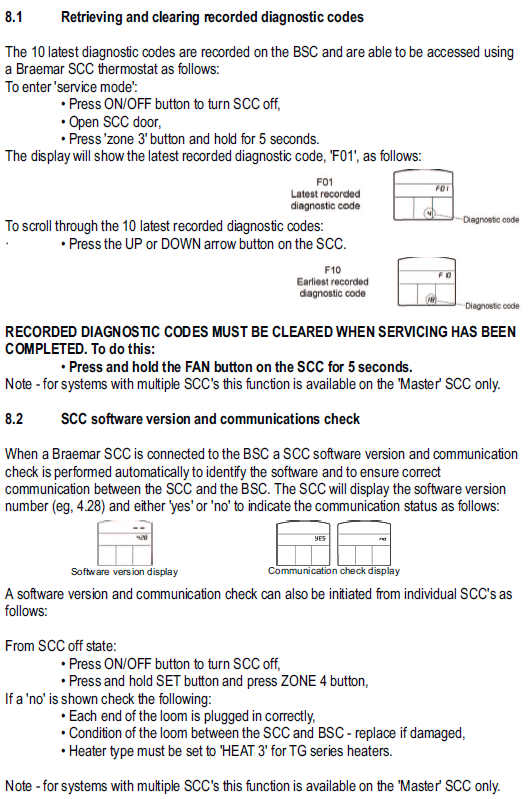

Click here to view YouTube video Spectrolink SCC accessing and clearing fault code history

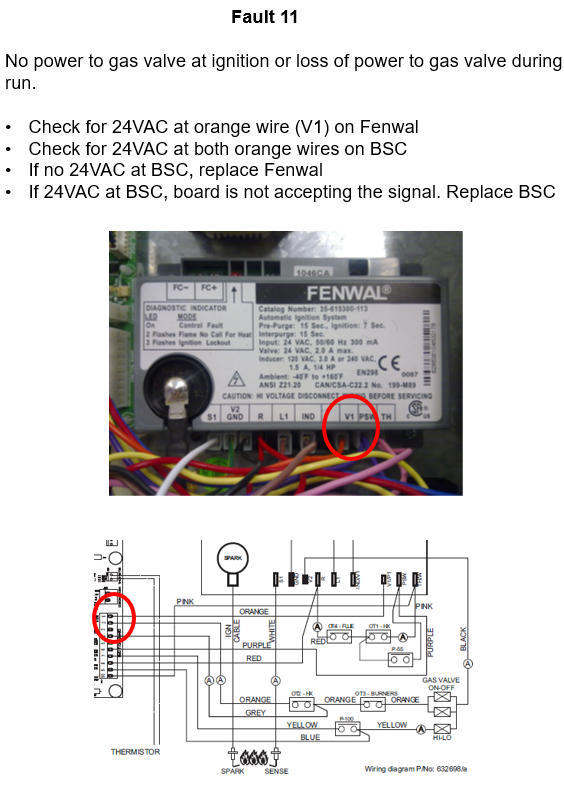

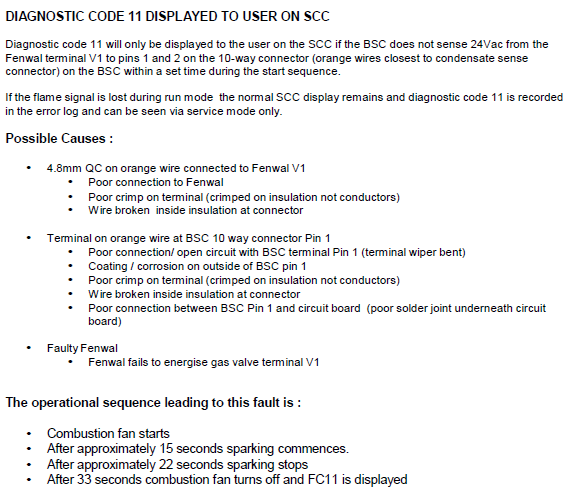

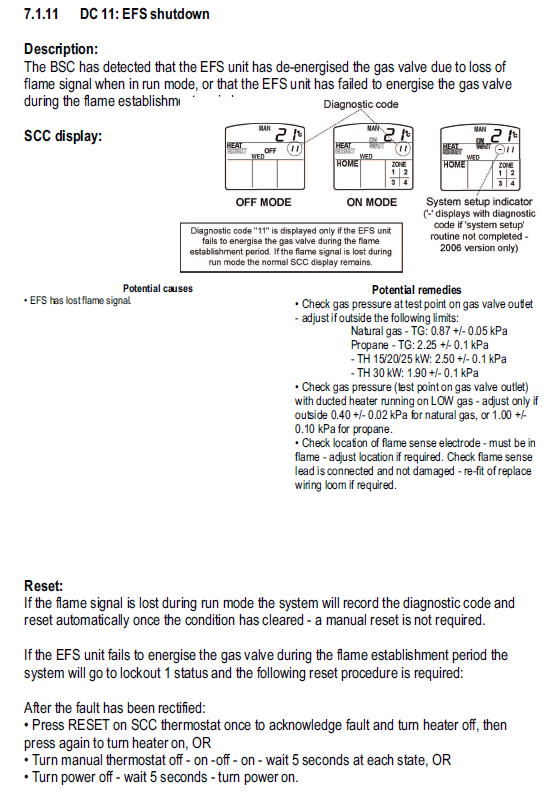

See attached Pdf FC11 displayed to user on SCC TG and TH

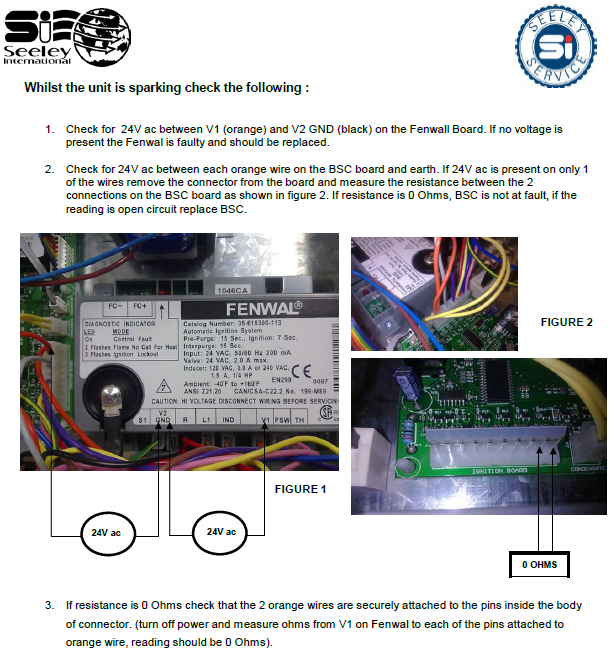

If gas valve is not getting voltage to energize it

Always check the flame rollout OT3 (manual over temperature switch above the burners) hasn't tripped - press red button to reset

If gas valve is not getting voltage to energize it

Always check the flame rollout OT3 (manual over temperature switch above the burners) hasn't tripped - press red button to reset
