TQ DGH - FC4, FC5, FC9, FC15 and FC16 Thermistor related faults
TQ Thermistor & Bracket Pt# 651912
TQMD Thermistor & Lead Pt# 647067
TH/THM Thermistor & Lead Pt# 611136
THMD Thermistor & Lead Pt# 642796
Fault code history can be accessed:
SETTINGS/SERVICE/GAS HEATER 01/7378 CONT/FAULT LOG
YouTube Video - MagIQtouch Heater Fault Log

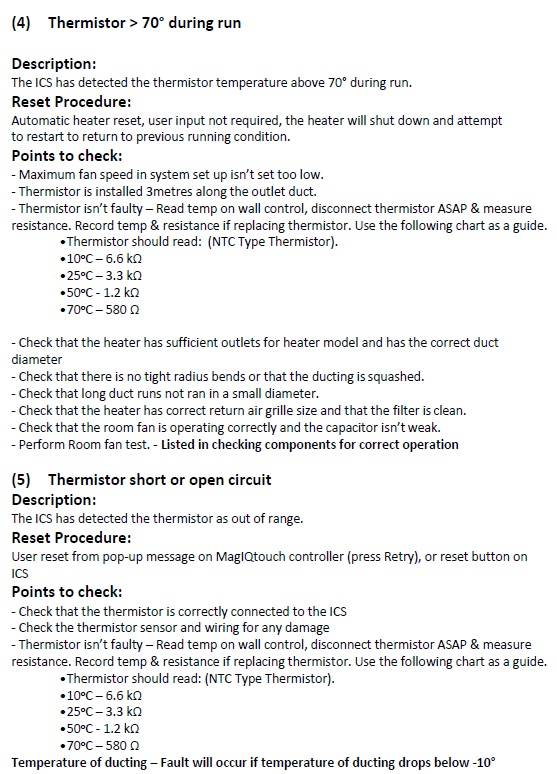

FC4 - Thermistor > 70° during run

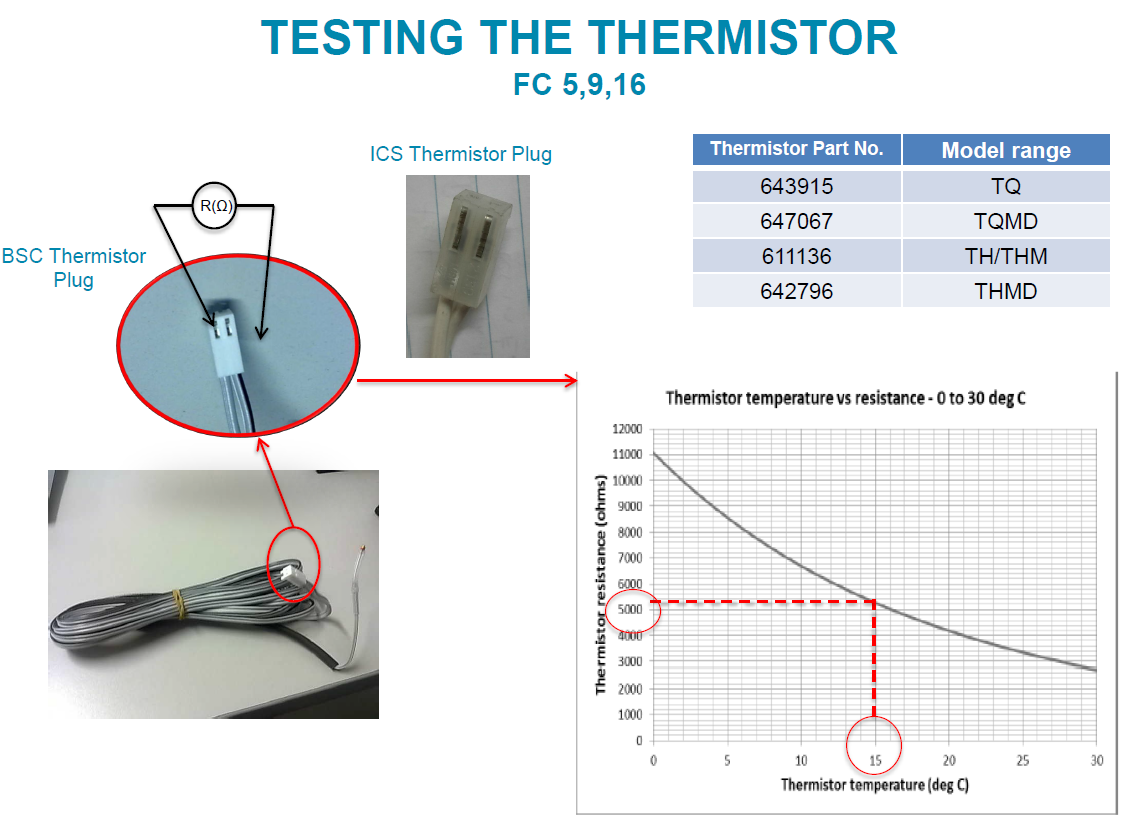

FC5 - Thermistor short or open circuit

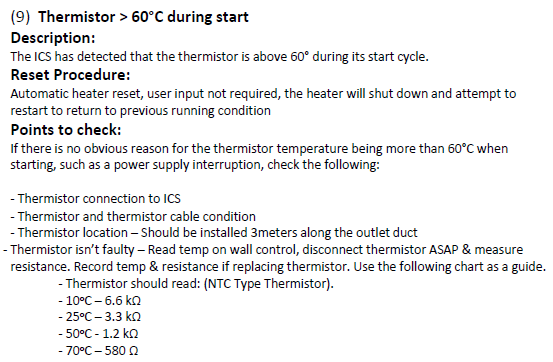

FC9 - Thermistor > 60°C during start

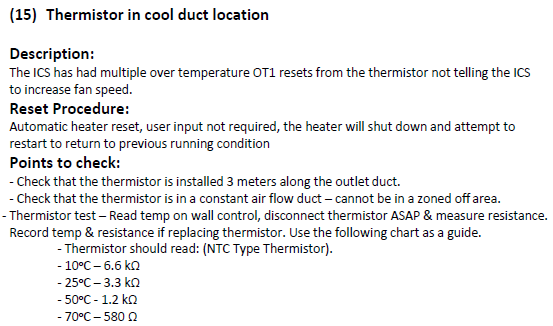

FC15 - Thermistor in cool duct location
FC16 - Thermistor not installed in outlet duct
