MagIQtouch RF (Wireless) Pairing Procedure
⚠️ Customer Safety Notice
This article contains general information intended for homeowners and occupants. Installation, servicing, repairs, electrical work, gas work and refrigerant-related work must only be carried out by appropriately qualified and licensed personnel.
Before performing any checks or maintenance, ensure the equipment is switched off and safe to access. Do not remove covers, enter roof or ceiling spaces, work at heights or attempt repairs unless you are qualified to do so.
If in doubt, contact an authorised service agent or licensed tradesperson. Safety must always take priority.
The procedure to replace the RF receiver Pt# 902869 is as follows;
• Reset the ‘whole’ system from the MagIQtouch RF wall controller before changing the ‘old’ receiver with ‘new‘ receiver.

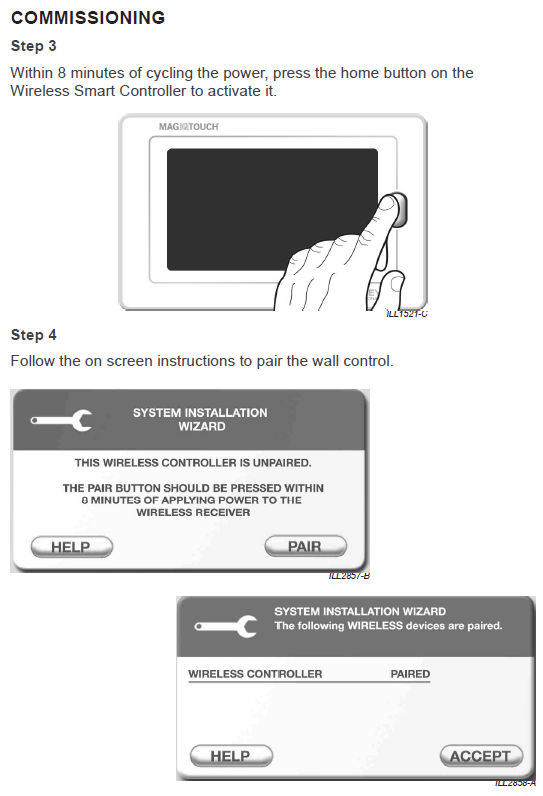

• After the receiver is replaced within 8 minutes pair the existing customer RF wall control with the ‘new’ receiver and follow normal installation wizard sequence.

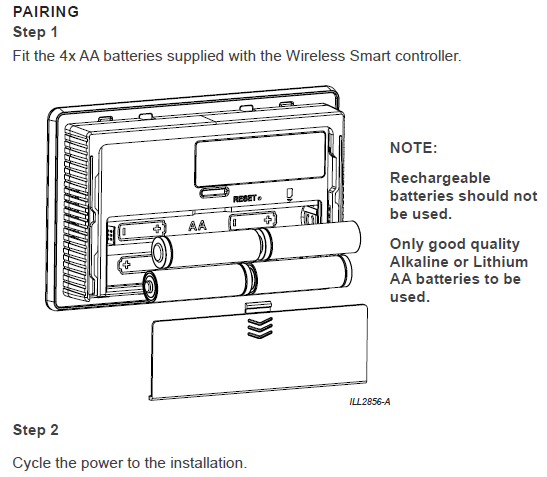

For further information on process see attached Pdf - Installation & Owner Manual MagIQtouch Wireless smart controller
Page 19 – Resetting the ‘whole’ system using the MagIQtouch RF wall controller

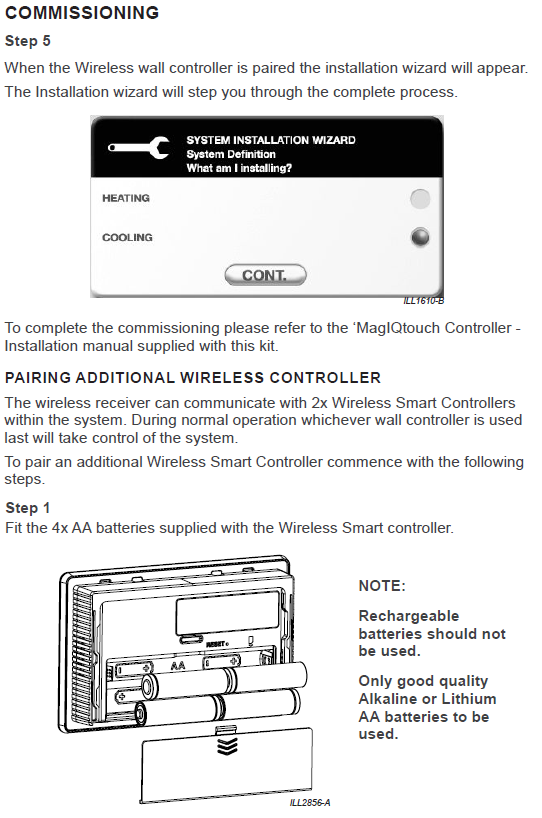

Pages 11 to 14 - Pairing the existing MagIQtouch RF wall control with the ‘new’ receiver and following the installation wizard.
