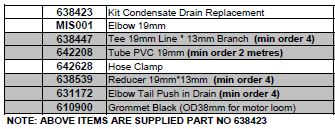

TG5 / TH5 Condensate Drain Replacement Kit # 638423


⚠️ Safety Notice – Gas Heating Products

This appliance must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.


Before commencing work, complete a task-specific risk assessment and ensure gas and electrical safety requirements, ventilation provisions, safe access, adequate service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.


Particular care must be taken when working around gas systems, electrical components, combustion products, hot surfaces, moving parts, roof spaces, ceiling spaces and confined spaces.


Do not proceed if safe access, required clearances, ventilation requirements, confined space risks or appropriate safety controls cannot be achieved and maintained.


Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.

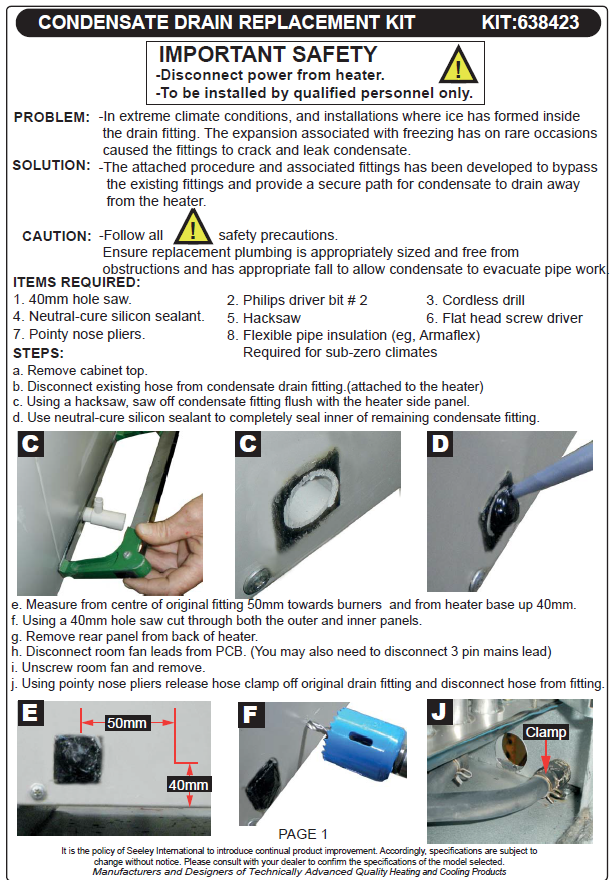

In extreme climate conditions, and installations where ice has formed inside the drain fitting. The expansion associated with freezing has on rare occasions
causes the fittings to crack and leak condensate.

The attached procedure and associated fittings has been developed to bypass the existing fittings and provide a secure path for condensate to drain away
from the heater.
