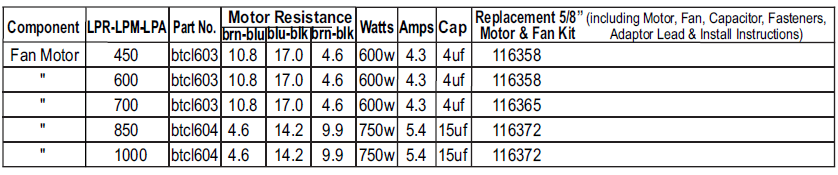

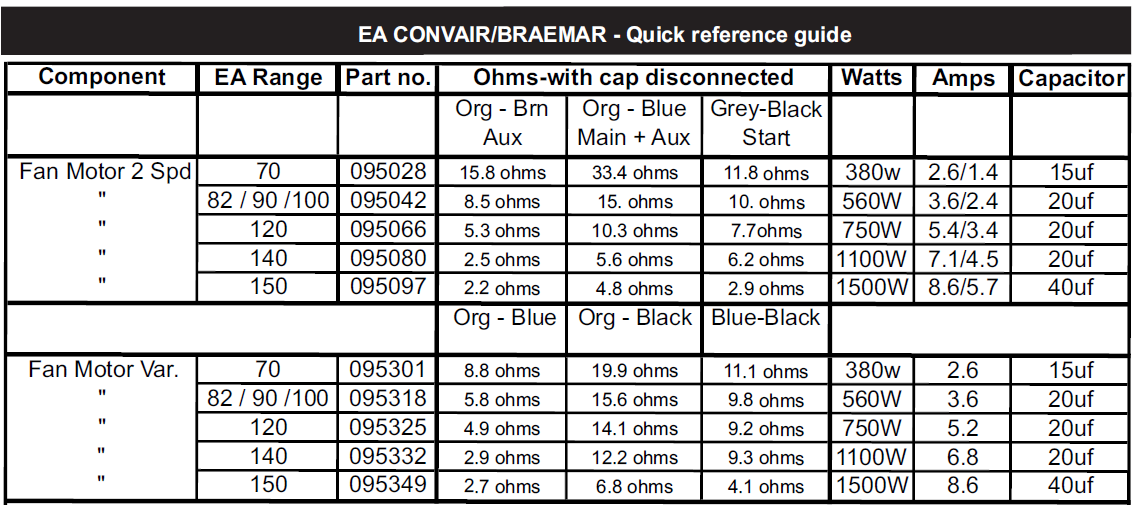

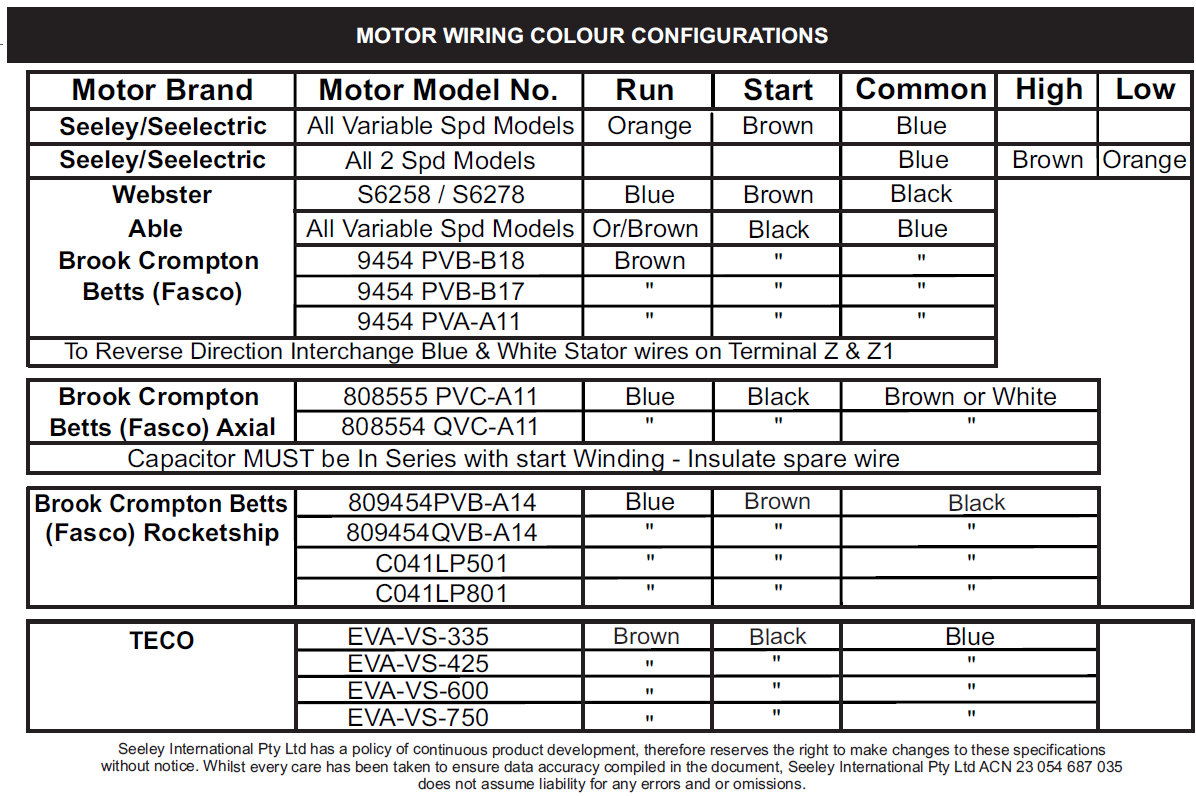

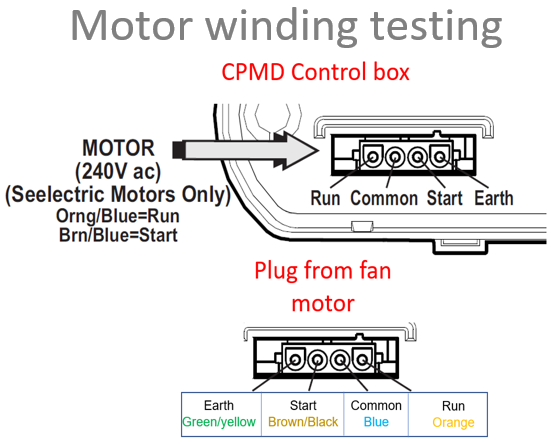

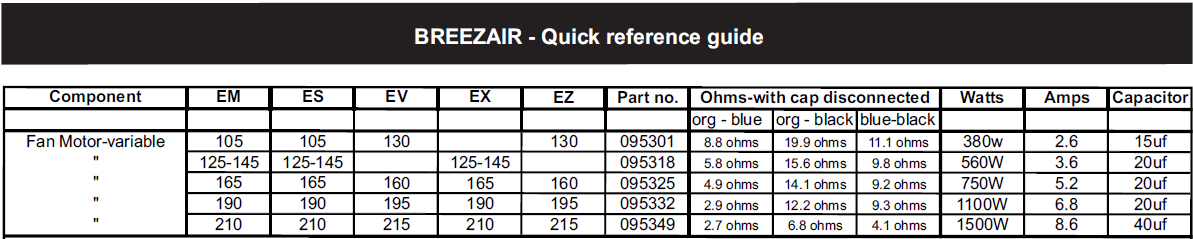

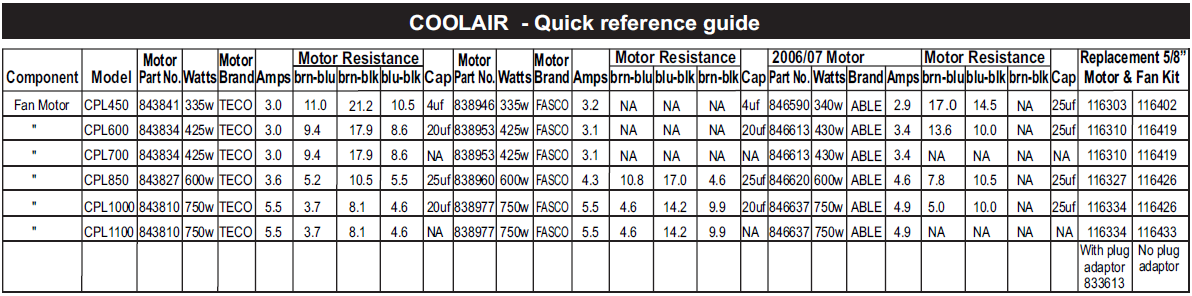

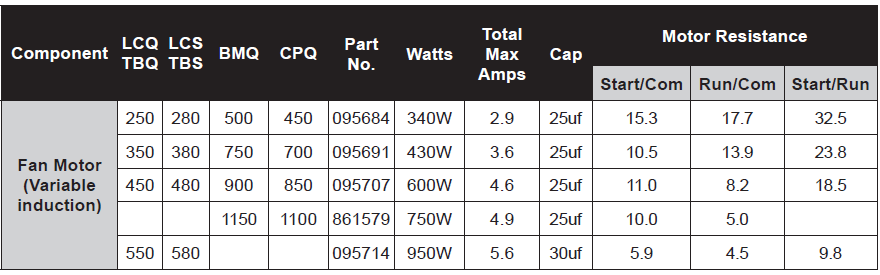

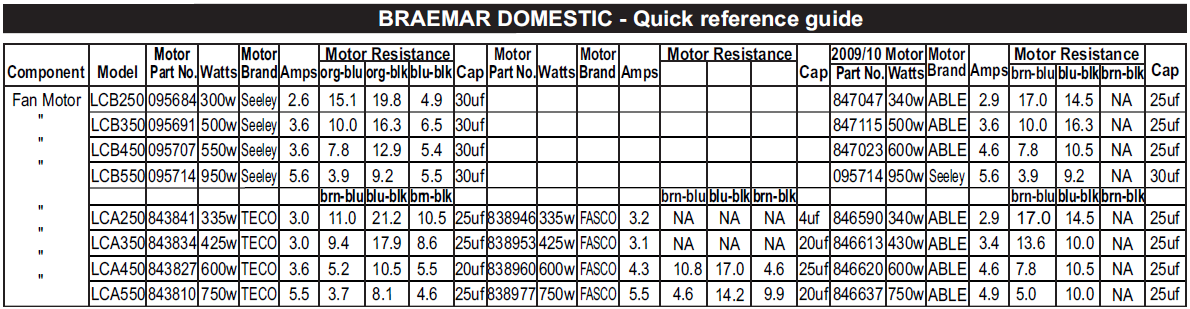

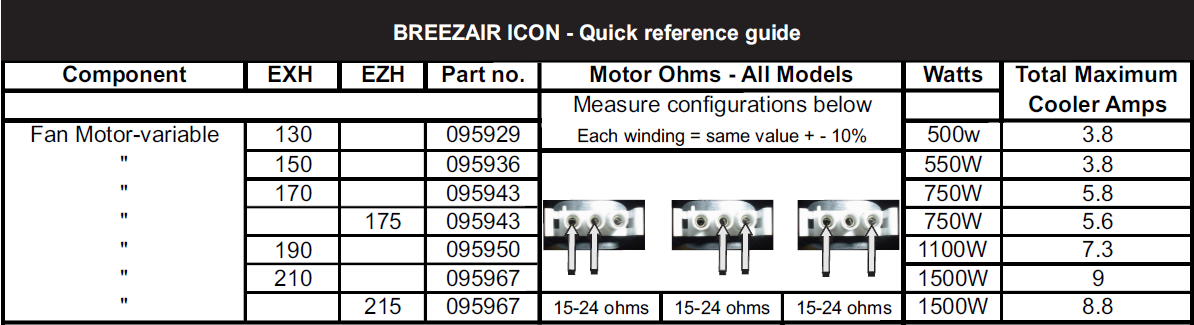

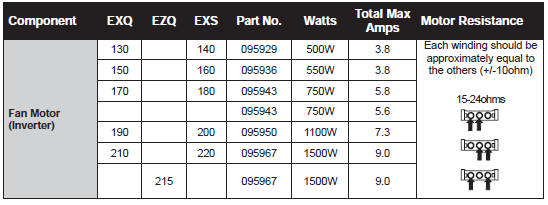

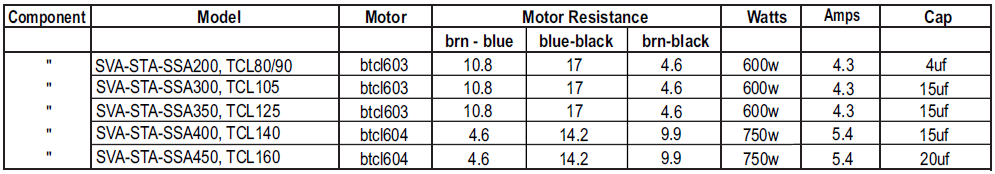

FEAC motor winding resistance (ohms) testing, current (amp) ratings and various motor wiring colour configurations
