Post-2020 manufactured CW-H Schneider PLC Software update procedure via USB video



    IMPORTANT: Before copying the update files to your USB stick DELETE ALL other files from the USB stick

    Before adding update files check that your USB Stick Is compatible as per below



    Connect to USB stick to the computer

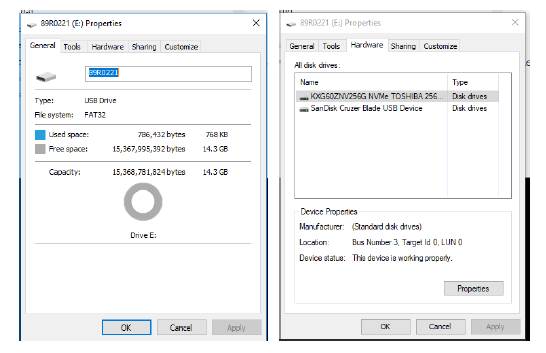

    Right click on the USB stick and select Properties

    Then click on Hardware

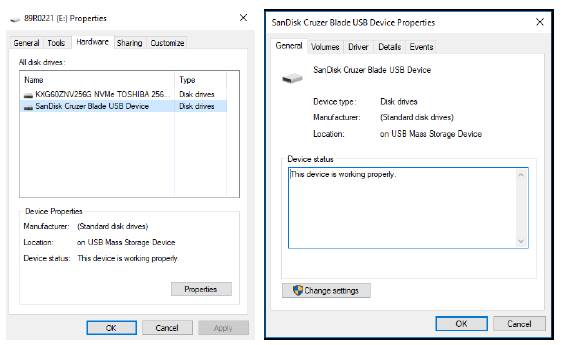

 • Select the USB stick and click on Properties



     Click on the Details Tab and under Property select Capabilities



    IMPORTANT: Check that CM_DEVCAP_UNIQUEID is displayed

    If CM_DEVCAP_UNIQUEID is displayed, the USB stick is OK to use.

     If CM_DEVCAP_UNIQUEID is NOT displayed, DO NOT USE THE USB STICK.



CW-H2020 PLC Software update procedure via USB

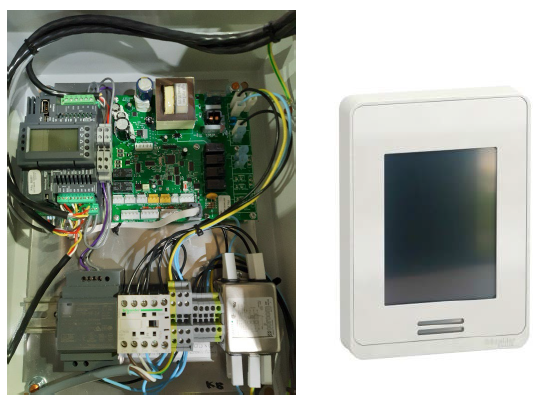

Climate Wizard post-2020 manufactured control system using PLC interface
