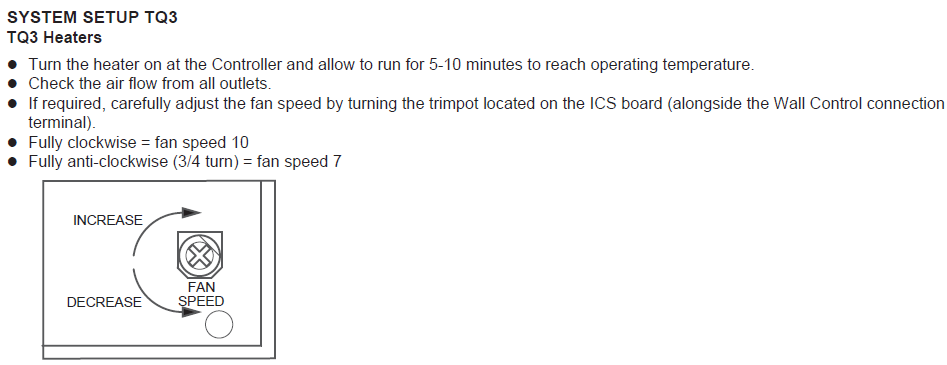

TQ3 adjusting maximum fan speed using trimpot (potentiometer) (3 star * heater only)

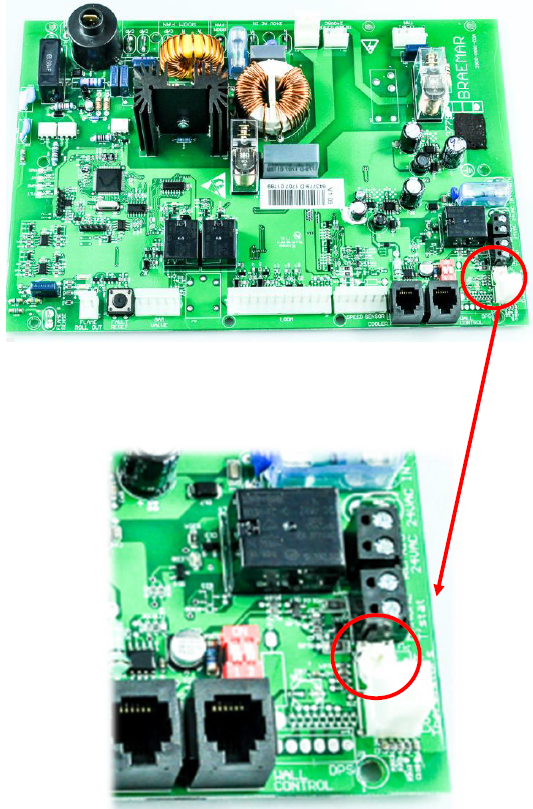

LOCATED NEXT TO THE MANUAL T/STAT TERMINAL CONNECTIONS
TQ3 adjusting maximum fan speed using trimpot (potentiometer) (3 star * heater only) Print
Modified on: Fri, 5 Nov, 2021 at 3:35 PM
