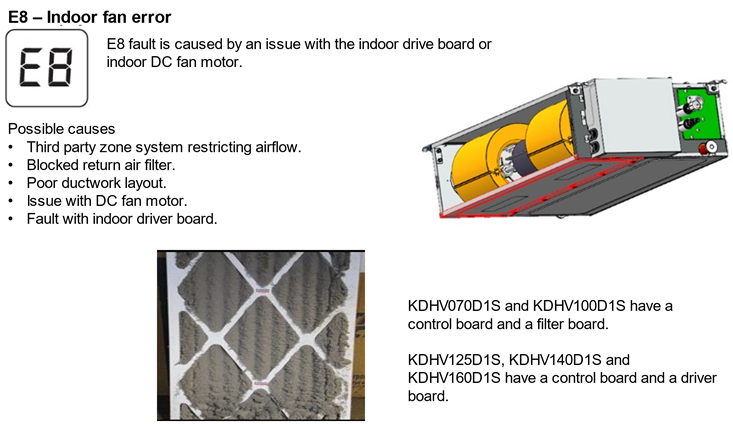

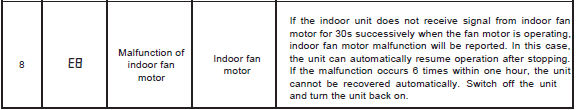

Important: If E8 fault occurs on an SDHV10D1S indoor model refer to information below referring to moisture transferring through heatsink screws
Pdf attached - Residential Service Guide Ducted, Cassette, Wall-Split, Multi Systems & Add-on cooling - ES E247-A Braemar Residential Service Guide
KDHV / SDHV Fan Motor tests:

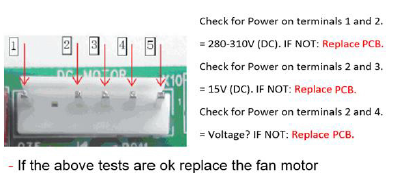

For 5-pin motor diagnostics, ensure the power is on and the system is activated, then proceed with the checks below:
To diagnose a 3-pin outdoor fan motor, ensure the power is off and the system is shut down. Then, disconnect the motor from the PCB.

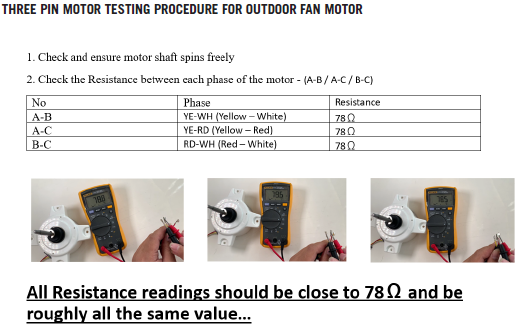

Fan Motor Testing (3-Pin)
With power isolated and the fan motor unplugged, perform resistance checks between all three motor pins.
✅ Measure resistance between:
- Pin 1 to Pin 2
- Pin 1 to Pin 3
- Pin 2 to Pin 3
Expected Result
- The resistance readings should be similar across all three measurements.
- Actual resistance values will vary depending on the motor type, size, and manufacturer.
- Wire colours may vary between motors and should not be relied upon for identification.
- A significantly higher, lower, open-circuit, or short-circuit reading on one winding may indicate a faulty motor.
Note: Use the measurements to compare winding balance rather than matching a specific resistance value.

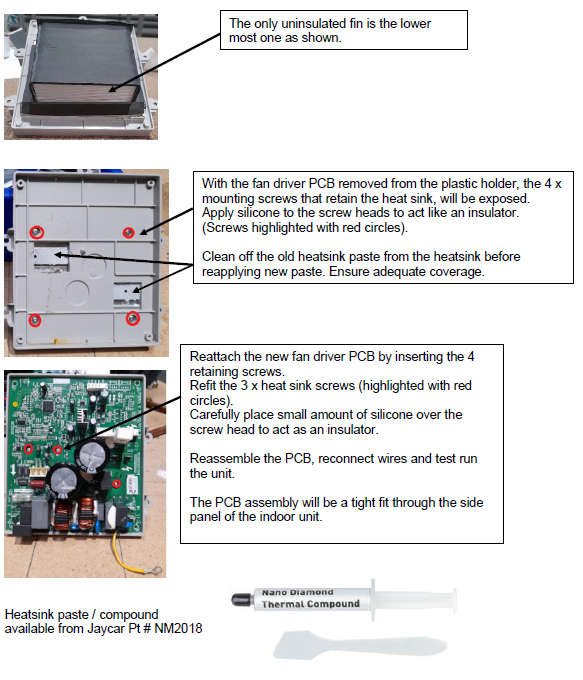

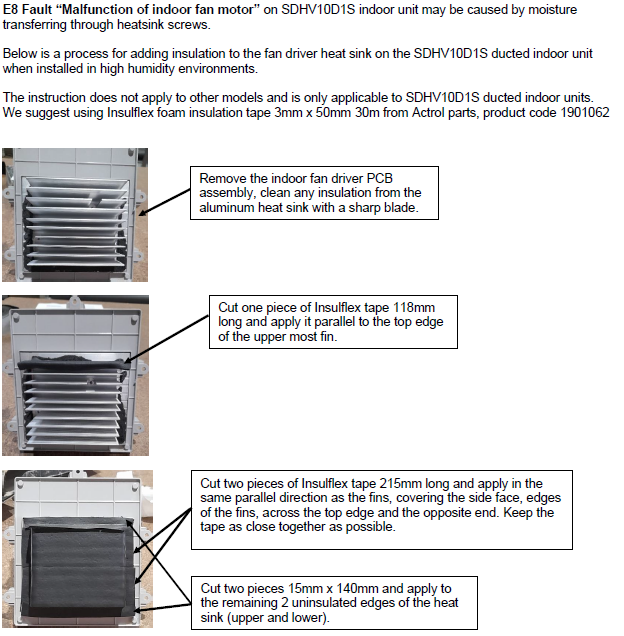

E8 fault on SDHV10D1S indoor driver PCB heat sink
