Communication Cable (6 pins) Pt# 094694 to suit Q series heating and cooling products wiring configuration for RJ12 6P6C connectors

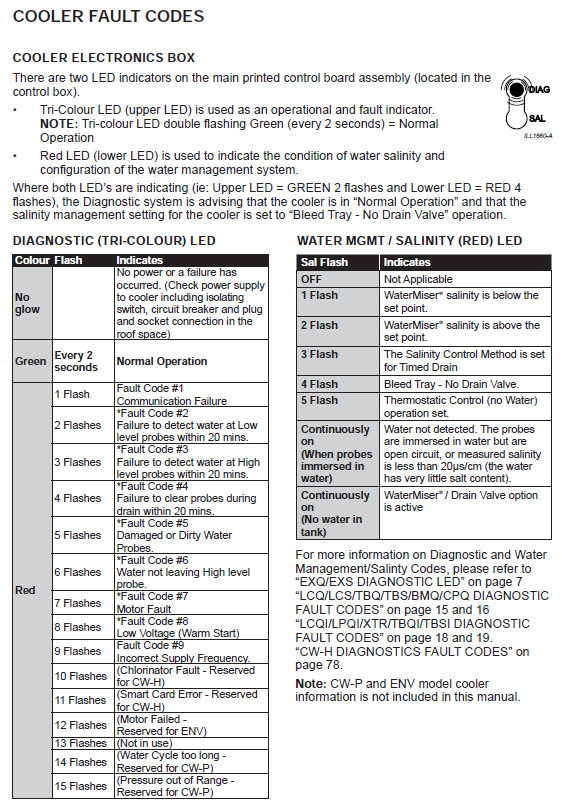

Note! To accurately diagnose faults on Seeley products, we recommend that Service Technicians use a wall controller on a short test lead at the cooler. This way the functions of the cooler, as well as the diagnostics LED's can be immediately observed in relation to the commands issued by the controller.
EXH compatible - 4 pin RJ connector communication cable - 1 metre test loom Pt# 831534
EXQ compatible - 6 pin RJ connector communication cable - 1.5 metre test loom Pt# 862873

RPCQi compatible - 6 pin RJ connector communication cable - 1.5 metre test loom Pt# 862873

IMPORTANT SAFETY NOTE! When any side panels are removed, always test evaporative coolers with the pump disconnected or in ventilation mode, as wet roof surfaces can create a safety hazard. Also care must be taken when working in close proximity to moving parts.

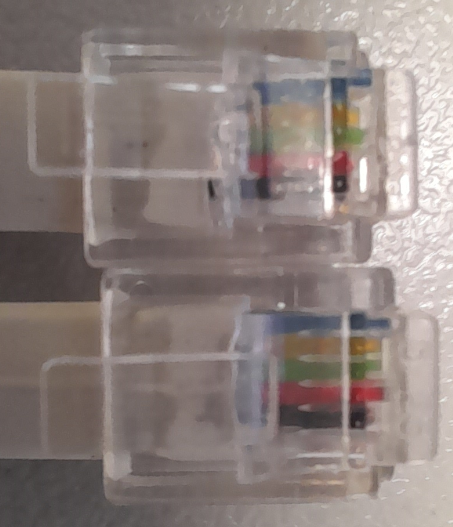

RJ12 6P6C (suitable for MagIQtouch cables)


Communication cable description - PVC sheathed 6 core 7/0.16mm (26awg) copper wires - low resistance

Termination plug end - Plug 6 pin Farnell 781-289

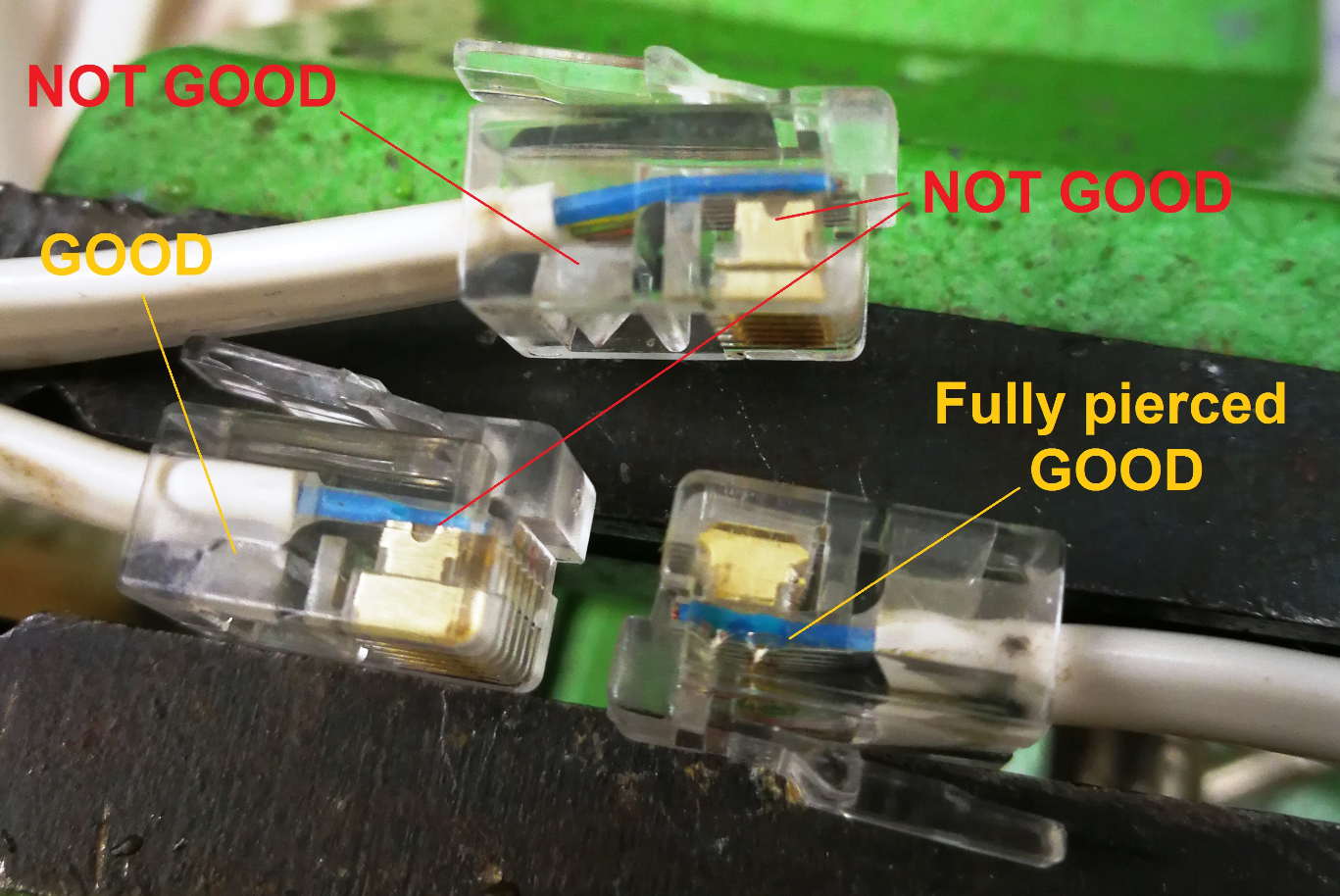

When dealing with communication issues Technicians should have an RJ connector Crimp tool as well as the RJ12 6P6C connectors.



Make sure the crimping tool is capable of terminating the two different types of cables used on Seeley products.

RJ12 6P6C (suitable for MagIQtouch cables) and RJ11 4P4C (suitable for older coolers EX, EXH, LCB, CPL products)

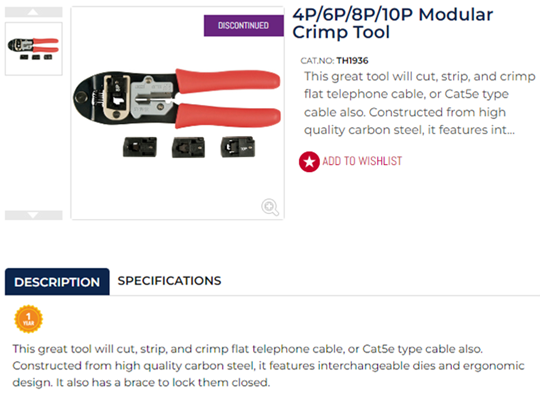

Example of a suitable Crimp tool below:



Click on below YouTube links for procedures:
