MagIQtouch controller not finding Invertair SACV add on cooler - setting up using an XK60 controller
The InvertAir product has been setup with (MODBUS) long-distance monitoring which enables the system to communicate with the MagIQtouch control and TQ series ducted gas heater. If you have an InvertAir system that doesn't find the MagIQtouch this setting will need to be checked and adjusted if necessary.
To do the checking and modification if required you will need an XK60 controller.
Spare Parts number 30294000007_L22962 - XK60 wired controller
Wiring of the XK60 wall controller is to the "H1" & "H2" terminals found inside the indoor SACV InvertAir.
It is not polarity sensitive

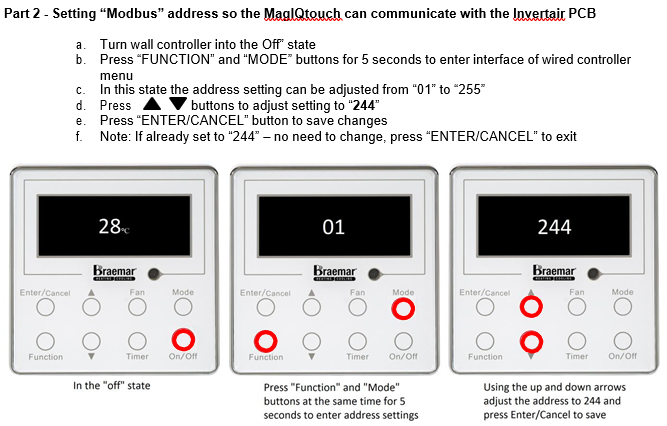

Setting of the long-distance monitoring and address is done in two parts.

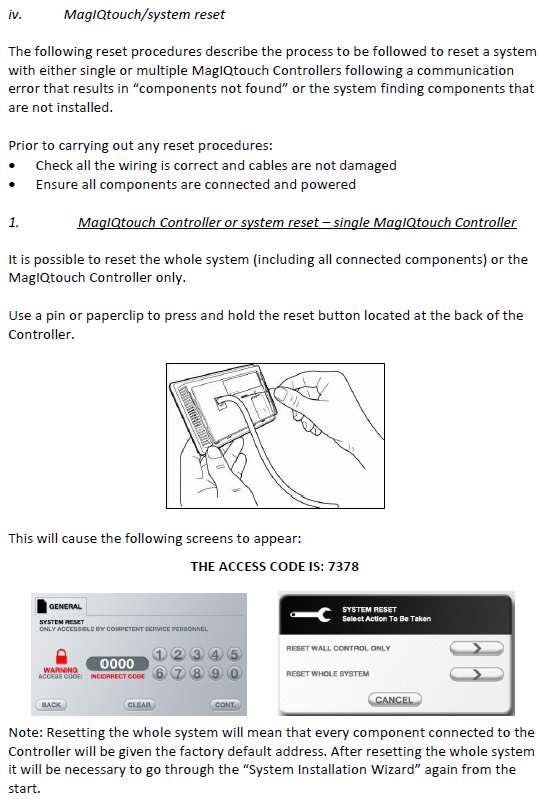

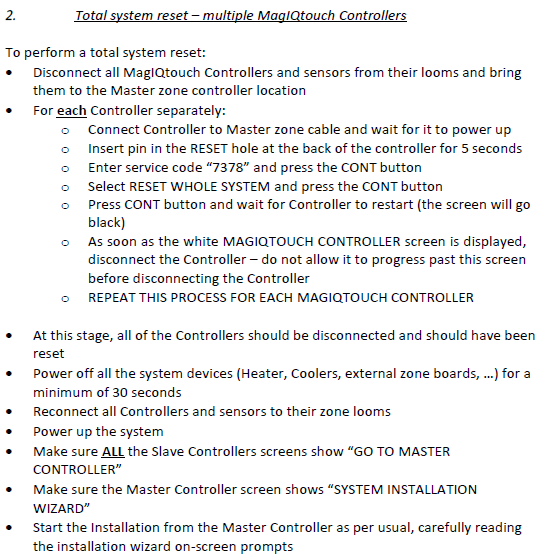

Once satisfied the system address is setup correctly you will need to go through the MagIQtouch installation wizard using the option setting up "RESET WHOLE SYSTEM"
