KSHV Ultimate Series High Wall Split - Service Manual - Braemar - KSHV25D1S03-B

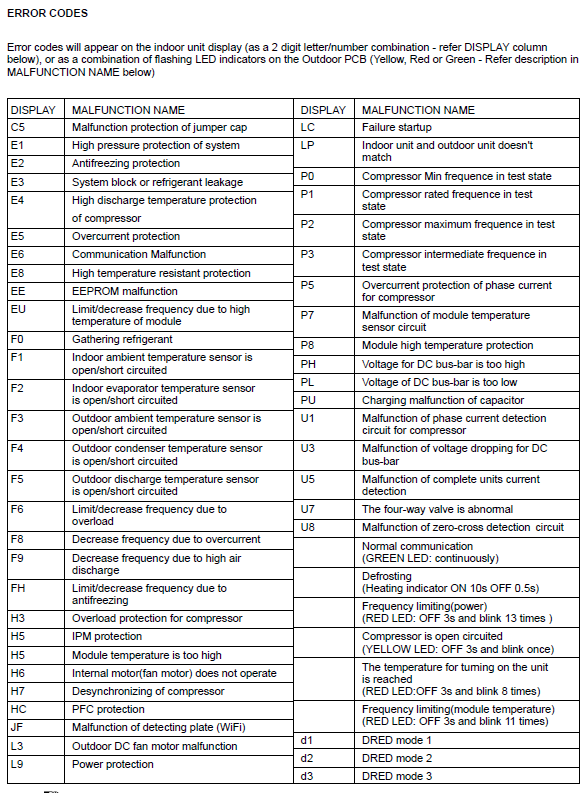

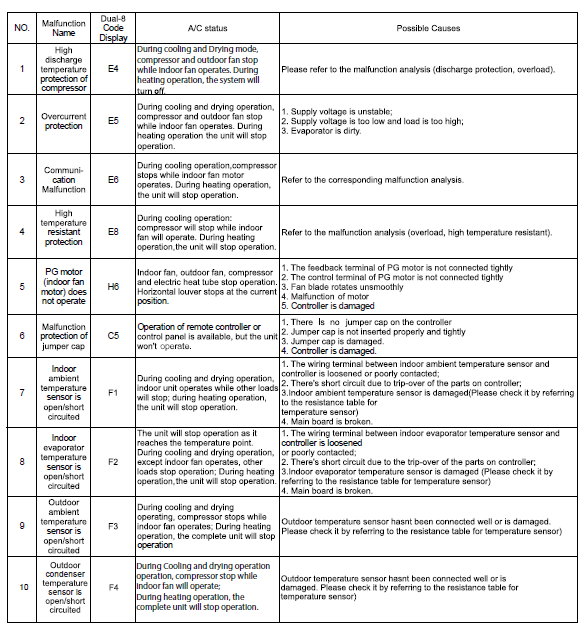

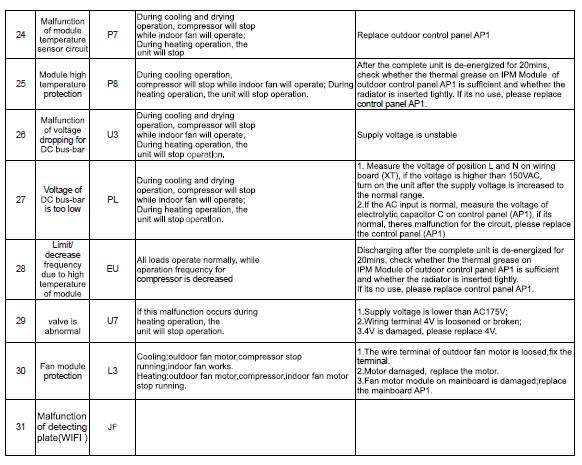

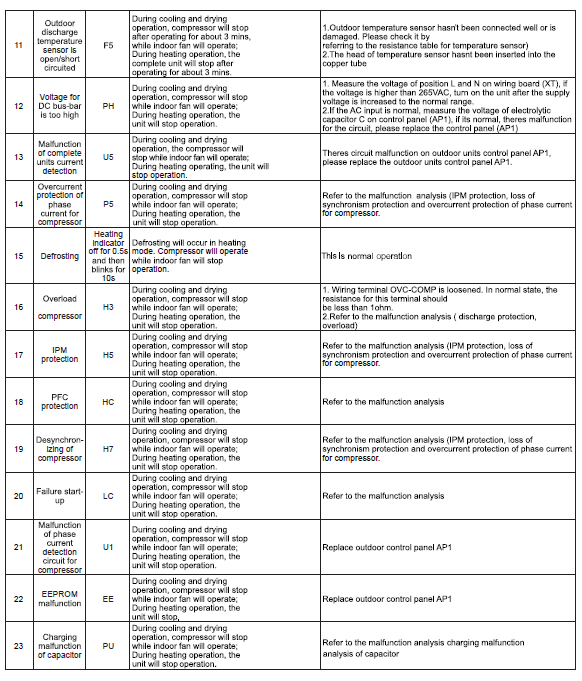

Complete service diagnostic information Pdf attached

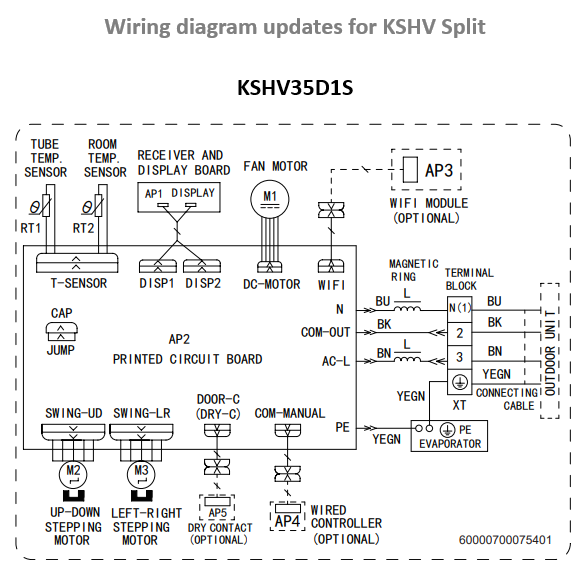

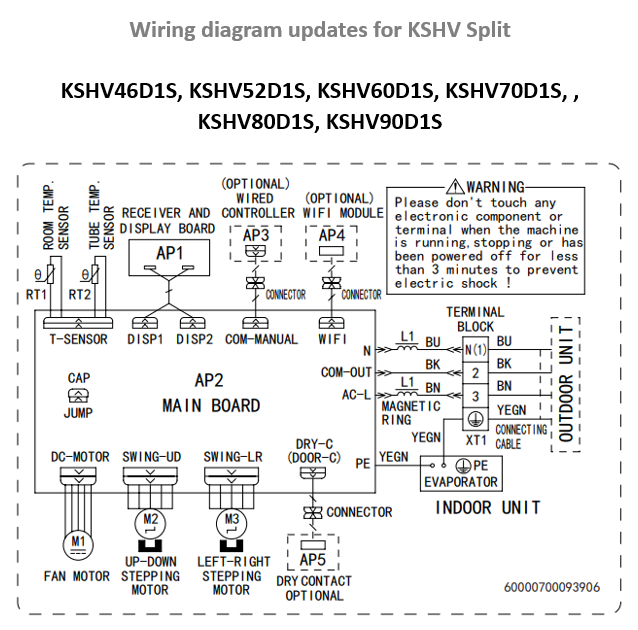

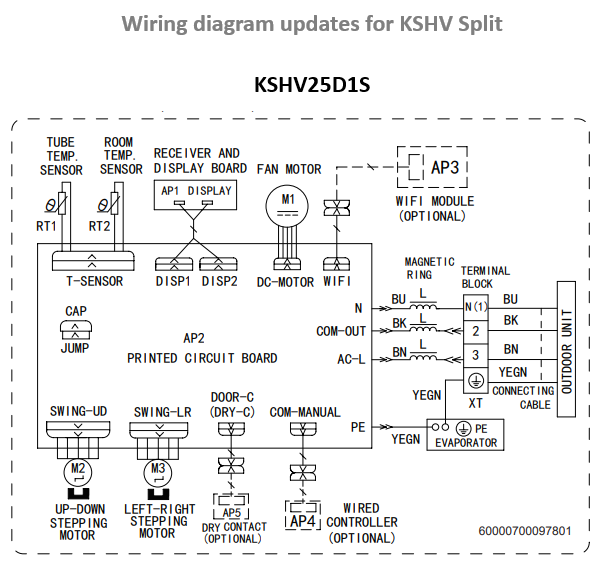

IMPORTANT UPDATES TO WIRING DIAGRAMS

Complete service diagnostic information Pdf attached

pdf

(15.5 MB)
