Standard Bleed Tray and shorting plug option Breezair, Braemar and Coolair Installation
Spare Parts numbers required
BREEZAIR EXQ AND EXH
(Shorting plug Spare part # 879079 - Bleed tray Spare part # 107608)

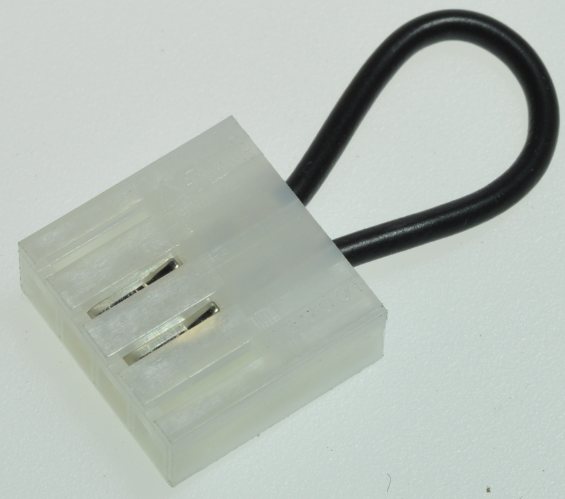

Pt#879079
BRAEMAR AND COOLAIR LCQ LCS BMQ LCB CPQ CPL
(Shorting plug Spare part # 879079 - Bleed tray Spare part # 103259)
Pt#879079
BRAEMAR LCQi LPQi
(Shorting plug Spare part # 880617 - Bleed tray Spare part # 103259)
Pt#880617

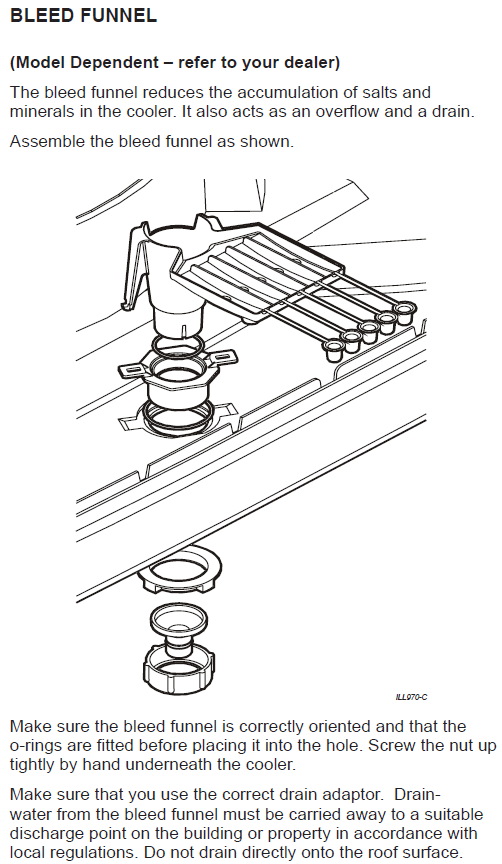

BREEZAIR EXQ AND EXH

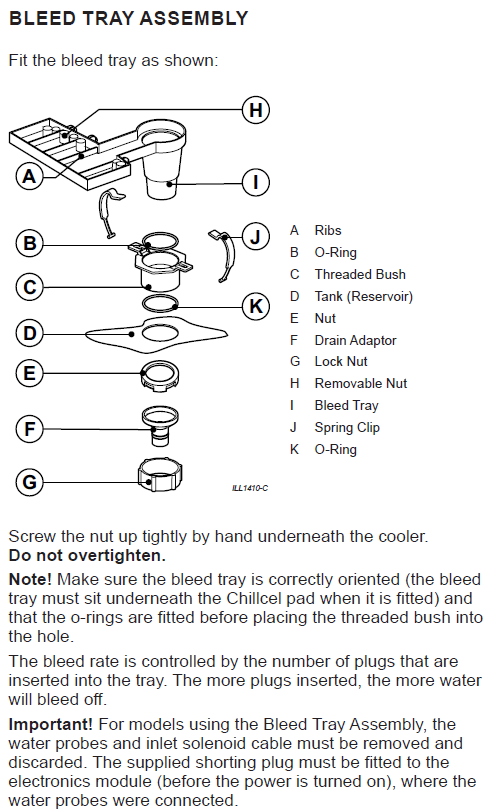

CONFIGURATION OF BLEED TRAY WITH SHORTING PLUG

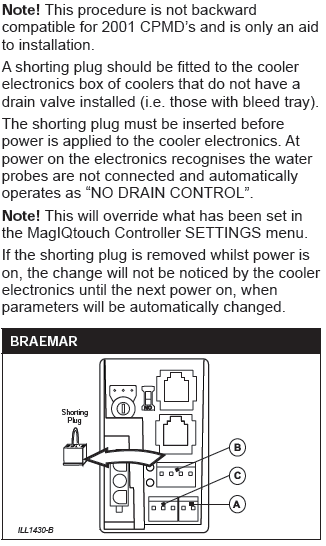

BRAEMAR BMQ LCQ LCS LCQI LPQI AND COOLAIR CPL CPQ

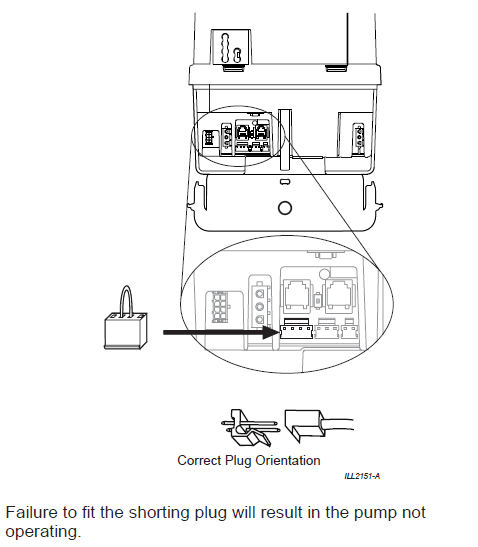

CONFIGURATION OF BLEED TRAY WITH SHORTING PLUG LCQ LCS BMQ LCB CPQ CPL

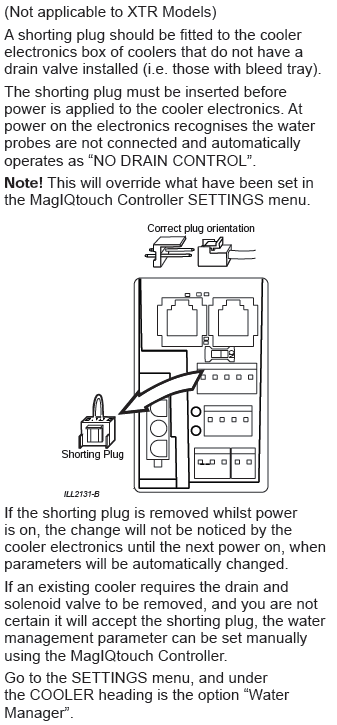

CONFIGURATION OF BLEED TRAY WITH SHORTING PLUG LCQi LPQi

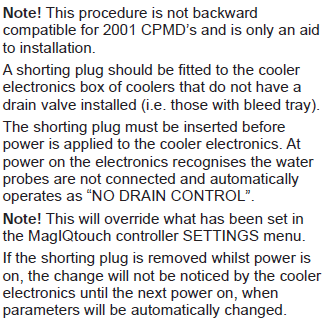

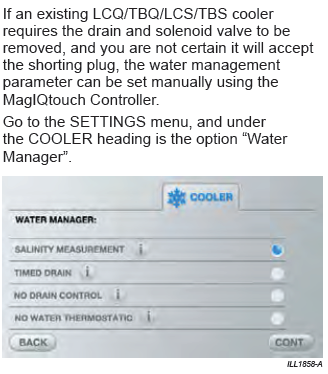

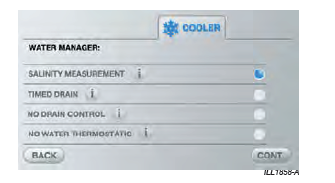

If using the bleed tray option select "NO DRAIN CONTROL" option
