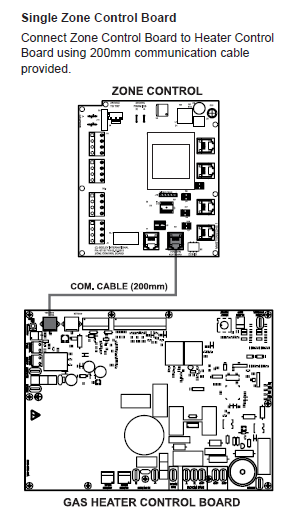

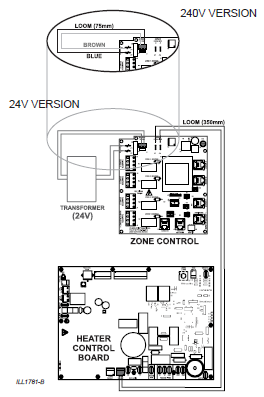

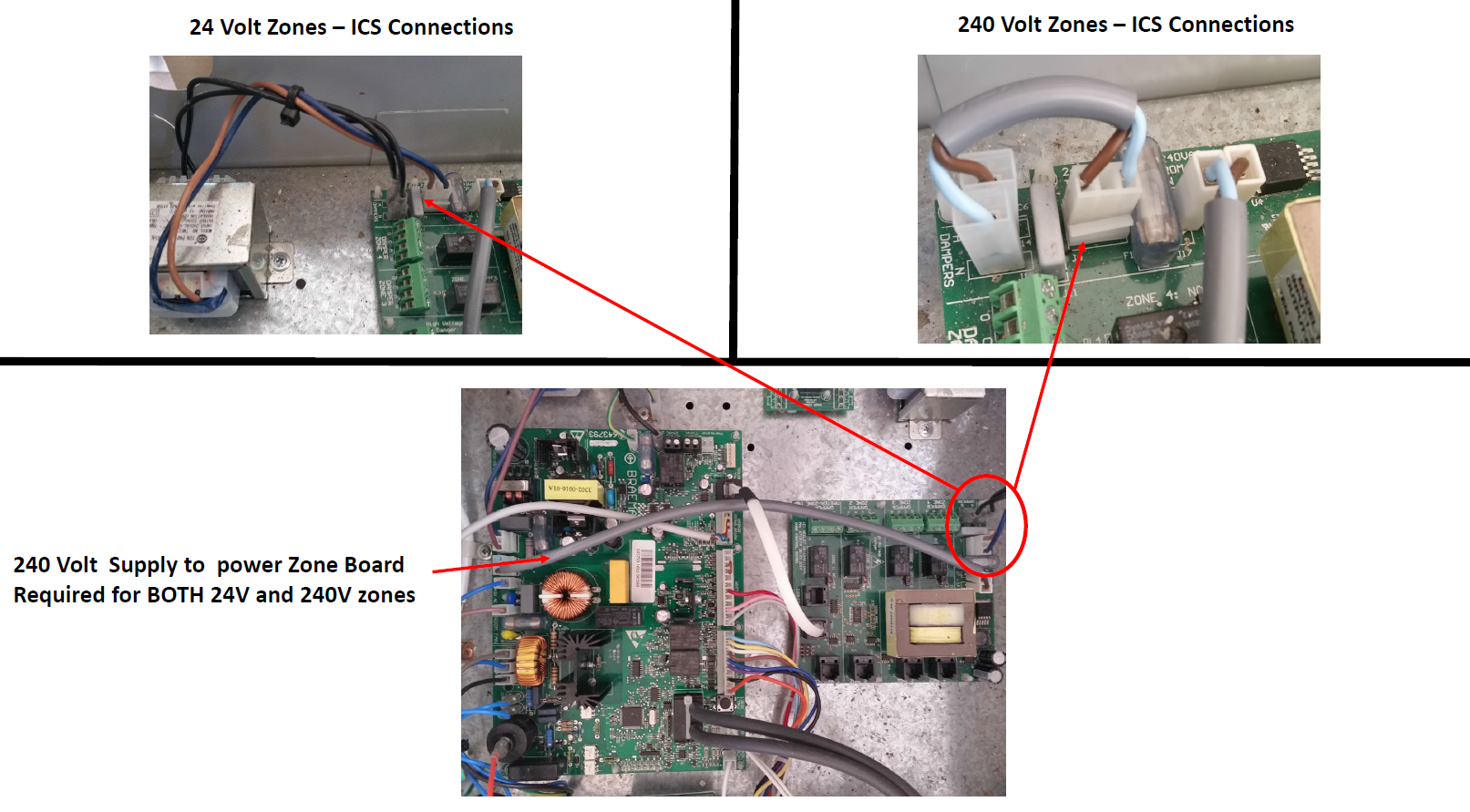

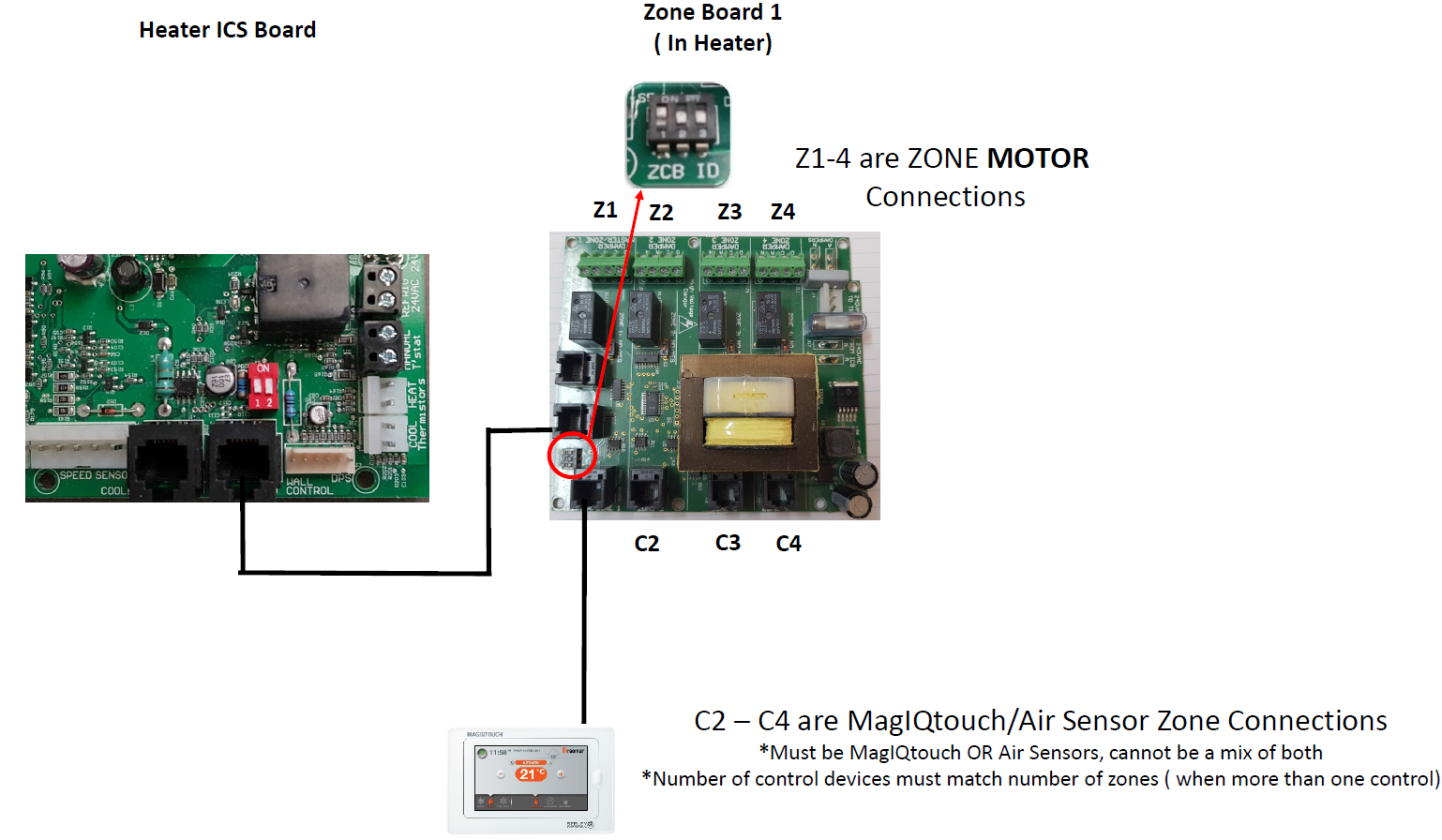

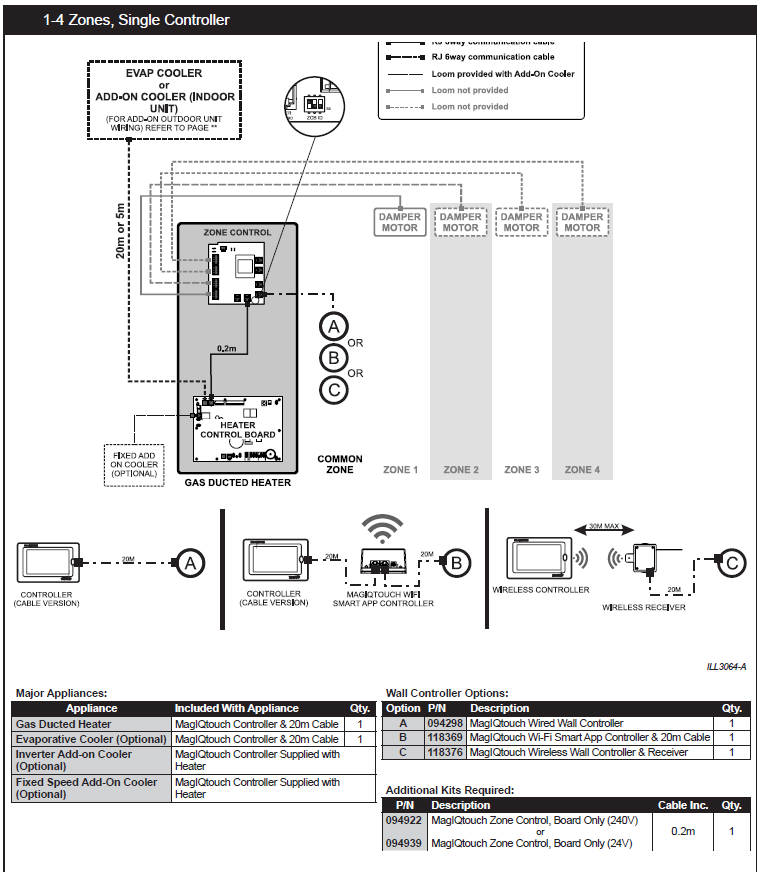

TQ 24 Volt and 240 Volt Single Zone Board Connections Images and Diagrams
TQ 24 Volt and 240 Volt Single Zone Board Connections Images and Diagrams Print
Modified on: Tue, 4 Apr, 2023 at 10:37 AM
