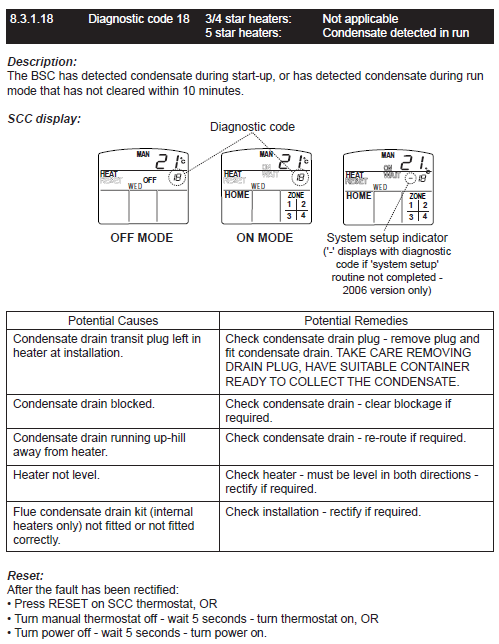

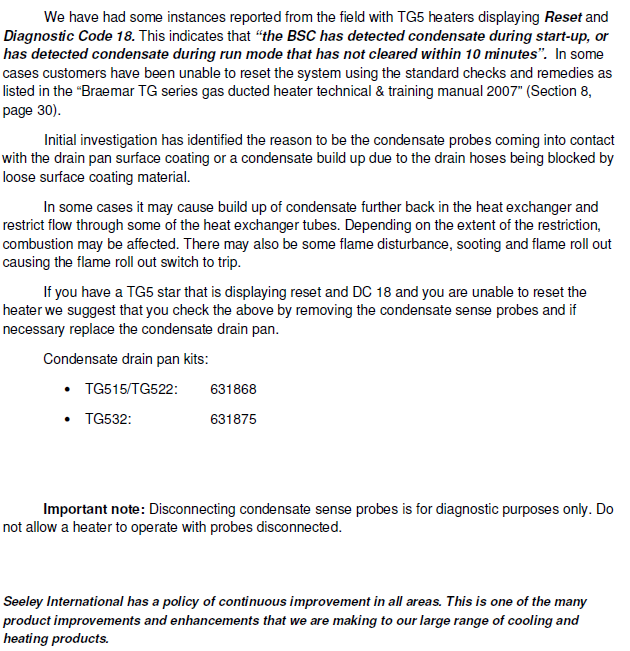

TG5 FC18 Condensate Detected at Probes (pre-condensate pressure switch detection June 2007 and earlier)
⚠️ Safety Notice – Gas Heating Products
This appliance must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.
Before commencing work, complete a task-specific risk assessment and ensure gas and electrical safety requirements, ventilation provisions, safe access, adequate service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.
Particular care must be taken when working around gas systems, electrical components, combustion products, hot surfaces, moving parts, roof spaces, ceiling spaces and confined spaces.
Do not proceed if safe access, required clearances, ventilation requirements, confined space risks or appropriate safety controls cannot be achieved and maintained.
Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.
NB:
Kit Drain Pan Pt# 631868 no longer available
Kit Drain Pan Pt# 631875 no longer available
Note: only applicable to units using condensate probes - pre-condensate pressure switch detection June 2007 and earlier
NB:
Kit Drain Pan Pt# 631868 no longer available
Kit Drain Pan Pt# 631875 no longer available
