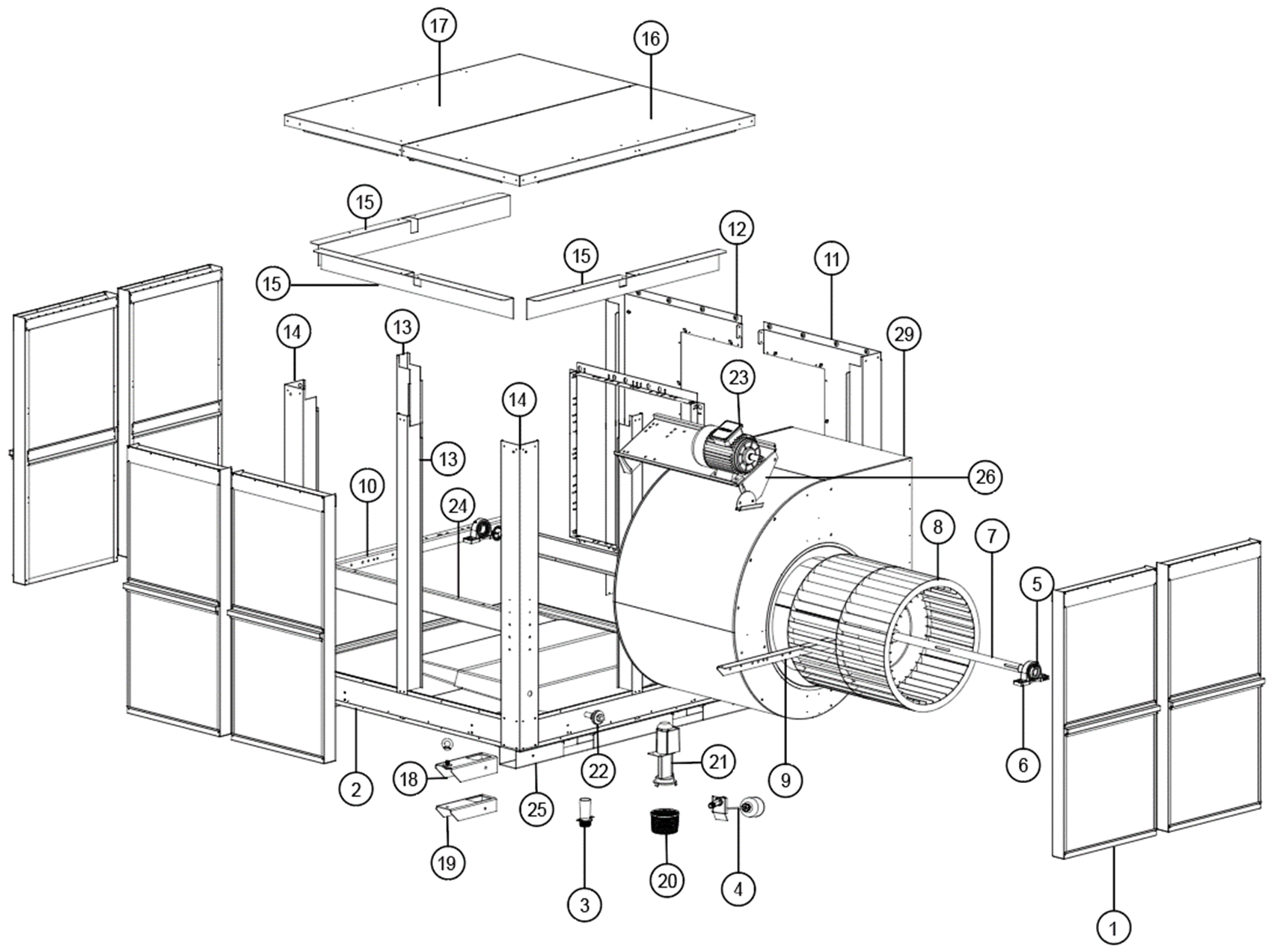

AL OR Coolers - Seeley manufactured Aira Range Spare Parts
| DISCHARGE ORIENTATION | ||||||||||||
| SIDE | DOWN | TOP | ||||||||||
| QTY | QTY | QTY | ||||||||||
| Comments | Item number | Part number | Description | AL18 | AL25 | AL30 | AL18 | AL25 | AL30 | AL18 | AL25 | AL30 |
| PAD FRAME ASSEMBLIES WITH NO PAD COVERS | 1 | AL160-2 | PAD FRAME ASSY AL18/HCV12/16 | 3 | - | - | 3 | - | - | 3 | - | - |
| AL160-4 | PAD FRAME ASSY AL25 | - | 6 | - | - | 6 | - | - | 6 | - | ||
| AL160-5 | PAD FRAME ASSY NARROW AL30 | - | - | 4 | - | - | 4 | - | - | 4 | ||
| AL160-6 | PAD FRAME ASSY WIDE AL30 | - | - | 2 | - | - | 2 | - | - | 2 | ||
| PAD FRAME ASSEMBLIES WITH PAD COVERS | 1 | AL160-2PC | PAD FRAME ASSY AL18 PAD COVER | 3 | - | - | 3 | - | - | 3 | - | - |
| AL160-4PC | PAD FRAME ASSY AL25 PAD COVER | - | 6 | - | - | 6 | - | - | 6 | - | ||
| AL160-5PC | PAD FRAME ASSY NARROW AL30 PAD | - | - | 4 | - | - | 4 | - | - | 4 | ||
| AL160-6PC | PAD FRAME ASSY WIDE AL30 PAD | - | - | 2 | - | - | 2 | - | - | 2 | ||
| 2 | 9658124 | BASE MEMBER AL18 | 4 | - | - | 4 | - | - | 4 | - | - | |
| 9658133 | AL25 BASE MEMBER | - | 4 | - | - | 4 | - | - | 4 | - | ||
| 9658130 | AL30 BASE MEMBER - LONG | - | - | 2 | - | - | 2 | - | - | 2 | ||
| AC8426 | BASE MEMBER 90D-142T | - | - | 2 | - | - | 2 | - | - | 2 | ||
| 3 | 608884 | TUBE OVERFLOW NB40 M25 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | TCL620 | FLOAT VALVE ASSEMBLIES RCA/TCL | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 020803 | FLOAT VALVE ONLY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 020802 | FLOAT ONLY**** | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 5 | PB234 | BEARING 1", YAR205-100-2F | 2 | - | - | 2 | - | - | 2 | - | - | |
| PB006 | BEARING 1-1/2", YET208-108 | - | 2 | 2 | - | 2 | 2 | - | 2 | 2 | ||
| 6 | PB005 | BEARING 1" PILLOW BLOCK, P205 | 2 | - | - | 2 | - | - | 2 | - | - | |
| 841885 | PILLOW BLOCK TR 1.5" P208 | - | 2 | 2 | - | 2 | 2 | - | 2 | 2 | ||
| 7 | PS216 | SHAFT SS 1" X 665lg - AL18 | 1 | - | - | 1 | - | - | 1 | - | - | |
| PS118 | SHAFT S/S 1 1/2" x 985 lge | - | 1 | - | - | 1 | - | - | 1 | - | ||
| PS950 | SHAFT SS 1 1/2" X 1110LG AL30 | - | - | 1 | - | - | 1 | - | - | 1 | ||
| 8 | PB749 | BLOWER WHEEL 450MM X 457MM | 1 | - | - | 1 | - | - | 1 | - | - | |
| PB723 | BLOWER WHEEL 630MM X 635MM (2 | - | 1 | - | - | 1 | - | - | 1 | - | ||
| PB724 | BLOWER WHEEL 800MM W X 762MM D | - | - | 1 | - | - | 1 | - | - | 1 | ||
| 9 | CELDEC41ALH | BEARING RAILS AL15S AL18S LH | 1 | - | - | - | - | - | - | - | - | |
| CELDEC07LHPTD | BEARING RAIL AL25 D/S/T LH PTD | - | 1 | 1 | - | 1 | 1 | - | 1 | 1 | ||
| CELDEC49ALH | BEARING RAIL AL18D LH | - | - | - | 1 | - | - | - | - | - | ||
| CELDEC82ALH | BEARING RAILS AL18 LH | - | - | - | - | - | - | 1 | - | - | ||
| 10 | CELDEC41ARH | BEARING RAILS AL15S AL18S RH | 1 | - | - | - | - | - | - | - | - | |
| CELDEC07RHPTD | BEARING RAIL AL25 D/S/T RH PTD | - | 1 | 1 | - | 1 | 1 | - | 1 | 1 | ||
| CELDEC49ARH | BEARING RAIL AL18D RH | - | - | - | 1 | - | - | - | - | - | ||
| CELDEC82ARH | BEARING RAILS AL18 RH | - | - | - | - | - | - | 1 | - | - | ||
| 11 | 9658078 | AL18 LH FRONT CORNER POST | 1 | - | - | - | - | - | - | - | - | |
| 9658132 | AL25 LH CORNER POST SD | - | 1 | - | - | - | - | - | - | - | ||
| CELDEC22LH | FRONT CRN PILLAR | - | - | 1 | - | - | - | - | - | - | ||
| CELDEC43LH | FRONT CRN PILLAR LH | - | - | - | 1 | - | - | 1 | - | - | ||
| CELDEC02LH | POST CORNER FRONT HCV35 LH | - | - | - | - | 1 | - | - | 1 | - | ||
| CELDEC22LH | FRONT CRN PILLAR | - | - | - | - | - | 1 | - | - | 1 | ||
| 12 | 9658077 | AL18 RH FRONT CORNER POST | 1 | - | - | - | - | - | - | - | - | |
| 9658131 | AL25 RH CORNER POST SD | - | 1 | - | - | - | - | - | - | - | ||
| CELDEC22RH | FRONT CRN PILLAR | - | - | 1 | - | - | - | - | - | - | ||
| CELDEC43RH | FRONT CRN PILLAR RH | - | - | - | 1 | - | - | 1 | - | - | ||
| CELDEC02RH | POST CORNER FRONT HCV35 RH | - | - | - | - | 1 | - | - | 1 | |||
| CELDEC22RH | FRONT CRN PILLAR | - | - | - | - | - | 1 | - | - | 1 | ||
| 13 | CELDEC03 | PAD DIVIDERS AL25 | - | 3 | - | - | 3 | - | - | 3 | ||
| CELDEC23 | PAD DIVIDER | - | - | 3 | - | - | 3 | - | - | 3 | ||
| 14 | CELDEC45 | REAR CRN PILLAR | 2 | - | - | 2 | - | - | - | - | - | |
| CELDEC45TOP | REAR CRN PILLAR AL18T | - | - | - | - | - | - | 2 | - | - | ||
| CELDEC01 | REAR CORNER POST AL25 | - | 2 | - | - | 2 | - | - | 2 | - | ||
| CELDEC21 | REAR CRN PILLAR | - | - | 2 | - | - | 2 | - | - | 2 | ||
| 15 | CELDEC73 | LOUVRE SPLASH GUARD NARROW | - | 3 | 2 | - | 3 | 2 | - | 3 | 2 | |
| CELDEC72 | WIDE LOUVRE SPLASHGUARD | - | - | 1 | - | - | 1 | - | - | 1 | ||
| SINGLE PIECE CABINET TOP (AL18) | 16 | 9658076 | CAB TOP AL18 | 1 | - | - | 1 | - | - | - | - | - |
| CELDEC62 | COVER TOP AL18 | - | - | - | - | - | - | 1 | - | - | ||
| 9658136 | AL25 COVER TOP HALVES S&D LH | - | 1 | - | - | 1 | - | - | - | - | ||
| CELDEC10LH | COVER TOP HALF LH AL25T | - | - | - | - | - | - | - | 1 | - | ||
| 9658105 | TOP COVER HALF AL30 D/S | - | - | 1 | - | - | 1 | - | - | - | ||
| CELDEC29TOPLH | COVER TOP AL30T LH | - | - | - | - | - | - | - | - | 1 | ||
| 17 | 9658135 | AL25 COVER TOP HALVES S&D RH | - | 1 | - | - | 1 | - | - | - | - | |
| CELDEC10RH | COVER TOP HALF RH AL25T | - | - | - | - | - | - | - | 1 | - | ||
| 9658104 | TOP COVER HALF AL30 D & S | - | - | 1 | - | - | 1 | - | - | - | ||
| CELDEC29TOPRH | COVER TOP AL30T RH | - | - | - | - | - | - | - | - | 1 | ||
| 18 | 9658098 | AIRA LIFTING BEAM PART1 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 19 | 9658099 | AIRA LIFTING BEAM PART2 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 20 | 999293 | PUMP BASKET MOULDED | - | 1 | 1 | - | 1 | 1 | - | 1 | 1 | |
| 21 | 110776 | PUMP 230/50 1500MM B/LACE SO | 1 | - | - | 1 | - | - | 1 | - | - | |
| 999294 | PUMP LRG IND | - | 1 | 1 | - | 1 | 1 | - | 1 | 1 | ||
| 22 | PT375 | OUTLET TANK FEMALE 15MM | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | PM215 | MOTOR 3.0/1.0KW 2SP DUA L IP55 | 1 | - | - | 1 | - | - | 1 | - | - | |
| PM217 | MOTOR 5.5/1.8KW 2SP DUAL IP55 | - | 1 | - | - | 1 | - | - | 1 | - | ||
| PM219 | MOTOR 7.5/2.2KW 2SP DUAL IP55 | - | - | 1 | - | - | 1 | - | - | 1 | ||
| 24 | CELDEC48A | CROSSMEMBER AL15/18 | 1 | - | - | - | - | - | 2 | - | - | |
| AC8445-1PTD | CROSSMEMBER AL25 PTD | - | 2 | - | - | 2 | - | - | 2 | - | ||
| AC8446-1PTD | CROSSMEMBER AL30 PAINTED | - | - | 2 | - | - | 2 | - | - | 2 | ||
| 25 | 9658059 | BASE CHANNEL HCV SML CAB | 2 | - | - | 2 | - | - | 2 | - | - | |
| 9658070 | AL25 BASE STIFFENER | - | 2 | - | - | 2 | - | - | 2 | - | ||
| 9658096 | AL30 UNDER CAB STIFFENER RAIL | - | - | 2 | - | - | 2 | - | - | 2 | ||
| 26 | 9656780 | MOTOR MOUNT AL18 D/S/T PTD | 1 | - | - | 1 | - | - | 1 | - | - | |
| CELDEC19LHPTD | MOTOR MOUNT AL25 D/S PTD | - | 1 | - | - | 1 | - | - | - | - | ||
| CELDEC19RHPTD | MOUNT MOTOR AL25T PTD | - | - | - | - | - | - | - | 1 | - | ||
| CELDEC30LHPTD | MOTOR MOUNT AL30 D/S PTD | - | - | 1 | - | - | 1 | - | - | - | ||
| CELDEC30RHPTD | MOTOR MOUNT RH PTD | - | - | - | - | - | - | - | - | 1 | ||
