SD - DU OR Gas Heaters - Seeley manufactured Aira Range Spare Parts

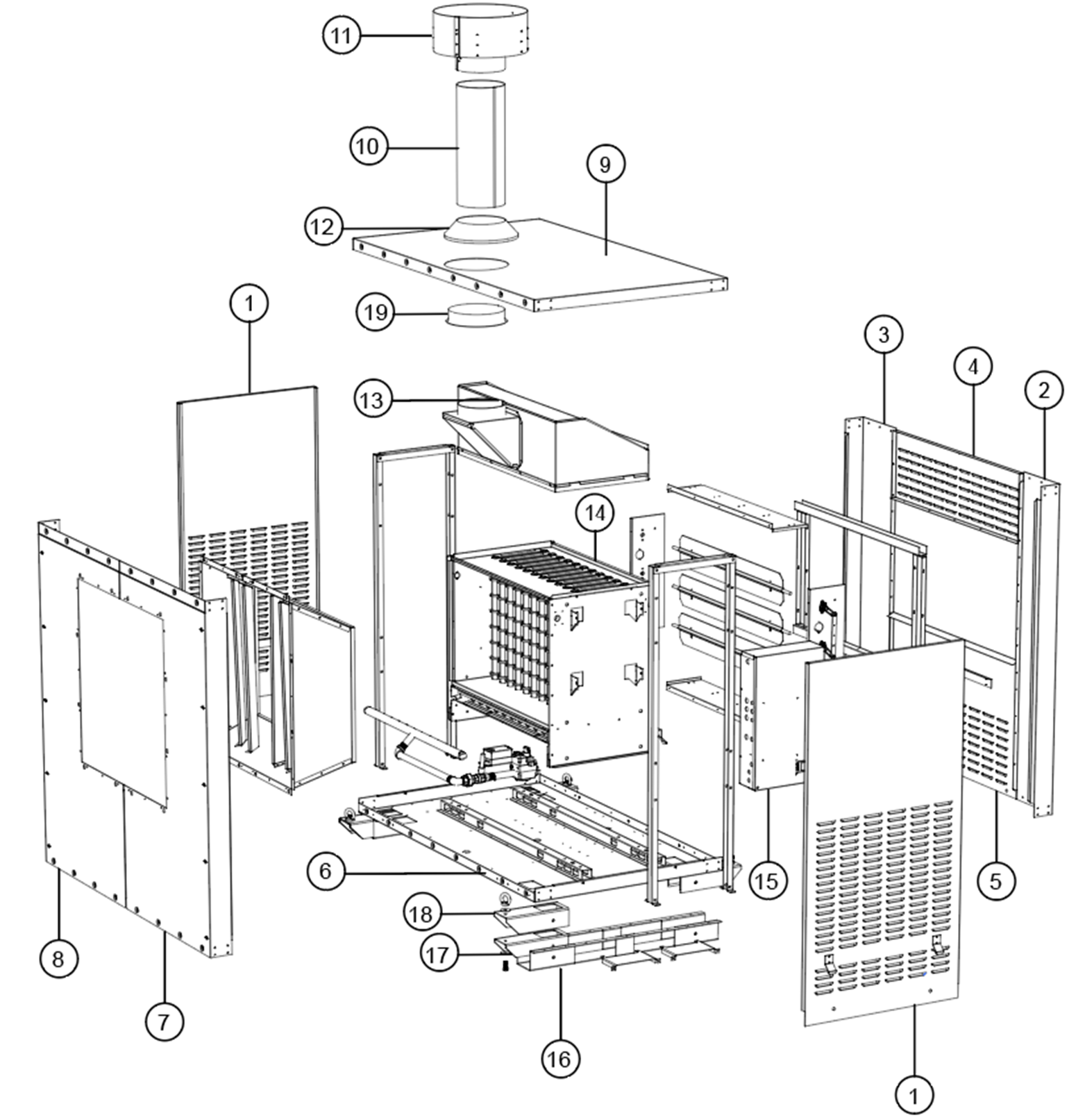

| Heater Cabinet Spare Parts | |||||||||
| Comments | Item number | Part number | Description | DU12 | DU16 | SD26 | SD30 | SD35 | SD40 |
| 1 | 9658048 | ACCESS PANEL SD SML CAB | 1 | 1 | - | - | - | - | |
| 1 | 9658113 | ACCESS PANEL SD MED CAB | - | - | 1 | 1 | - | - | |
| 1 | 9656479 | LARGE CAB ACCESS PANEL | - | - | - | - | 1 | 1 | |
| 2 | 9658039 | SML CAB CORNER PILLAR LH | 1 | 1 | - | - | - | - | |
| 2 | 9656683 | CORNER PILLAR NARROW MED CAB | - | - | 1 | 1 | - | - | |
| 2 | 9658082 | CORNER PILLAR NARROW LRG CAB | 1 | 1 | |||||
| 3 | 9658040 | SML CAB CORNER PILLAR RH | 1 | 1 | - | - | - | - | |
| 3 | 9656683 | CORNER PILLAR NARROW MED CAB | - | - | 1 | 1 | - | - | |
| 3 | 9658082 | CORNER PILLAR NARROW LRG CAB | - | - | - | - | 1 | 1 | |
| 4 | 9658042 | INFILL PANEL TOP SD SML CAB | 1 | 1 | - | - | - | - | |
| 4 | 9656704 | INFILL PANEL TOP SD MED CAB | - | - | 1 | 1 | - | ||
| 4 | 9658084 | PANEL INFILL UPPER LARGE CAB | - | - | - | - | 1 | 1 | |
| 5 | 9658041 | INFILL PANEL BOT SD SML CAB | 1 | 1 | - | - | - | - | |
| 5 | 9656703 | INFILL PANEL BOTTOM SD MED CAB | - | - | 1 | 1 | - | - | |
| 5 | 9658083 | PANEL INFILL LOWER LARGE CAB | - | - | - | - | 1 | 1 | |
| 6 | 9658043 | SMALL CAB SD BTM TRAY | 1 | 1 | - | - | - | - | |
| 6 | 9658109 | BASE PNL SD\BLWR BOX MED CAB | - | - | 1 | 1 | |||
| 6 | 9658093 | LARGE CAB SD/BLOWER BASE | - | - | - | - | 1 | 1 | |
| 7 | 9658050 | CORNER PILLAR WIDE B SML CAB | 1 | 1 | - | - | - | - | |
| 7 | 9656699 | DIVIDER PANEL LH MED CAB | - | - | 1 | 1 | - | - | |
| 7 | 9656485 | DIVIDER PANEL RH LRG CAB | - | - | - | - | 1 | 1 | |
| 8 | 9658049 | CORNER PILLAR WIDE A SML CAB | 1 | 1 | - | - | - | - | |
| 8 | 9656701 | DIVIDER PANEL RH MED CAB | - | - | 1 | 1 | - | - | |
| 8 | 9656486 | DIVIDER PANEL LH LRG CAB | - | - | - | - | 1 | 1 | |
| 9 | 9658051 | CABTOP HX SD SML CAB | 1 | 1 | - | - | - | - | |
| 9 | 9656702 | CABTOP HX SD MED CAB | - | - | 1 | 1 | - | - | |
| 9 | 9658079 | LARGE CAB TOP SD | - | - | - | - | 1 | 1 | |
| 10 | PF131 | FLUE EXTENSION ALUM. 6" X 60 | 1 | - | - | - | - | - | |
| 10 | PF132 | FLUE EXTENSION ALUM. 7" X 60 | - | 1 | - | - | - | - | |
| 10 | PF133 | FLUE EXTENSION ALUM. 8" X 60 | - | - | 1 | - | - | - | |
| 10 | PF135 | FLUE EXTENSION ALUM. 10" X 6 | - | - | - | 1 | 1 | 1 | |
| 11 | 150AC | 150 MM ALUMINIUM GAS COWL | 1 | - | - | - | - | - | |
| 11 | 175AC | 175 MM ALUMINIUM GAS COWL | - | 1 | - | - | - | - | |
| 11 | 200AC | 200 MM ALUMINIUM GAS COWL | - | - | 1 | - | - | - | |
| 11 | 250AC | 250 MM ALUMINIUM GAS COWL | - | - | - | 1 | 1 | 1 | |
| 12 | PF137 | RAIN COLLAR ALUM. TO SUIT 6" | 1 | - | - | - | - | - | |
| 12 | PF138 | RAIN COLLAR ALUM. TO SUIT 7" | - | 1 | - | - | - | - | |
| 12 | PF139 | RAIN COLLAR ALUM. TO SUIT 8" | - | - | 1 | ||||
| 12 | PF141 | RAIN COLLAR ALUM. TO SUIT 10" | - | - | - | 1 | 1 | 1 | |
| 13 | DU12-DDA | DRAFT DIVERTER ASSY DU12 | 1 | - | - | - | - | - | |
| 13 | DU16-DDA | DRAFT DIVERTER ASSY DU16 | - | 1 | - | - | - | - | |
| 13 | SD26-DDA | DRAFT DIVERTER ASSY SD26 | - | - | 1 | - | - | - | |
| 13 | SD30-DDA | DRAFT DIVERTER ASSY SD30 | - | - | - | 1 | - | - | |
| 13 | SD35-DDA | DRAFT DIVERTER ASSY SD35 | - | - | - | - | 1 | - | |
| 13 | SD40-DDA | DRAFT DIVERTER ASSY SD40 | - | - | - | - | - | 1 | |
| 14 | DU12-HXA | HX ASSY DU12 | 1 | - | - | - | - | - | |
| 14 | DU16-HXA | HX ASSY DU16 | - | 1 | - | - | - | - | |
| 14 | SD26-HXA | HX ASSY SD26 | - | - | 1 | - | - | - | |
| 14 | SD30-HXA | HX ASSY SD30 | - | - | - | 1 | - | ||
| 14 | SD35-HXA | HX ASSY SD35 | - | - | - | - | 1 | - | |
| 14 | SD40-HXA | HX ASSY SD40 | - | - | - | - | - | 1 | |
| 15 | WD-CH637-M | CONTROL BOX SD\DU\HCV MASTER | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 9658053 | HEATER UNDER CAB STIFFENR RAIL | 2 | 2 | 2 | 2 | 2 | 2 | |
| 17 | 9658099 | AIRA LIFTING BEAM PART2 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 18 | 9658098 | AIRA LIFTING BEAM PART1 | 4 | 4 | 4 | 4 | 4 | 4 | |

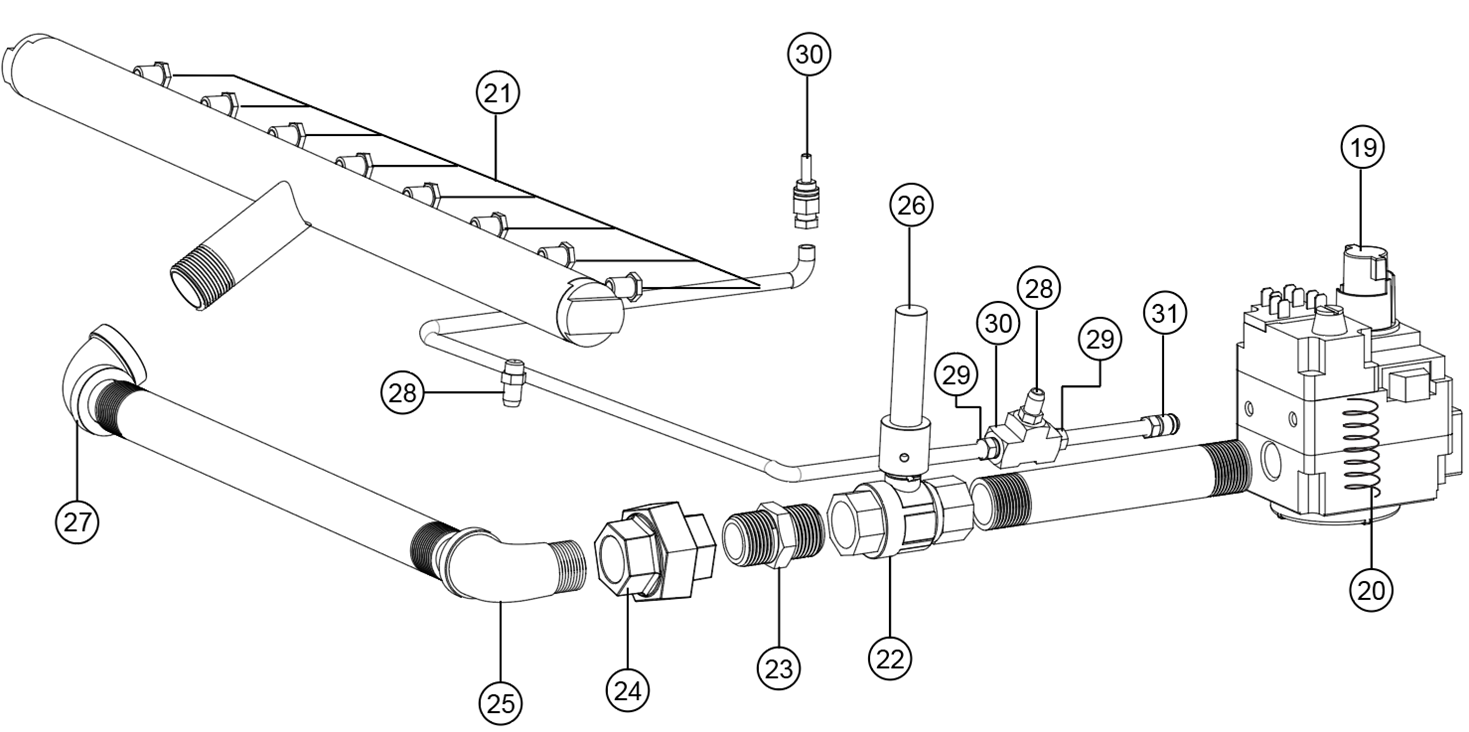

| Gas Train Spare Parts (Natural Gas) | |||||||||
| Comments | Item number | Part number | Description | DU12 | DU16 | SD26 | SD30 | SD35 | SD40 |
| 19 | PC332 | WR GAS VALVE 3/4 24V 36C68C- | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | NOT REQUIRED | - | - | - | - | - | - | - | |
| 21 | PB213 | BURNER SPUD #44 - NATURAL GAS | 6 | 8 | 12 | 14 | 17 | 19 | |
| 22 | PV051 | BALL VALVE 3/4" ITAP ART 066 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | PN037 | NIPPLE GAL HEX 3/4" | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | PU009 | UNION BARREL GAL BS 3/4" F/F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | PB419 | ELBOW GAL 3/4" M & F 90o | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 9656325 | MODULATING COUPLING SHAFT SML | 1 | 1 | 1 | 1 | 1 | 1 | |
| 27 | PE071 | ELBOW GAL 3/4" F & F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 28 | PP238 | PRESSURE TEST POINT 1/8" G09 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 29 | PT055 | UNION BRASS 1/4""X 1/8""B INC | 2 | 2 | 2 | 2 | 2 | 2 | |
| 30 | PB773 | PILOT INJECTOR NG 0.57mm | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | PZ643 | 1/8NPT x 1/4 NUT & OLIVE | 1 | 1 | 1 | 1 | 1 | 1 | |
| Gas Train Spare Parts (Propane) | |||||||||
| Comments | Item number | Part number | Description | DU12 | DU16 | SD26 | SD30 | SD35 | SD40 |
| 19 | PV326 | WR GAS VALVE 36H32-409 24V | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | 628790 | KIT CONV NG-LPG W01038 WR | 1 | 1 | 1 | 1 | 1 | 1 | |
| 21 | PB209 | BURNER SPUD #55 DRILL SIZE | 6 | 8 | - | - | - | 19 | |
| 21 | 648323 | INJECTOR ULPG DIA 1.20mm | - | - | 12 | 14 | 17 | - | |
| 22 | PV051 | BALL VALVE 3/4" ITAP ART 066 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | PN037 | NIPPLE GAL HEX 3/4" | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | PU009 | UNION BARREL GAL BS 3/4" F/F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | PB419 | ELBOW GAL 3/4" M & F 90o | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 9656325 | MODULATING COUPLING SHAFT SML | 1 | 1 | 1 | 1 | 1 | 1 | |
| 27 | PE071 | ELBOW GAL 3/4" F & F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 28 | PP238 | PRESSURE TEST POINT 1/8" G09 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 29 | PT055 | UNION BRASS 1/4""X 1/8""B INC | 2 | 2 | 2 | 2 | 2 | 2 | |
| 30 | PB774 | PILOT INJECTOR LPG SUITS PB772 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | PZ643 | 1/8NPT x 1/4 NUT & OLIVE | 1 | 1 | 1 | 1 | 1 | 1 | |

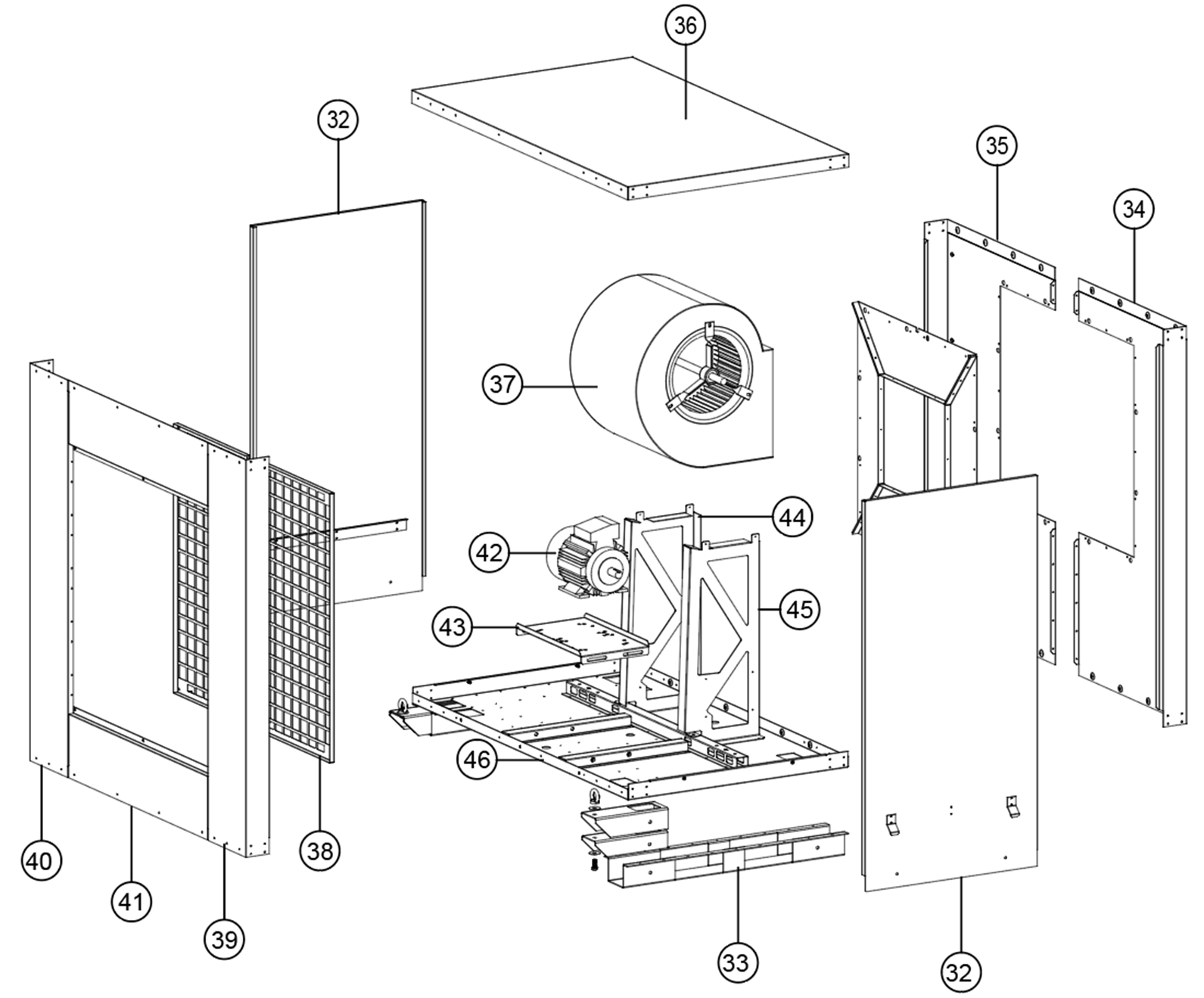

| Blower Box Cabinet Spare Parts | |||||||||
| Comments | Item number | Part number | Description | DU12 | DU16 | SD26 | SD30 | SD35 | SD40 |
| 32 | 9658054 | ACCESS PANEL BLWER BOX SML CAB | 2 | 2 | - | - | - | - | |
| 32 | 9656688 | ACCESS PANEL BLWR BOX MED CAB | - | - | 2 | 2 | - | - | |
| 32 | 9658127 | ACCESS PANEL BLWR BOX LRG CAB | - | - | - | - | 2 | 2 | |
| 33 | 9658053 | HEATER UNDER CAB STIFFENR RAIL | 2 | 2 | 2 | 2 | 2 | 2 | |
| 34 | 9658049 | CORNER PILLAR WIDE A SML CAB | 1 | 1 | - | - | - | - | |
| 34 | 9656701 | DIVIDER PANEL RH MED CAB | - | - | 1 | 1 | - | - | |
| 34 | 9656486 | DIVIDER PANEL LH LRG CAB | - | - | - | - | 1 | 1 | |
| 35 | 9658050 | CORNER PILLAR WIDE B SML CAB | 1 | 1 | - | - | - | - | |
| 35 | 9656699 | DIVIDER PANEL LH MED CAB | - | - | 1 | 1 | - | - | |
| 35 | 9656485 | DIVIDER PANEL RH LRG CAB | - | - | - | - | 1 | 1 | |
| 36 | 9658056 | CABTOP BLOWER BOX SML CAB | 1 | 1 | - | - | - | - | |
| 36 | 9656685 | CABTOP BLOWER BOX MED CAB | - | - | 1 | 1 | - | - | |
| 36 | 9658091 | LARGE CABTOP BLOWER BOX | - | - | - | - | 1 | 1 | |
| 37 | PF006 | BLOWER AT12/12 25mm SHAFT SIMP | 1 | 1 | - | - | - | - | |
| 37 | PB806 | BLOWER ASSY 15" X 15"" WITH | - | - | 1 | 1 | - | - | |
| 37 | PB003 | BLOWER AT15/11 DUPLEX | - | - | - | - | 1 | 1 | |
| 38 | 9658138 | GRILL BLOWER BOX SML CAB | 1 | 1 | - | - | - | - | |
| 38 | 9656698 | GRILL BLOWER BOX MED CAB | - | - | 1 | 1 | - | - | |
| 38 | 9656483 | GRILL BLOWER BOX LRG CAB | - | - | - | - | 1 | 1 | |
| 39 | 9658049 | CORNER PILLAR WIDE A SML CAB | 1 | 1 | - | - | - | - | |
| 39 | 9656683 | CORNER PILLAR NARROW MED CAB | - | - | 1 | 1 | - | - | |
| 39 | 9658082 | CORNER PILLAR NARROW LRG CAB | - | - | - | - | 1 | 1 | |
| 40 | 9658039 | SML CAB CORNER PILLAR LH | 1 | 1 | - | - | - | - | |
| 40 | 9656683 | CORNER PILLAR NARROW MED CAB | - | - | 1 | 1 | - | - | |
| 40 | 9658082 | CORNER PILLAR NARROW LRG CAB | - | - | - | - | 1 | 1 | |
| 41 | 9658057 | INFILL PNL BOT BLR BOX SML CAB | 1 | 1 | - | - | - | - | |
| 41 | 9656689 | INFILL PNL BOT BLWR BOX MED CA | - | - | 1 | 1 | - | - | |
| 41 | 9658128 | INFILL PNL BLOWER BOX LRG CAB | - | - | - | - | 1 | 1 | |
| 42 | 818597 | MOTOR B56 1100W 2SP 230V | 1 | 1 | - | - | - | - | |
| 42 | PM214 | MOTOR 2.2/.75KW 2SP DUAL IP55 | - | - | 1 | - | - | - | |
| 42 | PM215 | MOTOR 3.0/1.0KW 2SP DUA L IP55 | - | - | - | 1 | - | - | |
| 42 | PM216 | MOTOR 4.0/1.3KW 2SP DUAL IP55 | - | - | - | - | 1 | - | |
| 42 | PM207 | MOTOR 5.5KW 1SP 3PH FOOT ALU | - | - | - | - | - | 1 | |
| 43 | 9658052 | BLOWER BOX MOTOR MOUNT | 1 | 1 | 1 | 1 | 1 | 1 | |
| 44 | 9658088 | SMALL SD BLOWER LH SUPPORT | 1 | 1 | - | - | - | - | |
| 44 | 9658069 | MEDIUM SD BLOWER LH SUPPORT | - | - | 1 | 1 | - | - | |
| 44 | 9656484 | AIRA LARGE BLOWER LH SUPPORT | - | - | - | - | 1 | 1 | |
| 45 | 9658085 | SMALL SD BLOWER RH SUPPORT | 1 | 1 | - | - | - | - | |
| 45 | 9658072 | MEDIUM SD BLOWER RH SUPPORT | - | - | 1 | 1 | - | - | |
| 45 | 9656488 | AIRA LARGE BLOWER RH SUPPORT | - | - | - | - | 1 | 1 | |
| 46 | 9658043 | SMALL CAB SD BTM TRAY | 1 | 1 | - | - | - | - | |
| 46 | 9658109 | BASE PNL SD\BLWR BOX MED CAB | - | - | 1 | 1 | - | - | |
| 46 | 9658093 | LARGE CAB SD/BLOWER BASE | - | - | - | - | 1 | 1 | |
