HCV OR Gas Heaters / Coolers - Seeley manufactured Aira Range Spare Parts

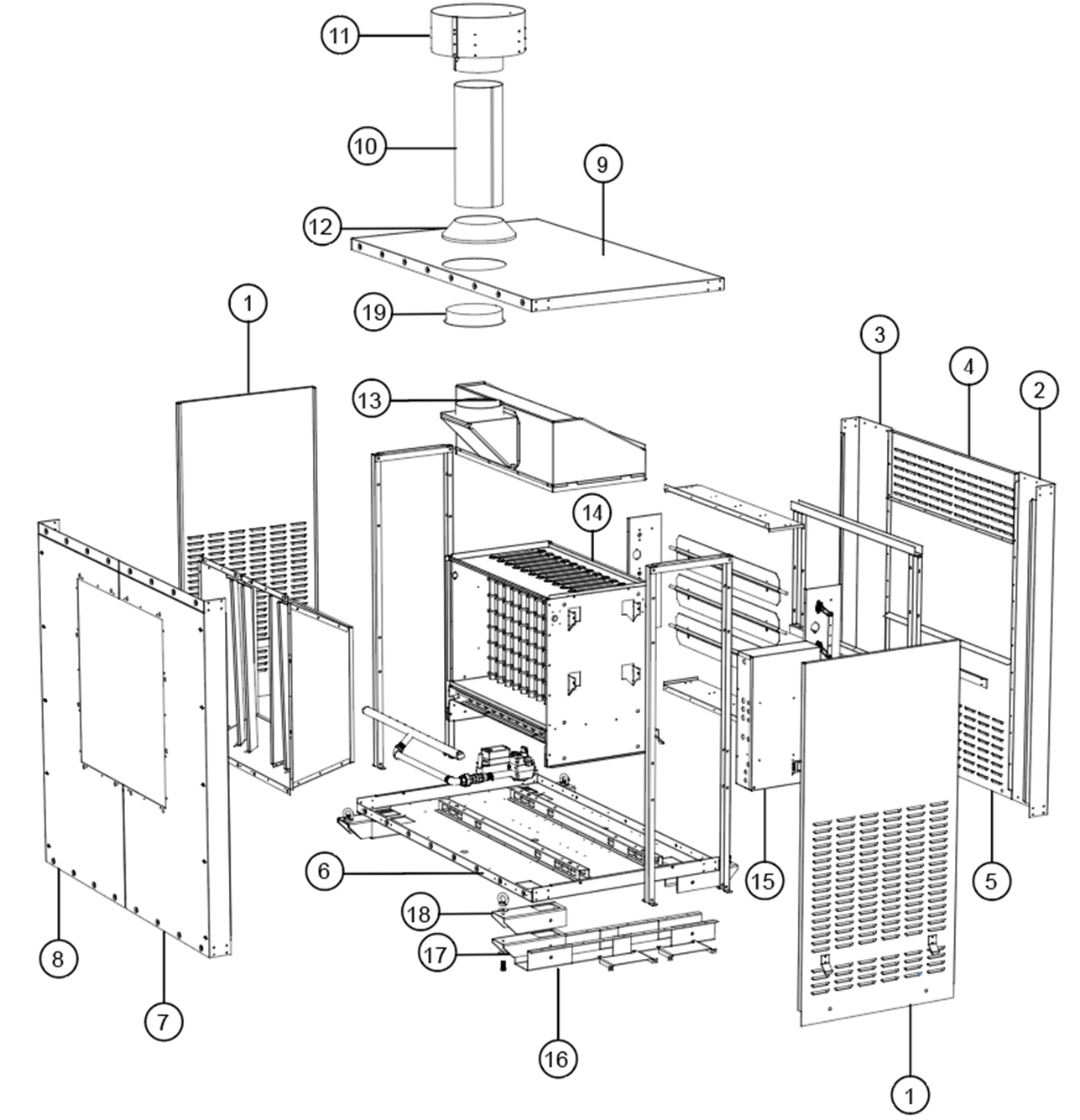

| Heater Section Cabinet Spare Parts | |||||||||
| Comments | Item number | Part number | Description | HCV12 | HCV16 | HCV26 | HCV30 | HCV35 | HCV40 |
| 1 | 9658048 | ACCESS PANEL SD SML CAB | 1 | 1 | - | - | - | - | |
| 1 | 9658113 | ACCESS PANEL SD MED CAB | - | - | 1 | 1 | - | - | |
| 1 | 9656479 | LARGE CAB ACCESS PANEL | - | - | - | - | 1 | 1 | |
| 2 | 9658039 | SML CAB CORNER PILLAR LH | 1 | 1 | - | - | - | - | |
| 2 | 9656683 | CORNER PILLAR NARROW MED CAB | - | - | 1 | 1 | - | - | |
| 2 | 9658082 | CORNER PILLAR NARROW LRG CAB | 1 | 1 | |||||
| 3 | 9658040 | SML CAB CORNER PILLAR RH | 1 | 1 | - | - | - | - | |
| 3 | 9656683 | CORNER PILLAR NARROW MED CAB | - | - | 1 | 1 | - | - | |
| 3 | 9658082 | CORNER PILLAR NARROW LRG CAB | - | - | - | - | 1 | 1 | |
| 4 | 9658042 | INFILL PANEL TOP SD SML CAB | 1 | 1 | - | - | - | - | |
| 4 | 9656704 | INFILL PANEL TOP SD MED CAB | - | - | 1 | 1 | - | ||
| 4 | 9658084 | PANEL INFILL UPPER LARGE CAB | - | - | - | - | 1 | 1 | |
| 5 | 9658041 | INFILL PANEL BOT SD SML CAB | 1 | 1 | - | - | - | - | |
| 5 | 9656703 | INFILL PANEL BOTTOM SD MED CAB | - | - | 1 | 1 | - | - | |
| 5 | 9658083 | PANEL INFILL LOWER LARGE CAB | - | - | - | - | 1 | 1 | |
| 6 | 9658043 | SMALL CAB SD BTM TRAY | 1 | 1 | - | - | - | - | |
| 6 | 9658109 | BASE PNL SD\BLWR BOX MED CAB | - | - | 1 | 1 | |||
| 6 | 9658093 | LARGE CAB SD/BLOWER BASE | - | - | - | - | 1 | 1 | |
| 7 | 9658050 | CORNER PILLAR WIDE B SML CAB | 1 | 1 | - | - | - | - | |
| 7 | 9656699 | DIVIDER PANEL LH MED CAB | - | - | 1 | 1 | - | - | |
| 7 | 9656485 | DIVIDER PANEL RH LRG CAB | - | - | - | - | 1 | 1 | |
| 8 | 9658049 | CORNER PILLAR WIDE A SML CAB | 1 | 1 | - | - | - | - | |
| 8 | 9656701 | DIVIDER PANEL RH MED CAB | - | - | 1 | 1 | - | - | |
| 8 | 9656486 | DIVIDER PANEL LH LRG CAB | - | - | - | - | 1 | 1 | |
| 9 | 9658051 | CABTOP HX SD SML CAB | 1 | 1 | - | - | - | - | |
| 9 | 9656702 | CABTOP HX SD MED CAB | - | - | 1 | 1 | - | - | |
| 9 | 9658079 | LARGE CAB TOP SD | - | - | - | - | 1 | 1 | |
| 10 | PF131 | FLUE EXTENSION ALUM. 6" X 60 | 1 | - | - | - | - | - | |
| 10 | PF132 | FLUE EXTENSION ALUM. 7" X 60 | - | 1 | - | - | - | - | |
| 10 | PF133 | FLUE EXTENSION ALUM. 8" X 60 | - | - | 1 | - | - | - | |
| 10 | PF135 | FLUE EXTENSION ALUM. 10" X 6 | - | - | - | 1 | 1 | 1 | |
| 11 | 150AC | 150 MM ALUMINIUM GAS COWL | 1 | - | - | - | - | - | |
| 11 | 175AC | 175 MM ALUMINIUM GAS COWL | - | 1 | - | - | - | - | |
| 11 | 200AC | 200 MM ALUMINIUM GAS COWL | - | - | 1 | - | - | - | |
| 11 | 250AC | 250 MM ALUMINIUM GAS COWL | - | - | - | 1 | 1 | 1 | |
| 12 | PF137 | RAIN COLLAR ALUM. TO SUIT 6" | 1 | - | - | - | - | - | |
| 12 | PF138 | RAIN COLLAR ALUM. TO SUIT 7" | - | 1 | - | - | - | - | |
| 12 | PF139 | RAIN COLLAR ALUM. TO SUIT 8" | - | - | 1 | ||||
| 12 | PF141 | RAIN COLLAR ALUM. TO SUIT 10" | - | - | - | 1 | 1 | 1 | |
| 13 | DU12-DDA | DRAFT DIVERTER ASSY DU12 | 1 | - | - | - | - | - | |
| 13 | DU16-DDA | DRAFT DIVERTER ASSY DU16 | - | 1 | - | - | - | - | |
| 13 | SD26-DDA | DRAFT DIVERTER ASSY SD26 | - | - | 1 | - | - | - | |
| 13 | SD30-DDA | DRAFT DIVERTER ASSY SD30 | - | - | - | 1 | - | - | |
| 13 | SD35-DDA | DRAFT DIVERTER ASSY SD35 | - | - | - | - | 1 | - | |
| 13 | SD40-DDA | DRAFT DIVERTER ASSY SD40 | - | - | - | - | - | 1 | |
| 14 | DU12-HXA | HX ASSY DU12 | 1 | - | - | - | - | - | |
| 14 | DU16-HXA | HX ASSY DU16 | - | 1 | - | - | - | - | |
| 14 | SD26-HXA | HX ASSY SD26 | - | - | 1 | - | - | - | |
| 14 | SD30-HXA | HX ASSY SD30 | - | - | - | 1 | - | ||
| 14 | SD35-HXA | HX ASSY SD35 | - | - | - | - | 1 | - | |
| 14 | SD40-HXA | HX ASSY SD40 | - | - | - | - | - | 1 | |
| 15 | WD-CH637-M | CONTROL BOX SD\DU\HCV MASTER | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 9658053 | HEATER UNDER CAB STIFFENR RAIL | 2 | 2 | 2 | 2 | 2 | 2 | |
| 17 | 9658099 | AIRA LIFTING BEAM PART2 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 18 | 9658098 | AIRA LIFTING BEAM PART1 | 4 | 4 | 4 | 4 | 4 | 4 | |

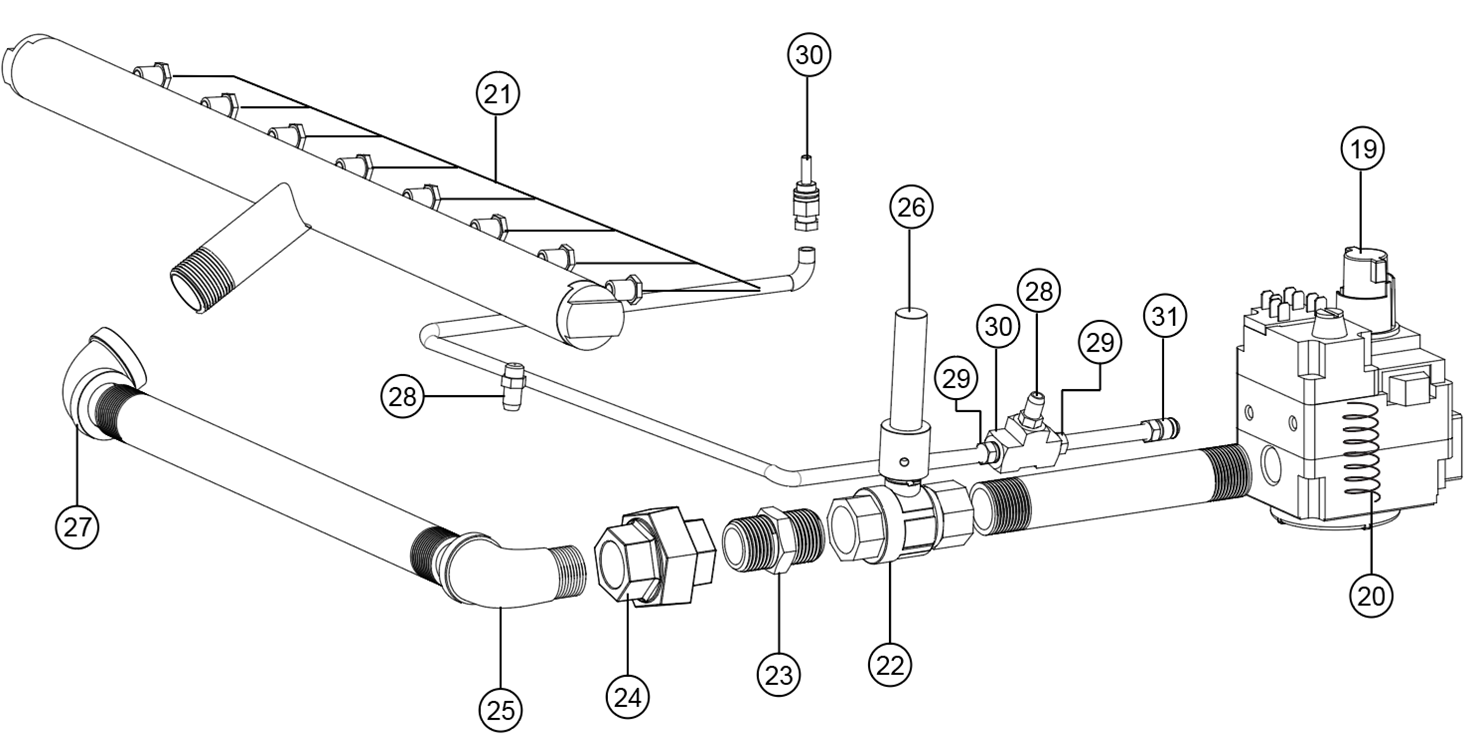

| Gas Train Spare Parts (Natural Gas) | |||||||||
| Comments | Item number | Part number | Description | HCV12 | HCV16 | HCV26 | HCV30 | HCV35 | HCV40 |
| 19 | PC332 | WR GAS VALVE 3/4 24V 36C68C- | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | NOT REQUIRED | - | - | - | - | - | - | - | |
| 21 | PB213 | BURNER SPUD #44 - NATURAL GAS | 6 | 8 | 12 | 14 | 17 | 19 | |
| 22 | PV051 | BALL VALVE 3/4" ITAP ART 066 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | PN037 | NIPPLE GAL HEX 3/4" | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | PU009 | UNION BARREL GAL BS 3/4" F/F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | PB419 | ELBOW GAL 3/4" M & F 90o | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 9656325 | MODULATING COUPLING SHAFT SML | 1 | 1 | 1 | 1 | 1 | 1 | |
| 27 | PE071 | ELBOW GAL 3/4" F & F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 28 | PP238 | PRESSURE TEST POINT 1/8" G09 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 29 | PT055 | UNION BRASS 1/4""X 1/8""B INC | 2 | 2 | 2 | 2 | 2 | 2 | |
| 30 | PB773 | PILOT INJECTOR NG 0.57mm | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | PZ643 | 1/8NPT x 1/4 NUT & OLIVE | 1 | 1 | 1 | 1 | 1 | 1 | |
| Gas Train Spare Parts (Propane) | |||||||||
| Comments | Item number | Part number | Description | HCV12 | HCV16 | HCV26 | HCV30 | HCV35 | HCV40 |
| 19 | PV326 | WR GAS VALVE 36H32-409 24V | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | 628790 | KIT CONV NG-LPG W01038 WR | 1 | 1 | 1 | 1 | 1 | 1 | |
| 21 | PB209 | BURNER SPUD #55 DRILL SIZE | 6 | 8 | - | - | - | 19 | |
| 21 | 648323 | INJECTOR ULPG DIA 1.20mm | - | - | 12 | 14 | 17 | - | |
| 22 | PV051 | BALL VALVE 3/4" ITAP ART 066 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | PN037 | NIPPLE GAL HEX 3/4" | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | PU009 | UNION BARREL GAL BS 3/4" F/F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | PB419 | ELBOW GAL 3/4" M & F 90o | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 9656325 | MODULATING COUPLING SHAFT SML | 1 | 1 | 1 | 1 | 1 | 1 | |
| 27 | PE071 | ELBOW GAL 3/4" F & F | 1 | 1 | 1 | 1 | 1 | 1 | |
| 28 | PP238 | PRESSURE TEST POINT 1/8" G09 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 29 | PT055 | UNION BRASS 1/4""X 1/8""B INC | 2 | 2 | 2 | 2 | 2 | 2 | |
| 30 | PB774 | PILOT INJECTOR LPG SUITS PB772 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | PZ643 | 1/8NPT x 1/4 NUT & OLIVE | 1 | 1 | 1 | 1 | 1 | 1 | |

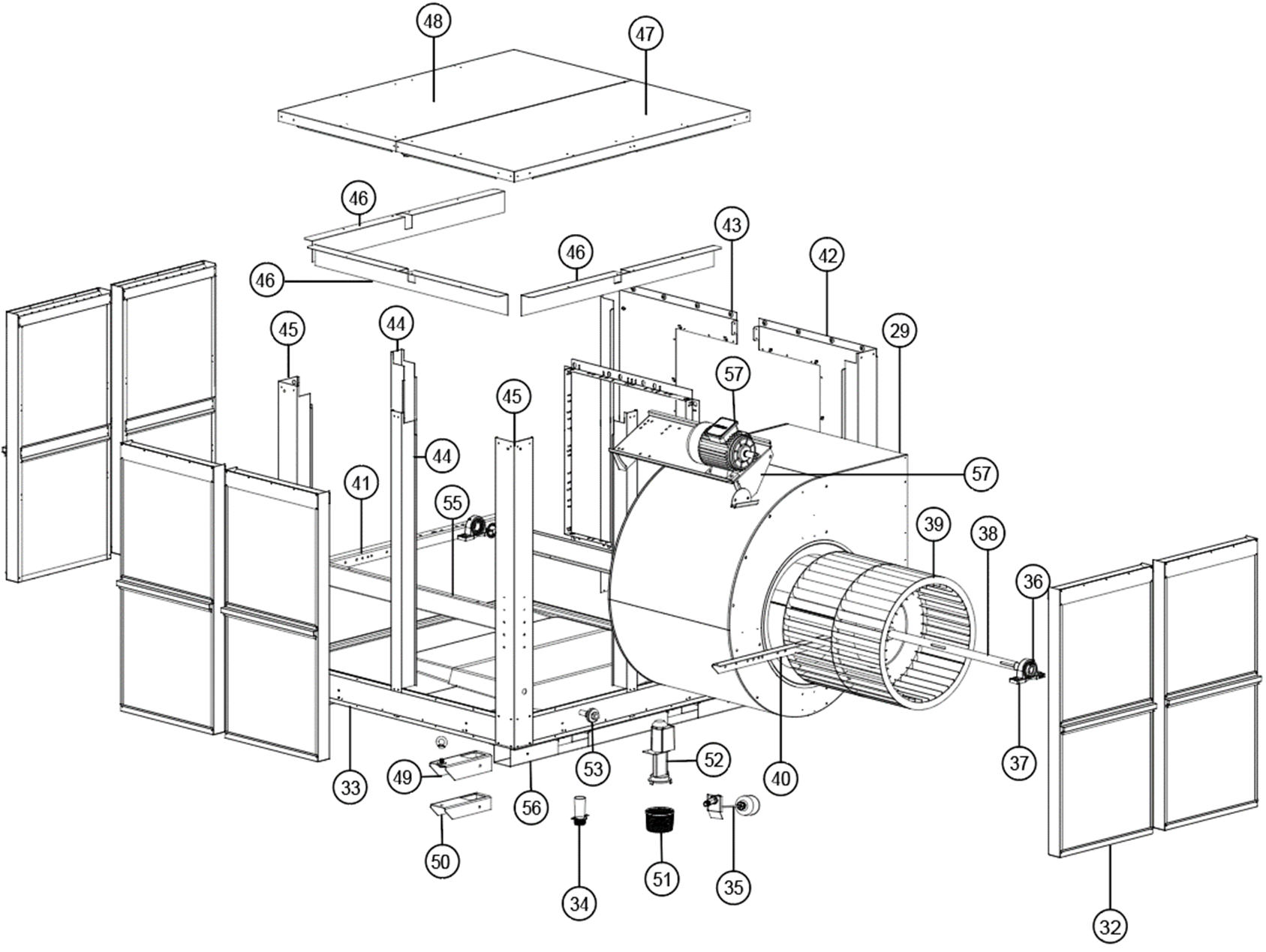

| Cooler Section Cabinet Spare Parts | |||||||||
| Comments | Item number | Part number | Description | HCV12 | HCV16 | HCV26 | HCV30 | HCV35 | HCV40 |
| PAD FRAME ASSEMBLIES WITH NO PAD COVERS | 32 | AL160-2 | PAD FRAME ASSY AL18/HCV12/16 | 3 | 3 | - | - | - | - |
| AL160-4 | PAD FRAME ASSY AL25 | - | - | 6 | 6 | - | - | ||
| AL160-5 | PAD FRAME ASSY NARROW AL30 | - | - | - | - | 4 | 4 | ||
| AL160-6 | PAD FRAME ASSY WIDE AL30 | - | - | - | - | 2 | 2 | ||
| PAD FRAME ASSEMBLIES WITH PAD COVERS | 32 | AL160-2PC | PAD FRAME ASSY AL18 PAD COVER | 3 | 3 | - | - | - | - |
| AL160-4PC | PAD FRAME ASSY AL25 PAD COVER | - | - | 6 | 6 | - | - | ||
| AL160-5PC | PAD FRAME ASSY NARROW AL30 PAD | - | - | - | - | 4 | 4 | ||
| AL160-6PC | PAD FRAME ASSY WIDE AL30 PAD | - | - | - | - | 2 | 2 | ||
| 33 | 9658124 | BASE MEMBER AL18 | 4 | 4 | - | - | - | - | |
| 9658133 | AL25 BASE MEMBER | - | - | 4 | 4 | - | - | ||
| 9658130 | AL30 BASE MEMBER - LONG | - | - | - | - | 2 | 2 | ||
| AC8426 | BASE MEMBER 90D-142T | - | - | - | - | 2 | 2 | ||
| 34 | 608884 | TUBE OVERFLOW NB40 M25 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 35 | TCL620 | FLOAT VALVE ASSEMBLIES RCA/TCL | 1 | 1 | 1 | 1 | 1 | 1 | |
| 020803 | FLOAT VALVE ONLY | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 020802 | FLOAT ONLY**** | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 36 | PB234 | BEARING 1", YAR205-100-2F | 2 | 2 | - | - | - | - | |
| PB006 | BEARING 1-1/2", YET208-108 | - | - | 2 | 2 | 2 | 2 | ||
| 37 | PB005 | BEARING 1" PILLOW BLOCK, P205 | 2 | 2 | - | - | - | - | |
| 841885 | PILLOW BLOCK TR 1.5" P208 | - | - | 2 | 2 | 2 | 2 | ||
| 38 | PS216 | SHAFT SS 1" X 665lg - AL18 | 1 | 1 | - | - | - | - | |
| PS118 | SHAFT S/S 1 1/2" x 985 lge | - | - | 1 | 1 | - | - | ||
| PS950 | SHAFT SS 1 1/2" X 1110LG AL30 | - | - | - | - | 1 | 1 | ||
| 39 | PB749 | BLOWER WHEEL 450MM X 457MM | 1 | 1 | - | - | - | - | |
| PB723 | BLOWER WHEEL 630MM X 635MM (2 | - | - | 1 | 1 | - | - | ||
| PB724 | BLOWER WHEEL 800MM W X 762MM D | - | - | - | - | 1 | 1 | ||
| 40 | CELDEC41ALH | BEARING RAILS AL15S AL18S LH | 1 | 1 | - | - | - | - | |
| CELDEC07LHPTD | BEARING RAIL AL25 D/S/T LH PTD | - | - | 1 | 1 | 1 | 1 | ||
| CELDEC49ALH | BEARING RAIL AL18D LH | - | - | - | - | - | - | ||
| CELDEC82ALH | BEARING RAILS AL18 LH | - | - | - | - | - | - | ||
| 41 | CELDEC41ARH | BEARING RAILS AL15S AL18S RH | 1 | 1 | - | - | - | - | |
| CELDEC07RHPTD | BEARING RAIL AL25 D/S/T RH PTD | - | - | 1 | 1 | 1 | 1 | ||
| CELDEC49ARH | BEARING RAIL AL18D RH | - | - | - | - | - | - | ||
| CELDEC82ARH | BEARING RAILS AL18 RH | - | - | - | - | - | - | ||
| 42 | 9658078 | AL18 LH FRONT CORNER POST | 1 | 1 | - | - | - | - | |
| 9658132 | AL25 LH CORNER POST SD | - | - | 1 | 1 | - | - | ||
| CELDEC22LH | FRONT CRN PILLAR | - | - | - | - | 1 | 1 | ||
| CELDEC43LH | FRONT CRN PILLAR LH | - | - | - | - | - | - | ||
| CELDEC02LH | POST CORNER FRONT HCV35 LH | - | - | - | - | - | - | ||
| CELDEC22LH | FRONT CRN PILLAR | - | - | - | - | - | - | ||
| 43 | 9658077 | AL18 RH FRONT CORNER POST | 1 | 1 | - | - | - | - | |
| 9658131 | AL25 RH CORNER POST SD | - | - | 1 | 1 | - | - | ||
| CELDEC22RH | FRONT CRN PILLAR | - | - | - | - | 1 | 1 | ||
| CELDEC43RH | FRONT CRN PILLAR RH | - | - | - | - | - | - | ||
| CELDEC02RH | POST CORNER FRONT HCV35 RH | - | - | - | - | - | - | ||
| CELDEC22RH | FRONT CRN PILLAR | - | - | - | - | - | - | ||
| 44 | CELDEC03 | PAD DIVIDERS AL25 | - | - | 3 | 3 | - | - | |
| CELDEC23 | PAD DIVIDER | - | - | - | - | 3 | 3 | ||
| 45 | CELDEC45 | REAR CRN PILLAR | 2 | 2 | - | - | - | - | |
| CELDEC45TOP | REAR CRN PILLAR AL18T | - | - | - | - | - | - | ||
| CELDEC01 | REAR CORNER POST AL25 | - | - | 2 | 2 | - | - | ||
| CELDEC21 | REAR CRN PILLAR | - | - | - | - | 2 | 2 | ||
| 46 | CELDEC73 | LOUVRE SPLASH GUARD NARROW | - | - | 3 | 3 | 2 | 2 | |
| CELDEC72 | WIDE LOUVRE SPLASHGUARD | - | - | - | - | 1 | 1 | ||
| SINGLE PIECE CABINET TOP (AL18) | 47 | 9658076 | CAB TOP AL18 | 1 | 1 | - | - | - | - |
| CELDEC62 | COVER TOP AL18 | - | - | - | - | - | - | ||
| 9658136 | AL25 COVER TOP HALVES S&D LH | - | - | 1 | 1 | - | - | ||
| CELDEC10LH | COVER TOP HALF LH AL25T | - | - | - | - | - | - | ||
| 9658105 | TOP COVER HALF AL30 D/S | - | - | - | - | 1 | 1 | ||
| CELDEC29TOPLH | COVER TOP AL30T LH | - | - | - | - | - | - | ||
| 48 | 9658135 | AL25 COVER TOP HALVES S&D RH | - | - | 1 | 1 | - | - | |
| CELDEC10RH | COVER TOP HALF RH AL25T | - | - | - | - | - | - | ||
| 9658104 | TOP COVER HALF AL30 D & S | - | - | - | - | 1 | 1 | ||
| CELDEC29TOPRH | COVER TOP AL30T RH | - | - | - | - | - | - | ||
| 49 | 9658098 | AIRA LIFTING BEAM PART1 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 50 | 9658099 | AIRA LIFTING BEAM PART2 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 51 | 999293 | PUMP BASKET MOULDED | - | - | 1 | 1 | 1 | 1 | |
| 52 | 110776 | PUMP 230/50 1500MM B/LACE SO | 1 | 1 | - | - | - | - | |
| 999294 | PUMP LRG IND | - | - | 1 | 1 | 1 | 1 | ||
| 53 | PT375 | OUTLET TANK FEMALE 15MM | 1 | 1 | 1 | 1 | 1 | 1 | |
| 54 | PM215 | MOTOR 3.0/1.0KW 2SP DUA L IP55 | 1 | 1 | - | - | - | - | |
| PM216 | MOTOR 4.0/1.3KW 2SP DUAL IP55 | - | - | 1 | - | - | - | ||
| PM217 | MOTOR 5.5/1.8KW 2SP DUAL IP55 | - | - | - | 1 | - | - | ||
| PM219 | MOTOR 7.5/2.2KW 2SP DUAL IP55 | - | - | - | - | 1 | 1 | ||
| 55 | CELDEC48A | CROSSMEMBER AL15/18 | 1 | 1 | - | - | - | - | |
| AC8445-1PTD | CROSSMEMBER AL25 PTD | - | - | 2 | 2 | - | - | ||
| AC8446-1PTD | CROSSMEMBER AL30 PAINTED | - | - | - | - | 2 | 2 | ||
| 56 | 9658059 | BASE CHANNEL HCV SML CAB | 2 | 2 | - | - | - | - | |
| 9658070 | AL25 BASE STIFFENER | - | - | 2 | 2 | - | - | ||
| 9658096 | AL30 UNDER CAB STIFFENER RAIL | - | - | - | - | 2 | 2 | ||
| 57 | 9656780 | MOTOR MOUNT AL18 D/S/T PTD | 1 | 1 | - | - | - | - | |
| CELDEC19LHPTD | MOTOR MOUNT AL25 D/S PTD | - | - | 1 | 1 | - | - | ||
| CELDEC19RHPTD | MOUNT MOTOR AL25T PTD | - | - | - | - | - | - | ||
| CELDEC30LHPTD | MOTOR MOUNT AL30 D/S PTD | - | - | - | - | 1 | 1 | ||
| CELDEC30RHPTD | MOTOR MOUNT RH PTD | - | - | - | - | - | - | ||
