Reverse Cycle Controller Quick Reference – Field Technician Guide (June 2026)

Overview

This quick reference guide helps identify reverse cycle controllers, compatibility, and availability status across Braemar systems.


  • Current – actively supplied
  • Spare Part Only (RP) – no longer supplied with units, available as replacement
  • NLA – no longer available

Handheld Remotes

ControllerUsed OnAvailability

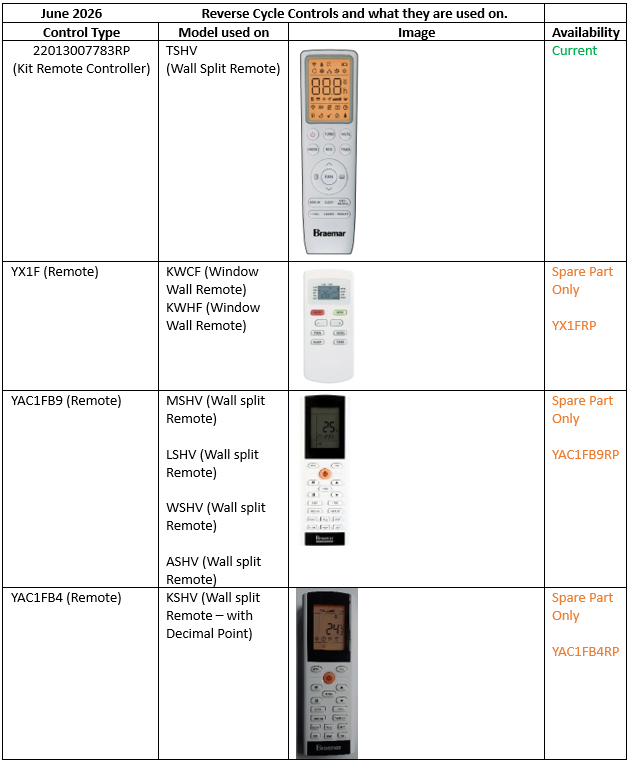

22013007783RPTSHV✅ Current
YX1FKWCF, KWHF⚠️ Spare Part Only (YX1FRP)
YAC1FB9MSHV, LSHV, WSHV, ASHV⚠️ Spare Part Only (YAC1FB9RP)
YAC1FB4KSHV⚠️ Spare Part Only (YAC1FB4RP)

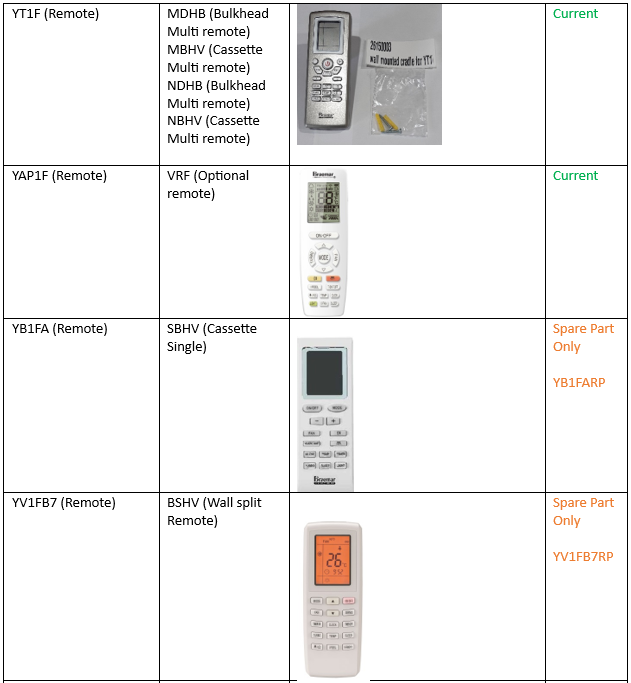

YT1FMDHB, MBHV, NDHB, NBHV✅ Current
YAP1FVRF (Optional)✅ Current
YB1FASBHV⚠️ Spare Part Only (YB1FARP)
YV1FB7BSHV⚠️ Spare Part Only (YV1FB7RP)


Wired Wall Controllers

ControllerUsed OnAvailability

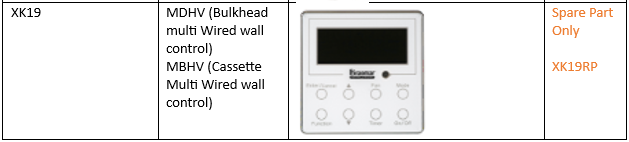

XK19MDHV, MBHV⚠️ Spare Part Only (XK19RP)

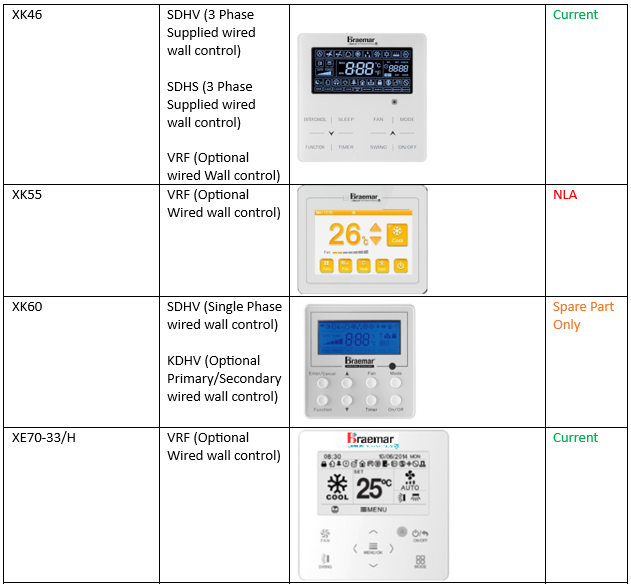

XK46SDHV (3Ø), SDHS, VRF✅ Current
XK55VRF❌ NLA
XK60SDHV (Single Phase), KDHV⚠️ Spare Part Only

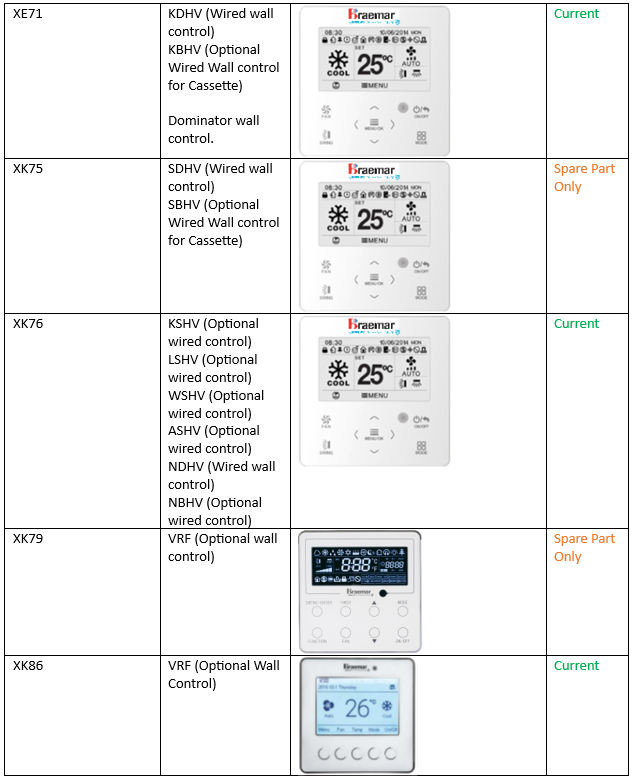

XE71KDHV, KBHV, Dominator✅ Current
XK75SDHV, SBHV⚠️ Spare Part Only
XK76KSHV, LSHV, WSHV, ASHV, NDHV, NBHV✅ Current
XK79VRF⚠️ Spare Part Only
XK86VRF✅ Current
XE70‑33/HVRF✅ Current

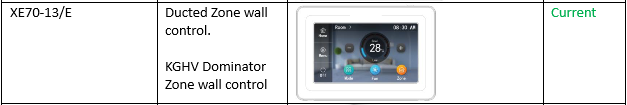

XE70‑13/EZone (Ducted / Dominator)✅ Current

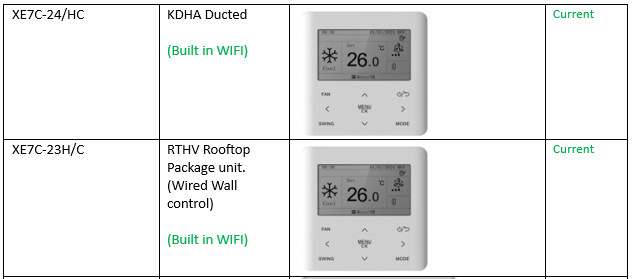

XE7C‑24/HCKDHA (Built‑in Wi‑Fi)✅ Current
XE7C‑23H/CRTHV Rooftop (Wi‑Fi)✅ Current


Central / Zone Controls

ControllerUsed OnAvailability

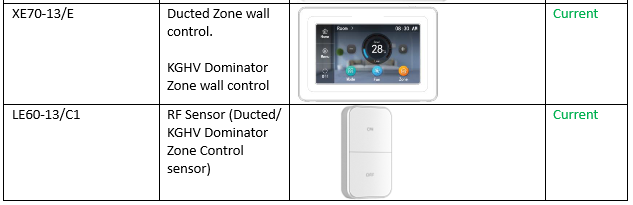

XE70‑13/EZone Wall Control✅ Current
LE60‑13/C1RF Sensor✅ Current

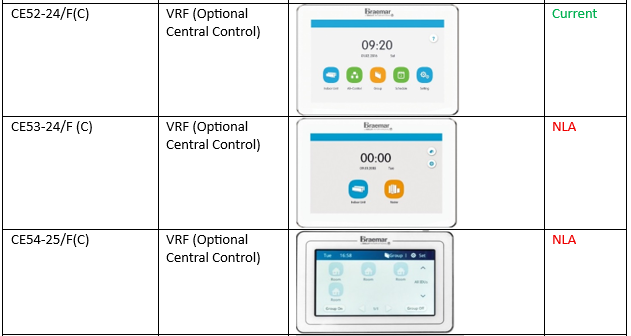

CE52‑24/F(C)VRF Central Control✅ Current
CE53‑24/F(C)VRF Central Control❌ NLA
CE54‑25/F(C)VRF Central Control❌ NLA



Wi‑Fi & BMS Interfaces

ModuleUsed OnAvailability

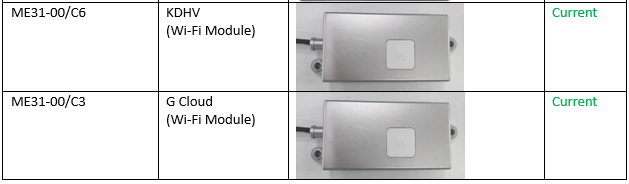

ME31‑00/C6KDHV✅ Current
ME31‑00/C3G Cloud VRF✅ Current

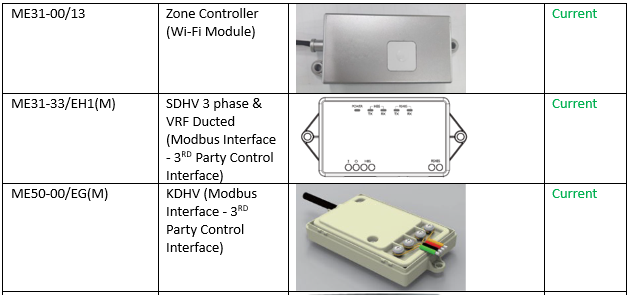

ME31‑00/13Zone Controller✅ Current
ME31‑33/EH1(M)SDHV 3Ø, VRF Ducted✅ Current
ME50‑00/EG(M)KDHV✅ Current

Diagnostic Tools

ToolUsed OnAvailability

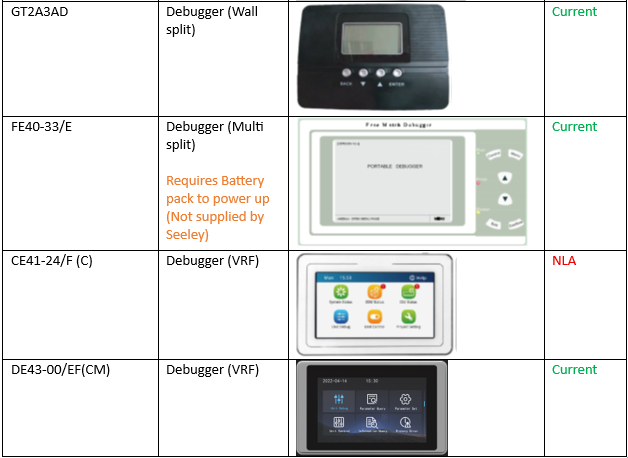

GT2A3ADWall Split Debugger✅ Current
FE40‑33/EMulti Split Debugger✅ Current
CE41‑24/F(C)VRF Debugger❌ NLA
DE43‑00/EF(CM)VRF Debugger✅ Current
