Introduction
This article provides the Climate Wizard CW-H Multi-Magic Commissioning Checklist for post-2020 manufactured units equipped with the Multi-Magic PLC control system. It is intended to assist technicians during installation, start-up, commissioning, airflow balancing and performance testing of Climate Wizard Horizontal (CW-H) indirect evaporative coolers.
Following the commissioning procedure ensures the cooler operates as designed, with the correct balance between supply air and exhaust airflow through the heat exchanger cores. Proper airflow balancing is critical to achieving optimum cooling performance, system efficiency and reliable operation. Refer to the commissioning checklist and airflow balancing procedures below when completing cooler commissioning and final performance verification.

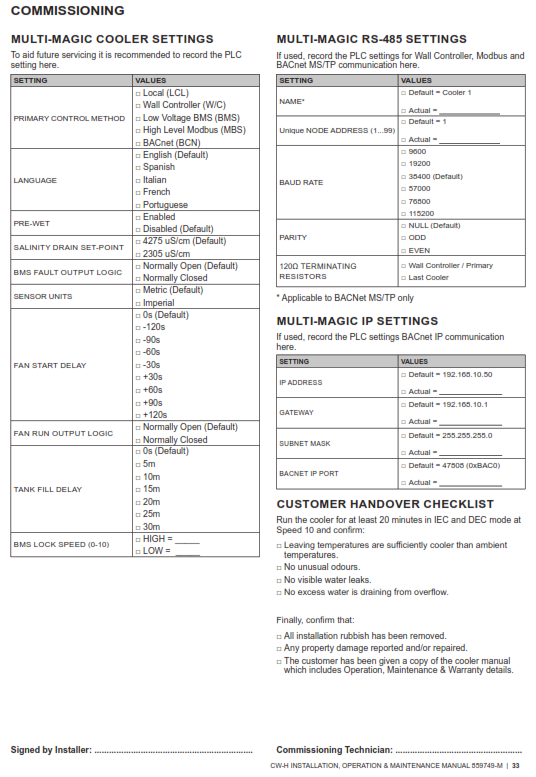

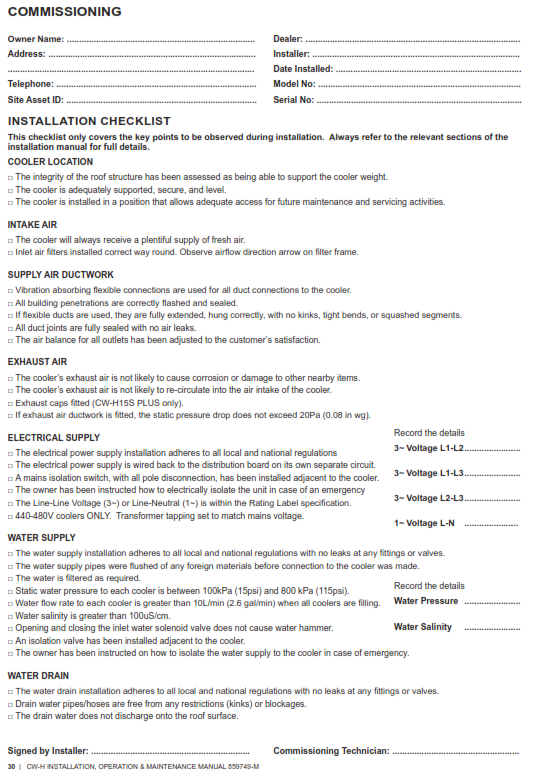

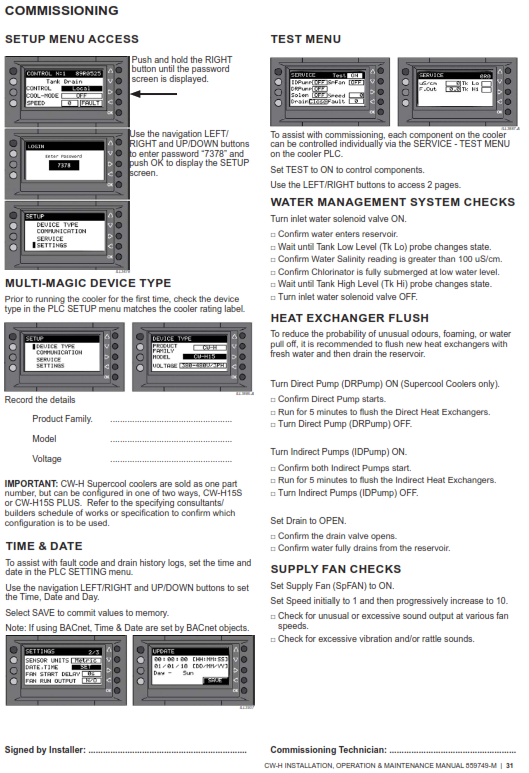

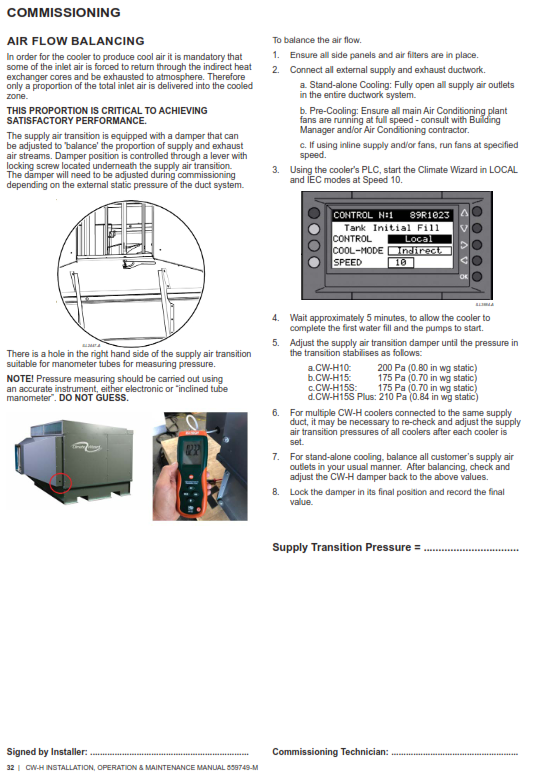

IMPORTANT: In order for the cooler to produce cool air it is mandatory that some of the inlet air is forced to return through the indirect heat exchanger cores and be exhausted to atmosphere. Therefore, only a proportion of the total inlet air is delivered into the cooled zone. THIS PROPORTION IS CRITICAL TO ACHIEVING SATISFACTORY PERFORMANCE -
SEE BELOW PAGE 32 AIRFLOW BALANCING
IMPORTANT: In order for the cooler to produce cool air it is mandatory that some of the inlet air is forced to return through the indirect heat exchanger cores and be exhausted to atmosphere. Therefore, only a proportion of the total inlet air is delivered into the cooled zone.
THIS PROPRTION IS CRITICAL TO ACHIEVING SATISFACTORY PERFORMANCE -
