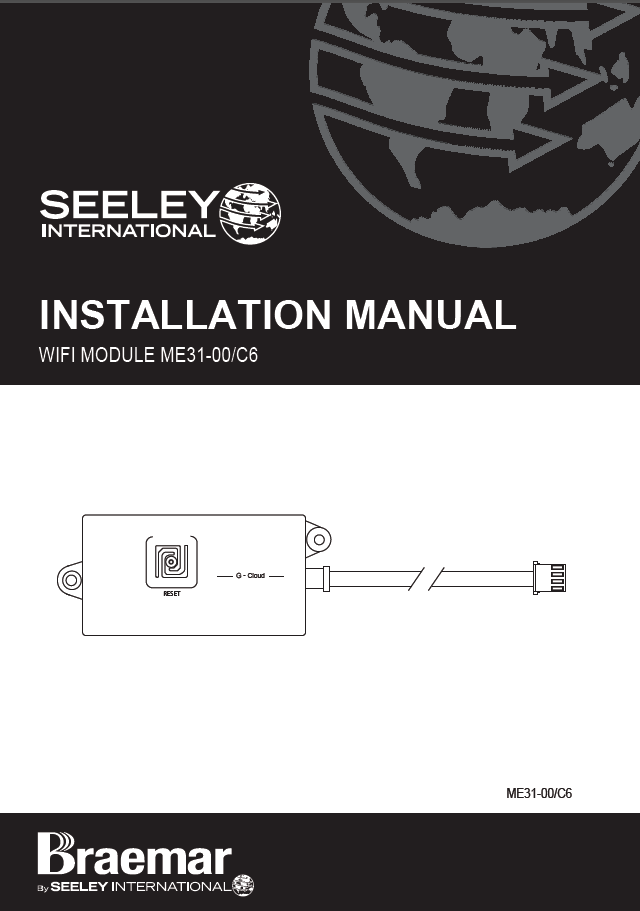

WIFI Module ME31-00/C6 Installation Manual - Installation Manual - Braemar - ME31-00C602-A
All VRF indoors except the High Wall Split
12-page Pdf attached,

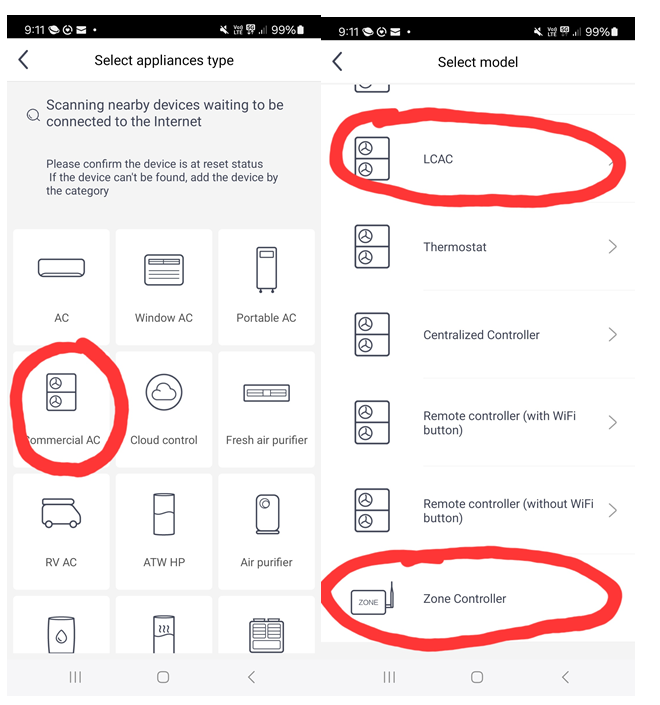

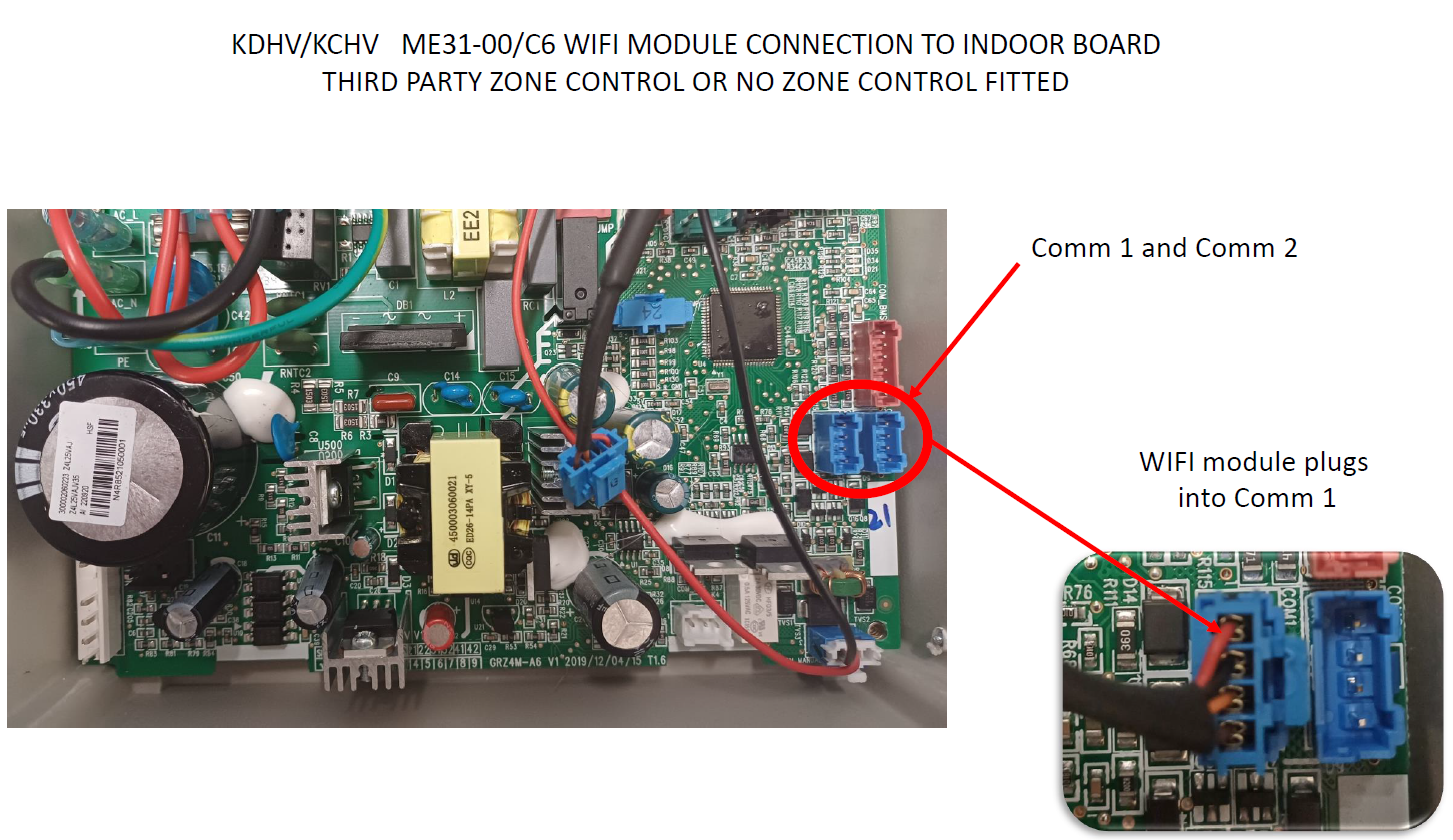

First enter Commercial AC then either enter LCAC (ME31-00/C6 Module) or Zone Controller (ME31-00/C13 module) to connect the module.
