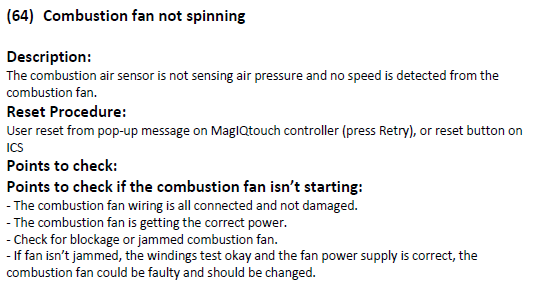

TQ DGH - FC64 Modulating Combustion fan not spinning


Fault code history can be accessed on MagIQtouch controller:

SETTINGS/SERVICE/GAS HEATER 01/7378 CONT/FAULT LOG


YouTube Video - MagIQtouch Heater Fault Log

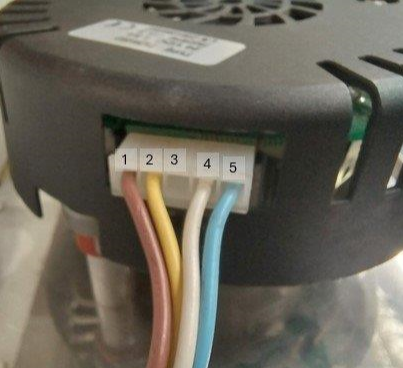

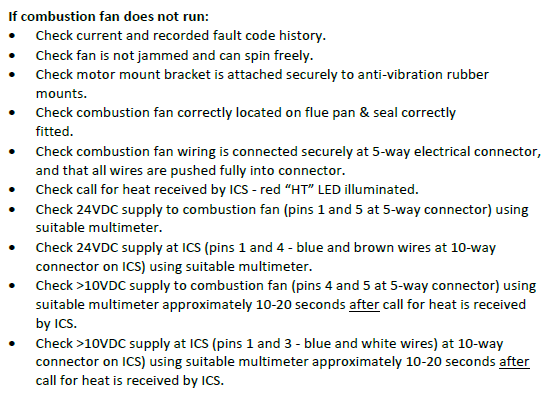

  • Check 24VDC supply to combustion fan (pins 1 and 5 at 5-way connector) using a suitable multimeter
  • Check >10VDC supply to combustion fan (pins 4 and 5 at 5-way connector) using a suitable multimeter approximately 10-20 seconds after call for heat is received by ICS.

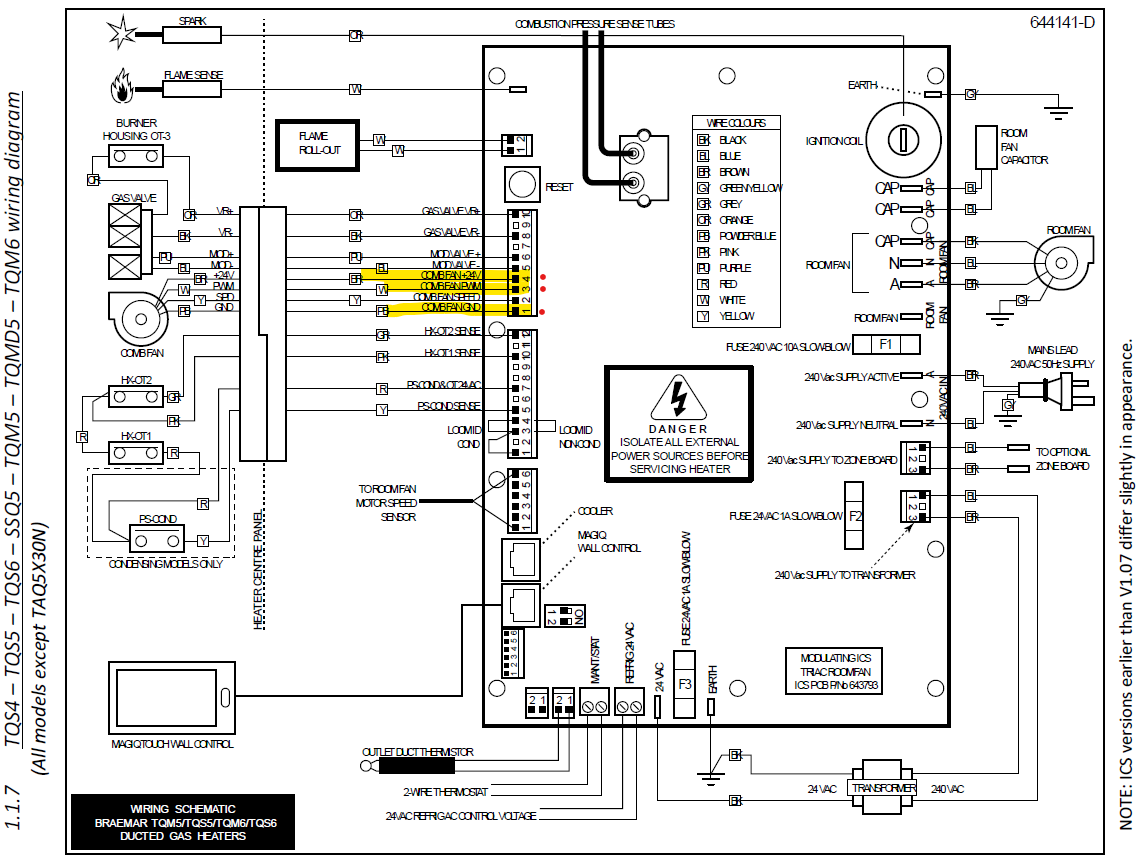

  • Check 24VDC supply at ICS (pins 1 and 4 - blue and brown wires) at 10-way connector ICS) using suitable multimeter
  • Check >10VDC supply at ICS (pins 1 and 3 blue and white wires) at 10-way connector ICS) using a suitable multimeter approximately 10-20 seconds after call for heat is received by ICS
