SEELEY FEAC WATER SUPPLY REQUIREMENTS


To prevent undue inconvenience to our consumers, we wish to reiterate the water supply requirements for Seeley International's FEAC Coolers (Breezair, Braemar, and Coolair) as detailed in our installation manuals.


The installation of the water cooler supply must comply with local plumbing codes, regulations, and standards.


The subsequent points and specifications for the water supply are to be strictly followed:

  • Water Connection: ½” inch BSP
  • Water Supply: 800Kpa (115 psi) MAXIMUM

It is crucial that if the water pressure surpasses the maximum specification, a pressure reducing valve will be necessary. This valve must be provided and installed by the installer.

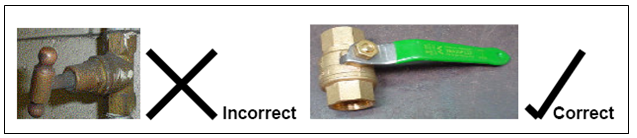

  • Install a manual shut-off valve in the water supply line next to the Cooler, in accordance with local plumbing regulations. A ¼ turn ball-type shut-off valve is recommended for this purpose. This valve will enable isolation of the water supply when maintenance is required on the Cooler. It is advisable to use a stopcock, specifically one that is not a non-return type.



  • Flush the water pipe to clear out any swarf (debris) prior to the final installation.
  • In regions prone to freezing temperatures, it is necessary for water lines to have a drain-down facility. This allows water to be emptied from the cooler's supply pipes during winter to prevent the pipes from bursting due to the expansion of freezing water.

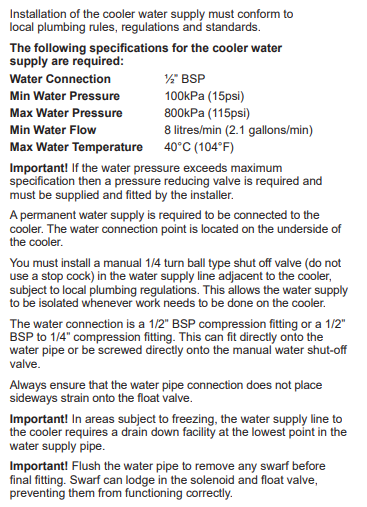

Below extract from Installation manual:



Fault Code FC02 - indicates that water is not detected at the low probes within 20 minutes, which could be due to a damaged or failed inlet water solenoid, resulting from pressure buildup in the water supply line.

  • Pressure buildup in pipes can cause a solenoid valve to lock up when a non-return valve is used in the water supply line. It is always advisable to use a ball valve instead, which is not a non-return type of shut-off valve.



CHECK LIST FOR FAULT CODE 02 (2 RED FLASHES)

  • Ensure water pressure is sufficient to fill and maintain the tank to specified level within 20 minutes
  • In areas of hard of polluted water, blockage of the strainer/filter in the water inlet solenoid valve may restrict water flow.
  • Water level set too low.
  • Ensure water probe plug is connected properly.
  • Plug connections at electronics module upside down or misaligned.
  • Water too pure for the probes to sense water is present.
  • Pressure building up in pipes can lock up the solenoid valve when a non-return isolation valve is used in the water supply line. It is recommended to use a ball valve, i.e. NOT a non-return type of shut off valve.
  • Check drain valve is closing and not cycling due to debris being caught under the drain valve washer.
