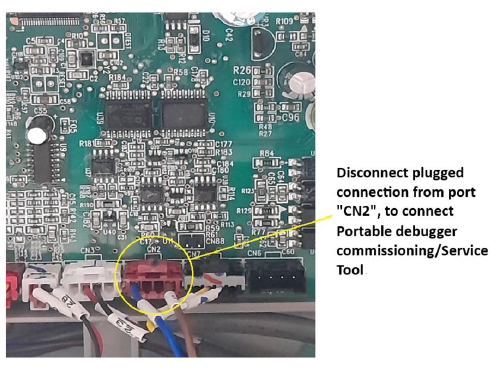

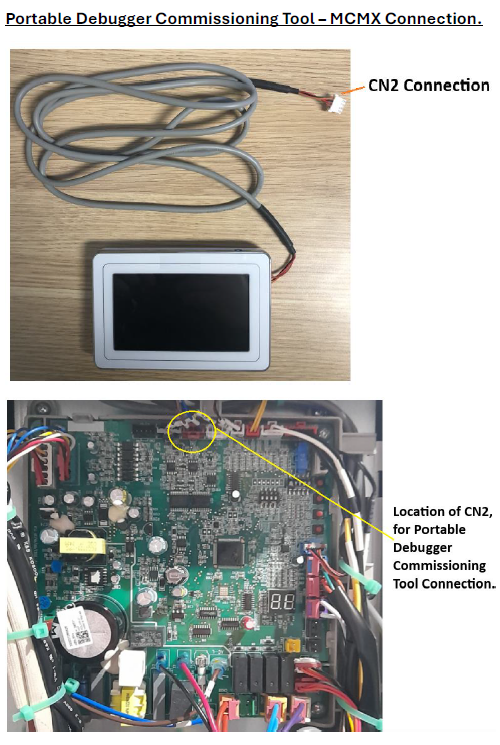

Portable debugging / commissioning tool - MCMX outdoor unit connections

VRF Debugger Pt# DE43-00/EF(CM)


⚠️ Safety Notice – Reverse Cycle Air Conditioners

This equipment must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.


Before commencing work, complete a task-specific risk assessment and ensure electrical isolation procedures, safe access, adequate service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.


Particular care must be taken when working around electrical systems, refrigerant circuits, moving parts, roof spaces, ceiling spaces, confined spaces and working-at-heights hazards where applicable.


Do not proceed if safe access, required clearances, confined space risks or appropriate safety controls cannot be achieved and maintained.


Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.


Important!!! After power has been switched on for 8 hours, system can be commissioned.

Commissioning a VRF System

Commissioning a Variable Refrigerant Flow (VRF) system is the process of ensuring everything is set up and working as it should be before it goes into regular use.


This involves:

Installation Verification: Ensuring all components are installed correctly.

System Testing: Running the system to check if it operates as expected.

Calibration: Adjusting settings to optimize performance.

Documentation: Recording all settings and test results for future reference


Debugging a VRF System

Debugging a Variable Refrigerant Flow (VRF) system is like troubleshooting a complex puzzle. It involves identifying and fixing any issues that prevent the system from working correctly.


This can include checking for:

Leaks in the refrigerant lines.

Faulty connections in the electrical wiring.

Software errors in the system’s control unit.



2-page Pdf attached,
