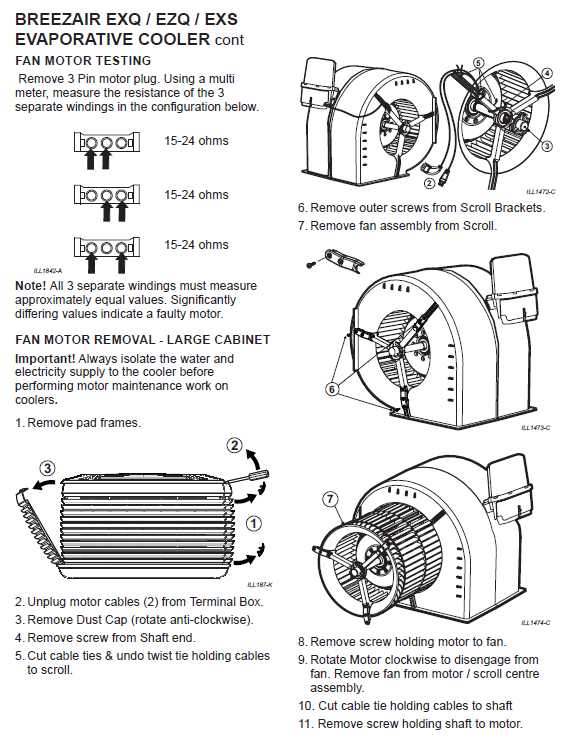

After replacing Direct Drive (DD Icon) motor the fan cuts out after running for a short time
• If you have recently changed a Direct Drive motor and it runs for a short time before stopping:

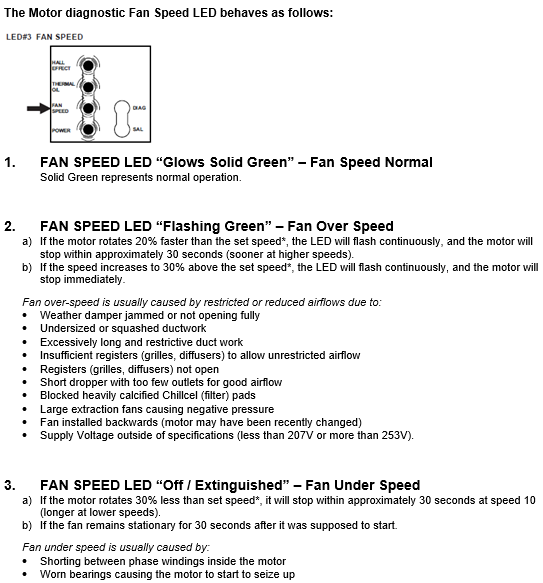

• Turn on to fan only and watch the motor diagnostic LEDs in the control box.
• If FAN SPEED LED starts to flash a short time after the motor starts.
Most likely, the fan blade has been put in backwards.

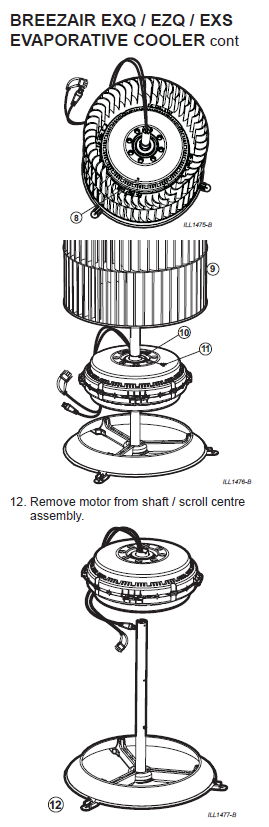

• Check that the concave (inner) curve of the centrifugal fan blade is facing the direction of rotation.
Rotation is anticlockwise if viewed from the side where motor cable is on.
• As the blade rotates, the inner concave section of the blade scoops and pushes the air into the dropper.
• If the blade is oriented incorrectly, there is little resistance to rotation, causing the fan to over speed and the fan speed light to flash.
Click here to view YouTube video showing direction of rotation of Direct Drive fan
