Service Field Update Float Switch and Insulation Panel Braemar KGHV Dominator Series - Service SOP - Dominator - KGHV-04-A
⚠️ Safety Notice – Reverse Cycle Air Conditioners
This equipment must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.
Before commencing work, complete a task-specific risk assessment and ensure electrical isolation procedures, safe access, adequate service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.
Particular care must be taken when working around electrical systems, refrigerant circuits, moving parts, roof spaces, ceiling spaces, confined spaces and working-at-heights hazards where applicable.
Do not proceed if safe access, required clearances, confined space risks or appropriate safety controls cannot be achieved and maintained.
Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.
Overview:
This Service SOP outlines the steps for servicing the Braemar KGHV-04-A Dominator Series ducted inverter air conditioner, including updates to the float switch bracket and inspection of insulation panels.

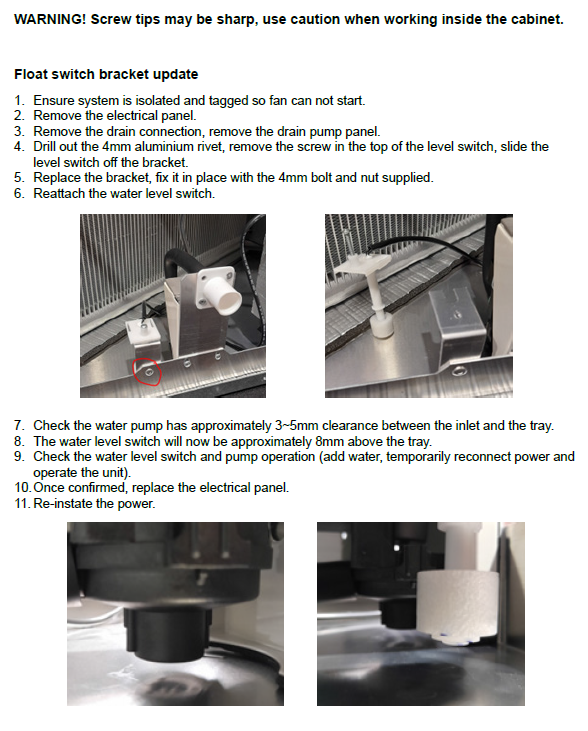

Float Switch Bracket Update

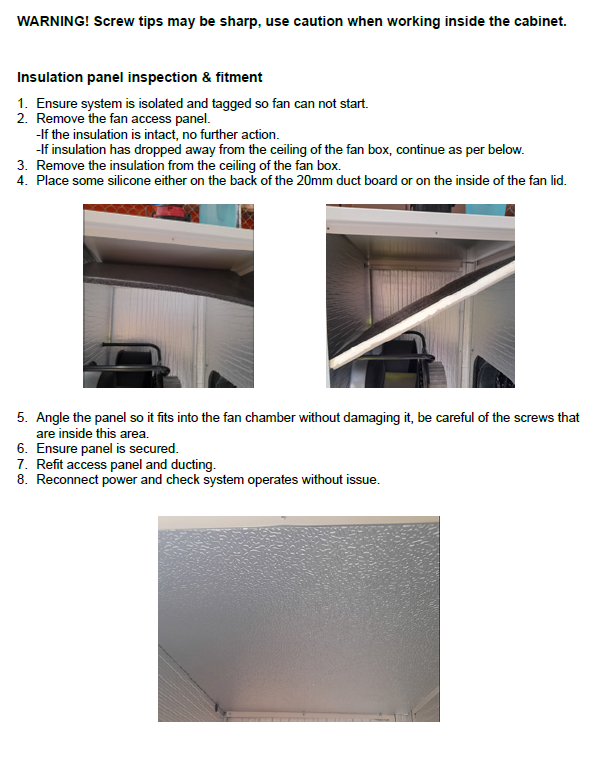

Insulation Panel Inspection & Fitment
