MagIQtouch Temperature Control and Placement Guidelines
The MagIQtouch controller is designed to be highly responsive, adjusting within ±0.5°C of the set temperature. However, because the display rounds to whole numbers, users may occasionally perceive a mismatch between the displayed temperature and the actual room feel. This is not a fault, it's a result of rounding.
Example, for ducted gas heating, if the system is set to 20°C in heating mode:
The gas will turn off at 20.5°C, but the display will show 21°C.
The gas will turn back on at 19.5°C, but the display will show 19°C.
This is due to the rounding of the displayed temperature, not a fault in the system’s accuracy.
Example, for evaporative cooler, if the system is set to 24°C in cooling mode:
The evaporative cooler will turn off when the sensed temperature drops to 23.5°C, but the display will show 23°C.
The cooler will turn back on when the sensed temperature rises to 24.5°C, but the display will show 25°C.
This is due to the rounding of the displayed temperature, not a fault in the system’s accuracy.
Temperature Sensor Location and Controller Placement Guide
To ensure your heating and cooling system works efficiently and maintains a comfortable indoor climate, it’s important to install the MagIQtouch controller in the right location. The controller includes a built-in temperature sensor, located behind the vent slots on its left-hand side when facing the wall control screen. This sensor reads the room temperature and helps the system adjust accordingly.
Recommended Placement
- Height: Install the controller at approximately 1.5 metres (5 feet) above the floor. This height is ideal because it reflects the average temperature experienced by people in the room—not too close to the ceiling (where warm air rises) and not too low (where cooler air settles).
- Location: Place the controller in the most frequently used room of the home that is conditioned (i.e. must have an outlet)—typically the living room or family room. This ensures the system responds to the temperature where people spend most time.
- Make sure the sensor on the left-hand side is not obstructed and can sense temperature.
- Goal: Ensure the thermostat senses the temperature where people spend the most time, free from interference by airflow, heat sources, or structures.
Avoid these below Locations
To prevent inaccurate temperature readings and poor system performance, avoid placing the controller in the following areas:
- Direct sunlight – can cause false high temperature readings.
- External walls – may be affected by outdoor temperatures.
- Near heat sources – such as ovens, stoves, TVs, or lamps.
- In direct airflow – from duct outlets or fans, which can skew readings.
- Next to return air grilles (ducted gas systems) – airflow can interfere with sensor accuracy.
- Drafty areas – like near doors, windows, or vents.
- Enclosed spaces – such as cupboards or drawers, which trap heat.
- Hallways – often not representative of the temperature in living areas.
- Behind furniture or curtains – Obstructions can trap heat or block airflow, leading to false temperature readings.
- Unsealed cable holes – air leakage can affect sensor readings.
⚠️ Safety Tip Before Installation
Before drilling into any wall, always check for hidden electrical wires, gas lines, or water pipes. Use a stud finder or consult a professional to avoid damaging utilities or creating safety hazards.

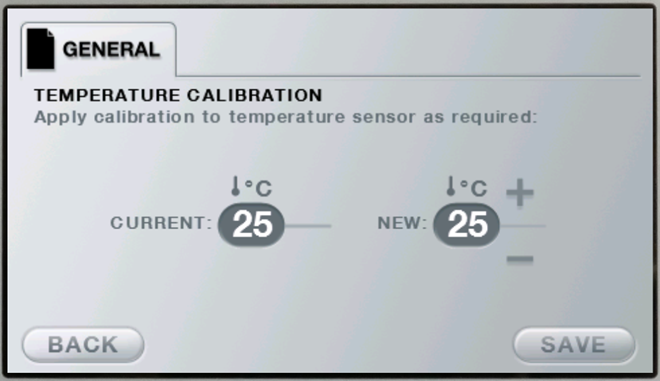

MagIQtouch temperature calibration mode
GENERAL/SETTINGS/TEMPERATURE CALIBRATION/7378 CONT/SAVE
The MagIQtouch controller is designed to be highly responsive, adjusting within ±0.5°C of the set temperature. However, because the display rounds to whole numbers, users may occasionally perceive a mismatch between the displayed temperature and the actual room feel. This is not a fault, it's a result of rounding.
To address this and other environmental influences, the temperature calibration mode allows fine-tuning of the displayed temperature to better reflect actual room conditions.
When to Use Temperature Calibration
Use the calibration feature if you notice consistent discrepancies between the perceived room temperature and the controller’s display, especially in the following scenarios:
- The Controller is near a heat source
- TVs, ovens, lamps, or other electronics can radiate heat and falsely elevate the sensor reading.
- Exposed to direct sunlight
- Sunlight can warm the controller casing and sensor, leading to higher-than-actual reading.
- Located in a drafty area or near vents
- Cold or warm air from ducts or windows can distort the sensor’s accuracy.
- Mounted on external walls
- These may be influenced by outdoor temperatures, especially in poorly insulated homes.
- Room consistently feels warmer or cooler than the displayed temperature
- Even in ideal locations, individual comfort levels may vary, and calibration can help align the system with user expectations.
How to Use Temperature Calibration
To calibrate the temperature:
- Go to the SETTINGS Menu on your MagIQtouch controller.
- Navigate to the GENERAL Menu or Service Menu (depending on your model).
- Look for an option like “TEMPERATURE CALIBRATION”
- Adjust the temperature up or down in small increments (±1°C).
- Confirm and save your settings.
⚠️ Tip: Always wait a few minutes after making changes to see how the new setting affects the room temperature reading.
