RPA-OR Models to Address Water Pull-Off Issues Recommended Upgrades (only applicable to RPA-OR coolers manufactured between 2023 and 2025)


Overview

As part of our commitment to continuous improvement and customer satisfaction, we are introducing a series of upgrades for the RPA-OR cooler range. These enhancements are specifically designed to address water pull-off issues, which are often difficult to diagnose.

The upgrade kits are applicable to Braemar RPA-OR models 320, 400, 450, and 500 manufactured between 2023 and 2025.



Upgrade Focus Areas

  1. Pad Frame Drains
    • Water from the bottom of the pad is now directed in a steady stream to the corners and center of the tank, stopping loose droplets from being pulled in by the fan — the main cause of water intake.
  2. Anti-Vortex Plate
    • Extended and reshaped to improve drainage and reduce the chance of water landing on top and being pulled into the fan.
  3. Fan Speed Reductions (Applicable to RPA-OR 450 and 500 only)
    • Achieved by changing motor pulleys and belts.


Upgrade Kit Options


Pad Frame Drains & Anti-Vortex Plate Kits

These upgrades are available in two formats:

  • Sheetmetal Only Kits
     Includes the necessary metal components to retrofit existing pad frames with improved drainage and anti-vortex features.
  • Complete Replacement Pad Frame & Chillcel Assemblies
     Includes pre-assembled pad frames with upgraded drainage and anti-vortex improvements, along with new Chillcel pads. Ideal for full replacements or major refurbishments.




Cooler Model

Sheetmetal Kit P/N

Chillcel Assembly Kit P/N

RPA-OR 500

070711

070735

RPA-OR 320-450

070728

070742

Each kit contains sufficient parts for one cooler.



Fan Speed Reduction Components (RPA-OR 450 and 500 only)


All models will use the 112mm motor pulley (P/N 112X1SPA) with a new belt depending on discharge type:

Discharge Type

Belt P/N

Down Discharge

VBA78

Side Discharge

641072 (VBA78)

Top Discharge

042301 (VBA66)



Ordering Example

For a RPA450TC-OR cooler, the required parts are:

  • 1x 070728 (Sheetmetal Kit) or 1x 070742 (Chillcel Assembly Kit)
  • 1x 112X1SPA (Motor Pulley)
  • 1x 042301 (Top Discharge Belt)

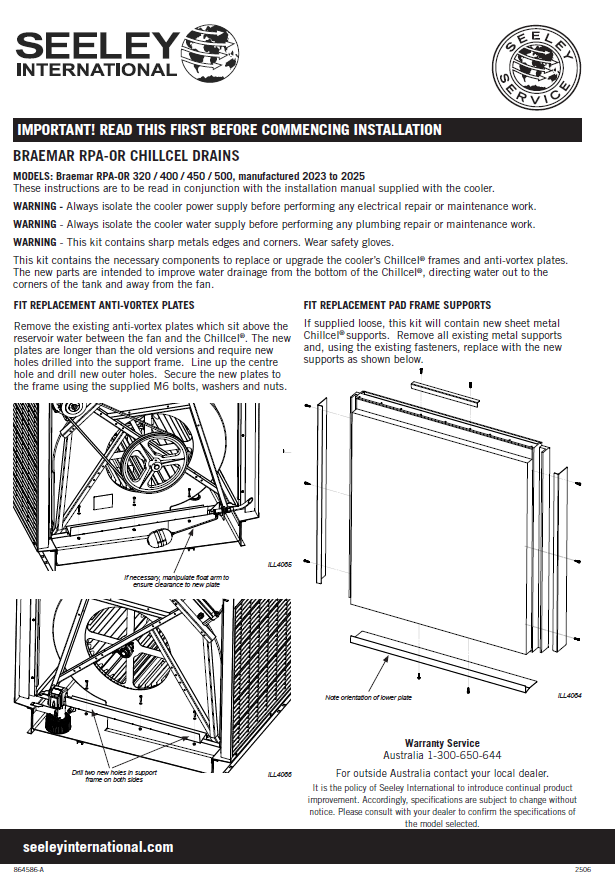

864586-A Lit RPA-OR Pad Frame Upgrade Pdf attached

Pad Frame Upgrade for Braemar RPA-OR Chillcel Drains (Models 320 / 400 / 450 / 500)


Applies to:
 Braemar RPA-OR 320 / 400 / 450 / 500 models manufactured between 2023 and 2025.


Safety Warnings

  • Electrical Safety: Always isolate the cooler power supply before performing any electrical repair or maintenance.
  • Plumbing Safety: Always isolate the cooler water supply before performing any plumbing repair or maintenance.
  • Sharp Edges: This kit contains sharp metal edges and corners. Wear safety gloves during installation.



Kit Contents

This upgrade kit includes:

  • Replacement Chillcel® pad frame supports
  • Replacement anti-vortex plates
  • M6 bolts, washers, and nuts



Installation Instructions

1. Fit Replacement Anti-Vortex Plates

  • Remove the existing anti-vortex plates located between the fan and the Chillcel®.
  • The new plates are longer and require new holes in the support frame.
  • Align the center hole, then drill new outer holes.
  • Secure the new plates using the supplied M6 bolts, washers, and nuts.
  • Ensure the float arm clears the new plate—adjust if necessary.

A drawing of a machine AI-generated content may be incorrect.A drawing of a large metal structure AI-generated content may be incorrect.

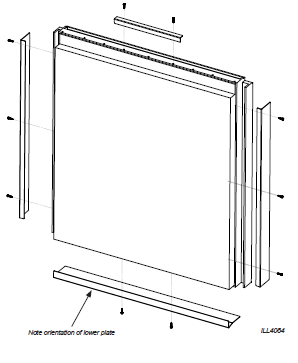

2. Fit Replacement Pad Frame Supports

  • If the supports are supplied loose, remove all existing metal supports.
  • Use the existing fasteners to install the new sheet metal supports.
  • Note the orientation of the lower plate.
  • Drill two new holes in the support frame on both sides as shown in the installation diagram.

A drawing of a white square AI-generated content may be incorrect.
