Reversing the Dominator Series 2 – External V2 Configuration


Click link to view YouTube Video - Reversing the Dominator Series 2 - External V2 Configuration


Important Warning: Risk of Incorrect Installation - E1 error high pressure failure

If the Dominator Series 2 unit is installed in reverse without following this procedure, there will be no airflow through the heat exchanger, causing the unit to fail on high pressure (E1 error).
The YouTube Video guide describes the process of reversing the coil to ensures correct airflow direction and system performance.

Overview

The Dominator Series 2 comes standard with Left-hand Return and Right-hand Supply (when facing the wall). This guide explains how to reverse the unit to Right-hand Return and Left-hand Supply.

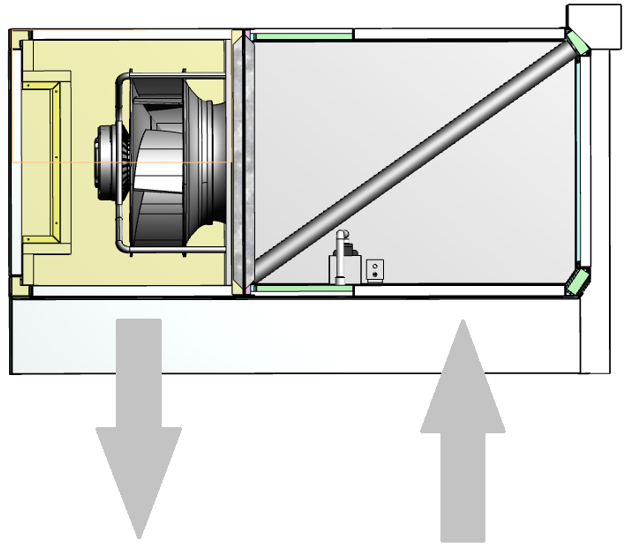

STANDARD CONFIGURATION - LEFT-HAND RETURN AND RIGHT-HAND SUPPLY (when facing the wall) - Airflow through the heat exchanger

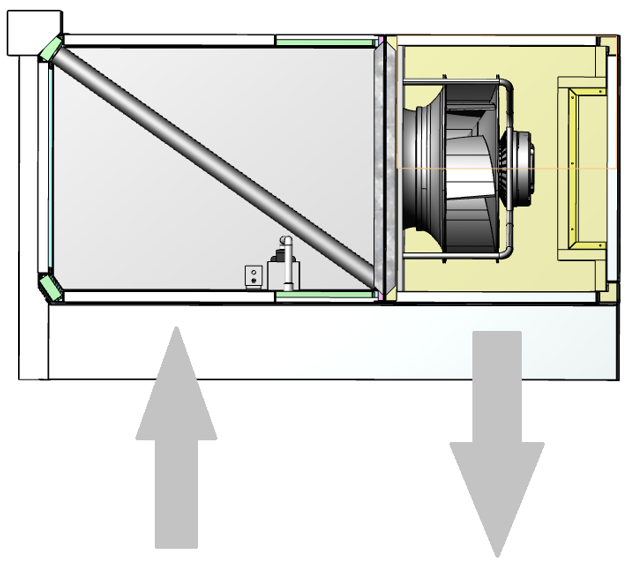

REVERSE CONFIGURATION - RIGHT-HAND RETURN AND LEFT-HAND SUPPLY (when facing the wall) - Airflow through the heat exchanger


Intended Audience

Installers and technical personnel responsible for configuring and installing Dominator Series 2 units.

Estimated Time

30–50 minutes
Recommended Team: 2 people

Required Tools

  • Screwdrivers / hand tools
  • Knife
  • Silicon

Click link to view YouTube Video - Reversing the Dominator Series 2 - External V2 Configuration

Procedure Steps

  1. Remove all screws around the top lid.
  2. Detach the electrical panel to access two hidden top lid screws.
  3. Remove all inlet and outlet panels.
  4. Remove flashing and pipe kit.
  5. Lift off the lid.
  6. Dismount the return air sensor from the coil.
  7. Remove the corner post and insulation panel.
  8. Cut silicon between the coil and mid-panel wall.
  9. Detach the coil sensor bracket.
  10. Lift the coil (opposite the flares), rotate to break silicon, and slide it out.
  11. Pop out the drain blank and remove excess silicon.
  12. Clean old liquid line drain tray hole and insert blank plug with silicon.
  13. Reinsert the coil and apply silicon before seating it.
  14. Reattach the return air sensor.
  15. Reattach the coil sensor.
  16. Remount corner posts.
  17. Remount the lid.
  18. Reattach panels in the desired configuration.
  19. Cut insulation edge and move offcut to the opposite side.
  20. Finalize and inspect the installation.

Additional Notes


  • Ensure all silicon seals are properly applied to prevent leaks and maintain airflow integrity.
