Technical Specifications - RPM - ES E259-A RPM Technical Data Sheet Metric AU2508
Attachments - 4-page Pdf attached,
- RPM Technical Data Sheet (PDF)
- Fan Curve & Performance Graphs
Product Overview: Seeley RPM Direct Evaporative Coolers
Models Covered: RPM5000, RPM6000, RPM8000
Discharge Options: Down (D), Side (S), Top (T)
Seeley RPM evaporative coolers deliver high-volume, 100% fresh, cool air—ideal for large space ventilation and cooling. Designed for durability and efficiency, these units are available in multiple configurations to suit varied installation needs.

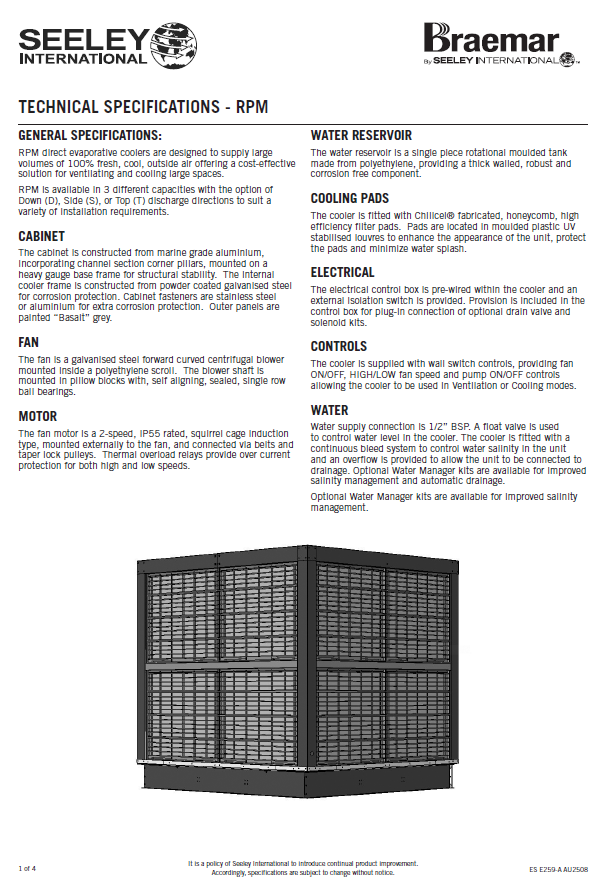

General Specifications
- Cabinet: Marine-grade aluminium with powder-coated galvanized steel frame. Painted “Basalt” grey.
- Fan: Forward-curved centrifugal blower in polyethylene scroll.
- Motor: 2-speed, IP55-rated induction motor with thermal overload protection.
- Cooling Pads: Chillcel® honeycomb pads in UV-stabilized plastic louvres.
- Water Reservoir: 55L polyethylene tank with corrosion resistance.
- Controls: Wall switch for fan ON/OFF, HIGH/LOW speed, and pump ON/OFF.
- Water Connection: ½” BSP inlet with float valve and continuous bleed system.

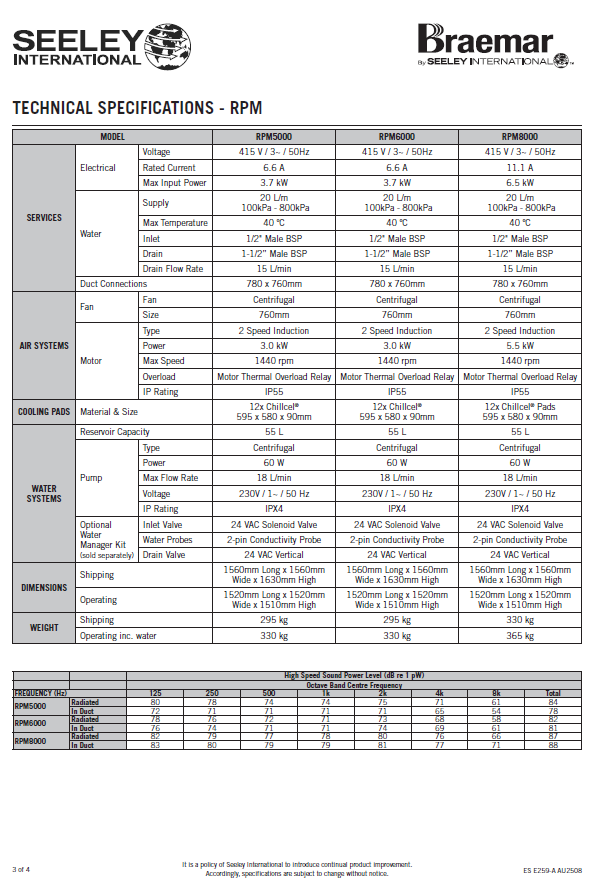

Electrical & Water Services
| Feature | RPM5000 / RPM6000 | RPM8000 |
|---|---|---|
| Voltage | 415V / 3~ / 50Hz | 415V / 3~ / 50Hz |
| Rated Current | 6.6 A | 11.1 A |
| Max Input Power | 3.7 kW | 6.5 kW |
| Water Supply | 20 L/min @ 100–800 kPa | |
| Max Water Temp | 40°C | 40°C |
| Inlet/Drain | ½” BSP / 1½” BSP | Same |
| Drain Flow Rate | 15 L/min | 15 L/min |
Air System & Performance
| Model | Max Airflow (L/s) | Max Speed (rpm) | Fan Type |
|---|---|---|---|
| RPM5000 | 4960 | 1440 | Centrifugal |
| RPM6000 | 6290 | 1440 | Centrifugal |
| RPM8000 | 7940 | 1440 | Centrifugal |
Fan Curve & Static Pressure Performance available in attached diagrams.
Sound Power Levels (High Speed)
| Model | Radiated (dB) | In Duct (dB) |
|---|---|---|
| RPM5000 | 84 | 78 |
| RPM6000 | 82 | 81 |
| RPM8000 | 87 | 88 |

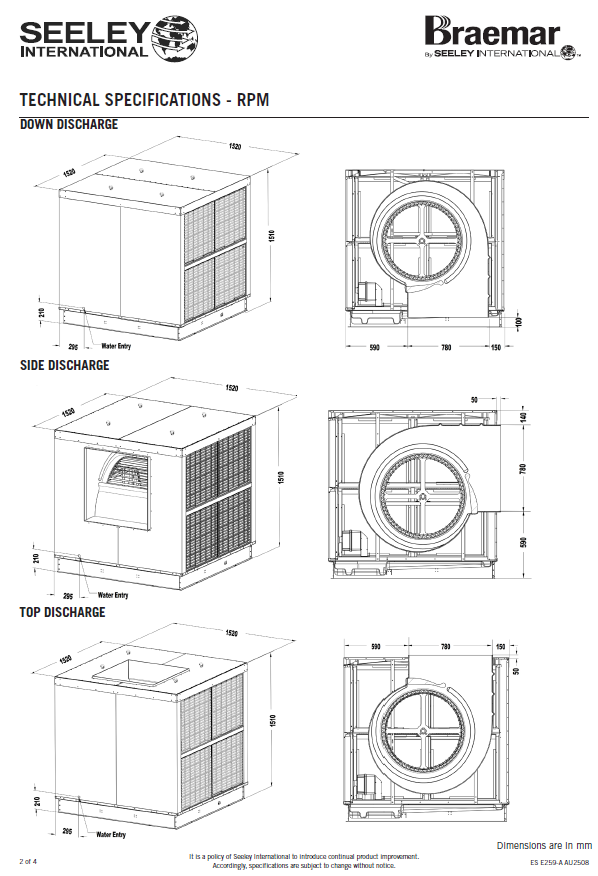

Dimensions & Weight
| Model | Operating Size (mm) | Shipping Weight (kg) | Operating Weight (kg) |
|---|---|---|---|
| All Models | 1520 x 1520 x 1510 | 295–330 | 330–365 |
Optional Water Manager Kit
- Inlet Valve: 24 VAC Solenoid
- Water Probes: 2-pin Conductivity
- Drain Valve: 24 VAC Vertical
Installation Notes
- Duct Connection: 780 x 760 mm
- Discharge Options: Down, Side, Top
- External Isolation Switch included
- Drainage Connection recommended
