XE71 Wall Controller Changing Language KDHV and Dominator

Applies to: Braemar XE71 Wall Controller
Models: XE71-42G-A and compatible variants
Category: Controller Settings
Last Updated: September 2025


Click to view YouTube Video XE71 Wall Control Setting Language



Summary

To change the language on your Braemar XE71 wall controller:

  1. Turn the controller Off, then On.
  2. Press Menu/OK.
  3. Navigate to the Function tab.
  4. Scroll down to Language.
  5. Select English and confirm.

Step-by-Step Guide

1. Start from the Home Screen

  • Press the ON/OFF button to turn the controller Off, then again to turn it On.

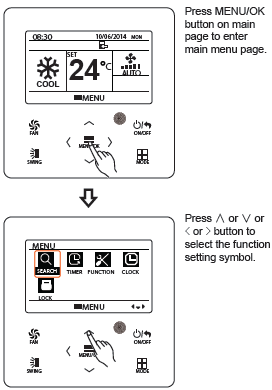

2. Enter the Menu

  • Press the MENU/OK button to access the main menu.

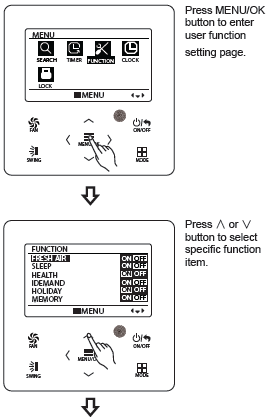

3. Navigate to the Function Tab

  • Use the → (right arrow) to scroll across the top row.
  • Stop when the Function spanner icon is highlighted.
  • Press MENU/OK to enter the Function tab.

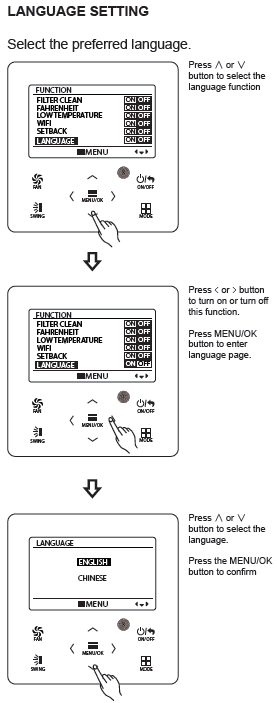

4. Scroll to Language Settings

  • Use the ↓ (down arrow) to scroll to the bottom of the list (approx. 17 items).
  • Select Language and press MENU/OK.

5. Select English

  • Use the ↑ (up arrow) to scroll to the top of the language list.
  • Highlight English.
  • Press MENU/OK to confirm.

6. Exit Settings

  • Press the On/Off/Back button to return to the home screen.
  • The controller interface will now display in English.

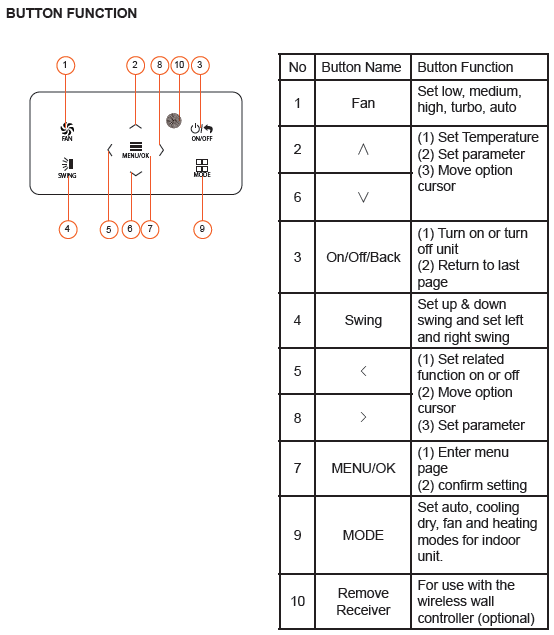

Simple Steps - How to Change Settings:

  1. Press the MENU/OK button on the main screen to open the menu.
  2. Use the arrow buttons (∧, ∨, <, >) to find the settings icon.
  3. Press MENU/OK again to enter the settings.
  4. Use ∧ or ∨ to scroll through the options.
  5. Use < or > to turn a setting on or off.
  6. If a setting is greyed out, it means it can't be changed.
  7. To exit push On/Off/Back button


Troubleshooting Tips

Language Option Not Visible

  • Ensure the controller is powered On and you're in the Function tab.
  • If the Language option is missing, the firmware may not support multi-language settings.

Controller Not Responding

  • Check if the controller is properly powered.
  • Try resetting the controller by turning it Off and On again.
  • If buttons are unresponsive, inspect for Key Lock settings under the Lock tab.

Language Change Not Saved

  • Ensure you press MENU/OK after selecting English.
  • If the controller reverts to the previous language, try the process again and confirm each step.
