Relocating the external pump to opposite side of unit if required – Dominator Series V2
⚠️ Safety Notice – Reverse Cycle Air Conditioners
This equipment must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.
Before commencing work, complete a task-specific risk assessment and ensure electrical isolation procedures, safe access, adequate service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.
Particular care must be taken when working around electrical systems, refrigerant circuits, moving parts, roof spaces, ceiling spaces, confined spaces and working-at-heights hazards where applicable.
Do not proceed if safe access, required clearances, confined space risks or appropriate safety controls cannot be achieved and maintained.
Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.
Applies to:
Dominator Series V2 units with external pump configuration.
Issue:
When relocating the pump to the opposite side of the unit, installers may encounter misalignment issues with the outlet and mounting bracket.
Summary
Relocating the pump requires flipping the pump mounting bracket, which is riveted to the outlet connection. This process involves drilling out existing rivets and re-securing the bracket in the mirrored position.
Step-by-Step Instructions
1. Remove Existing Pump and Bracket
Disconnect the pump from the outlet and mounting bracket.
Drill out the rivets securing the white outlet connection to the bracket.
2. Flip the Bracket

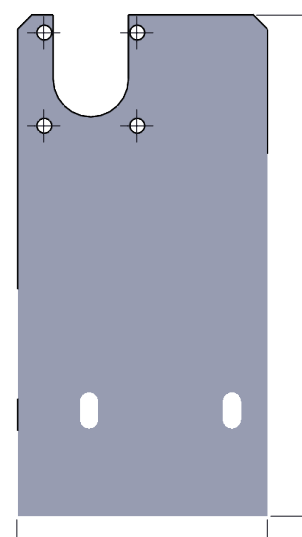

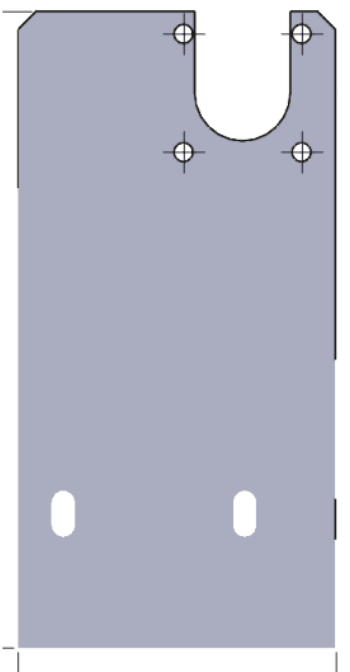

Mirror the bracket to the opposite side of the unit.
Align the bracket with the outlet connection in the new position.
FACTORY RELOCATED
3. Secure the Bracket
Re-rivet the bracket to the outlet connection using appropriate rivets.
Alternative: Screws may be used if a riveter is unavailable but ensure they are corrosion-resistant and securely fastened.
4. Reinstall the Pump
Mount the pump onto the flipped bracket.
Ensure the outlet aligns correctly with the external plumbing.
Tools Required
Drill
Rivet gun (or corrosion-resistant screws)
Rivets (or screws)
Screwdriver
? Notes
This procedure is not factory-standard and may require minor adjustments depending on installation conditions.
