RPA and RPB Fan cut out template & instruction Kit - replacing a blower / fan wheel 631349-A
⚠️ Safety Notice – Commercial Evaporative Cooling Products
This equipment must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.
Before commencing work, complete a task-specific risk assessment and ensure safe roof access, fall protection requirements, electrical isolation procedures, service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.
Particular care must be taken when working at heights, in roof spaces, ceiling spaces and other restricted access areas. Additional consideration must be given to confined working conditions, electrical hazards, moving parts, water systems, wet surfaces, manual handling risks and weather conditions.
Do not proceed if safe access, weather conditions, required clearances, confined space risks or appropriate safety controls cannot be achieved and maintained.
Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.

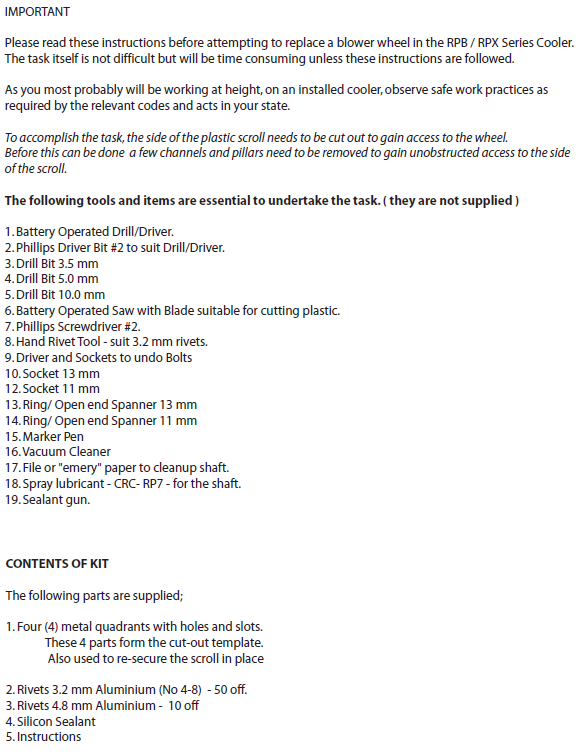

Instructions included in fan cut out template kits:
631325 - Kit Blower wheel replace medium RPA/RPB suits wheel 111455
631363 - Kit Blower wheel replace large RPA/RPB suits wheel 619071
631646 - Kit Blower wheel replace 400/500
631950 - Kit Blower wheel replace RPA600
12-page Pdf attached,
