This document describes the connection and configuration settings required to connect the Advantage Air (My Air and E Zone) third party controller to Braemar KDHA/KCHA Ducted units.
⚠️ Safety Notice – Reverse Cycle Air Conditioners
This equipment must only be installed, commissioned, serviced and repaired by suitably qualified and licensed personnel.
Before commencing work, complete a task-specific risk assessment and ensure electrical isolation procedures, safe access, adequate service clearances and appropriate PPE have been considered. All work must comply with applicable regulations, standards and manufacturer requirements.
Particular care must be taken when working around electrical systems, refrigerant circuits, moving parts, roof spaces, ceiling spaces, confined spaces and working-at-heights hazards where applicable.
Do not proceed if safe access, required clearances, confined space risks or appropriate safety controls cannot be achieved and maintained.
Safety takes priority over diagnosis, repairs, installation schedules and customer expectations. If the task cannot be completed safely, it must not proceed until the risks have been adequately controlled.

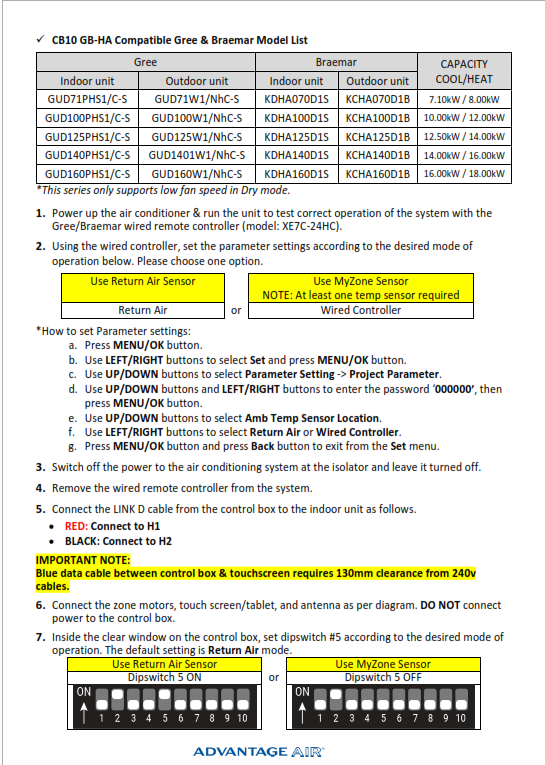

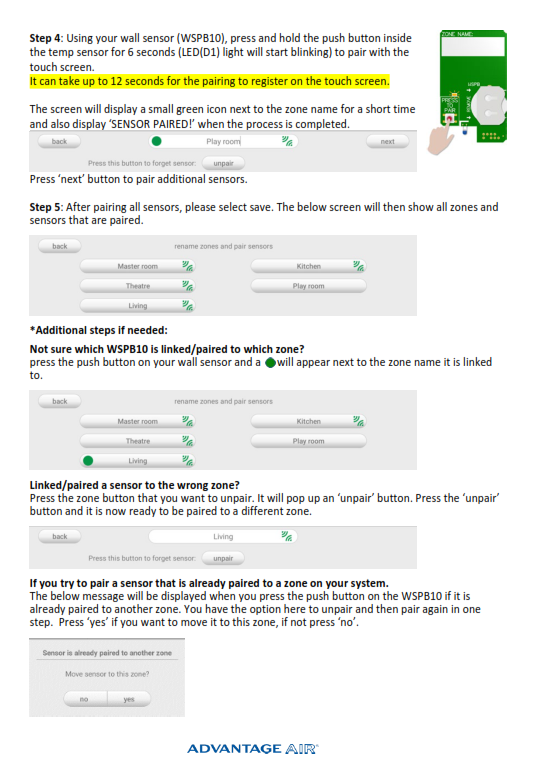

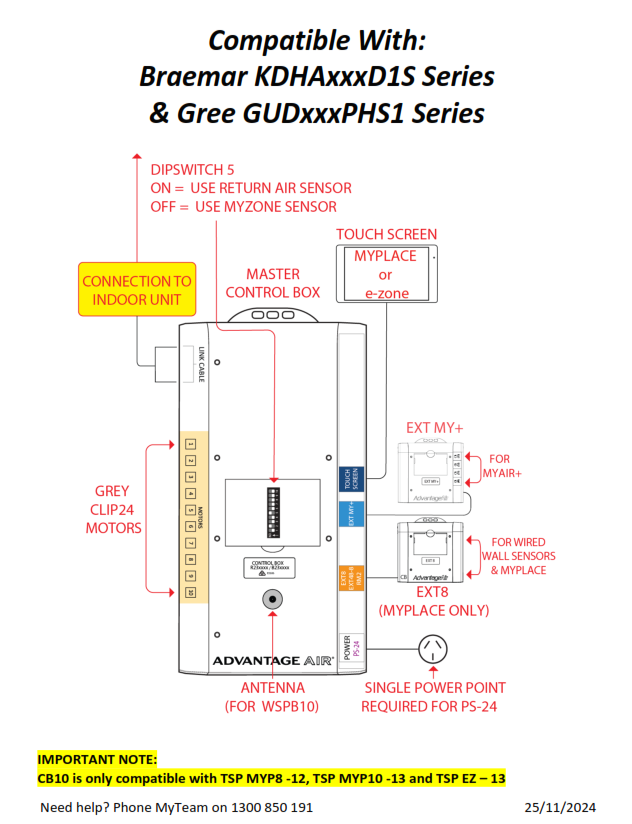

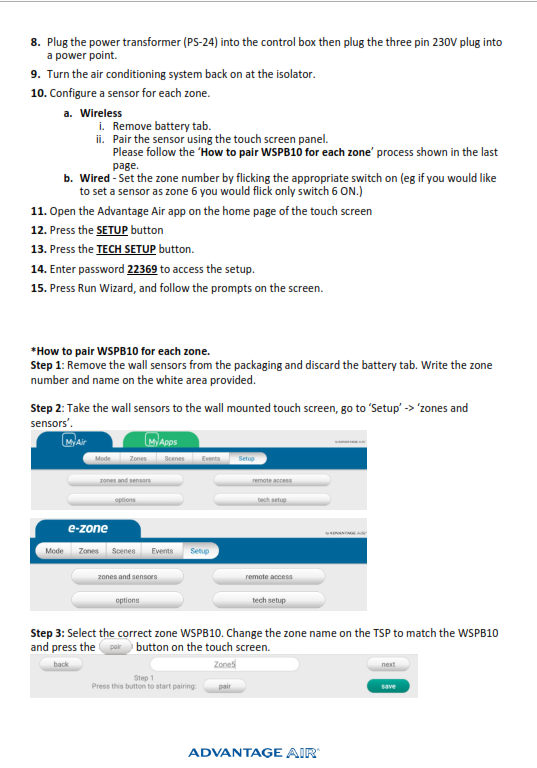

IMPORTANT NOTE: Dipswitch 5 on the Advantage Air box (use return air sensor or use My zone air Sensor) AND Braemar wall controller setting in step 2 below (Use return air sensor or use My Zone air sensor) MUST both be set to the same setting. If both are set to different settings temperature control will not function correctly
